4-51
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition

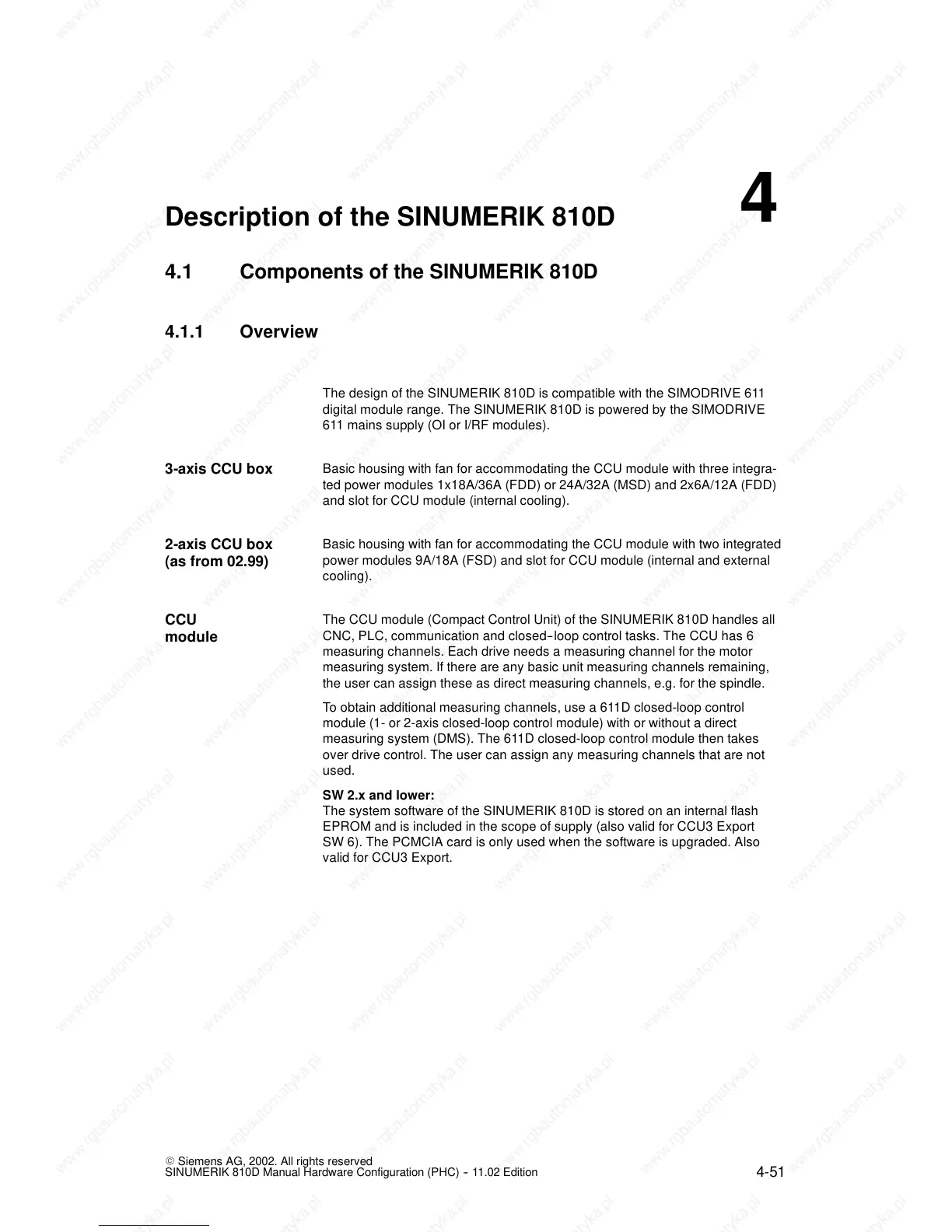

Description of the SINUMERIK 810D
4.1 Components of the SINUMERIK 810D
4.1.1 Overview
The design of the SINUMERIK 810D is compatible with the SIMODRIVE 611
digital module range. The SINUMERIK 810D is powered by the SIMODRIVE
611 mains supply (OI or I/RF modules).
Basic housing with fan for accommodating the CCU module with three integra-
ted power modules 1x18A/36A (FDD) or 24A/32A (MSD) and 2x6A/12A (FDD)
and slot for CCU module (internal cooling).
Basic housing with fan for a ccommodating the CCU module with two integrated
power modules 9A/18A (FSD) and slot for CCU module (internal and external
cooling).
The CCU module (Compact Control Unit) of the SINUMERIK 810D handles all
CNC, PLC, communication and closed--loop control tasks. The CCU has 6
measuring channels. Each drive needs a measuring channel for the motor
measuring system. If there are any basic unit measuring channels remaining,
the user can assign these as direct measuring channels, e.g. for the spindle.
To obtain additional measuring channels, use a 611D closed-loop control
module (1- or 2-axis closed-loop control module) with or without a d irect
measuring system (DMS). The 611D closed-loop control module then takes
over drive control. The user can assign any measuring channels that are not
used.
SW 2.x and lower:
The system software of the SINUMERIK 810D is stored on an internal flash
EPROM and is included in the scope of supply (also valid for CCU3 Export
SW 6). The PCMCIA card is only used when the software is upgraded. Also
valid for CCU3 Export.
3-axis CCU box
2-axis CCU box
(as from 02.99)
CCU
module
4
