12.95
8.6DMP compact module 1O analog (6FC5 111-0CA05-0AA0)
8-115
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition

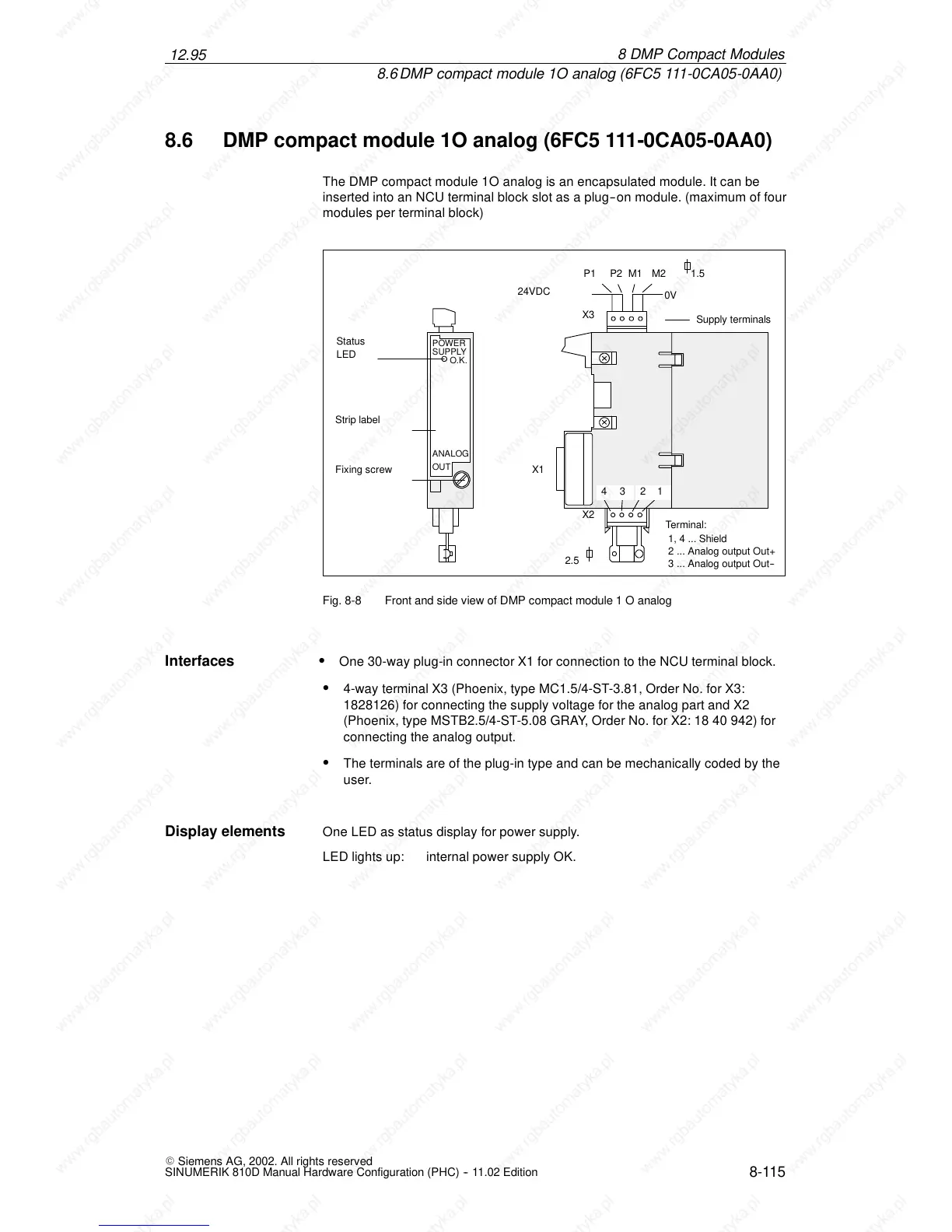

8.6 DMP compact module 1O analog (6FC5 111-0CA05-0AA0)
The DMP compact module 1O analog is an encapsulated module. It can be
inserted into an NCU terminal block slot as a plug--on module. (maximum of four
modules per terminal block)
24VDC
1, 4 ... Shield
2 ... Analog output Out+
X1
Status
LED
Fixing screw
Strip label
POWER
SUPPLY
O.K.
ANALOG
OUT
Supply terminals
X3
X2
0V
2.5
1.5
1234
P1 P2 M1 M2
Terminal:
3 ... Analog output Out--
Fig. 8-8 Front and side view of DMP compact module 1 O analog
S One 30-way plug-in connector X1 for connection to the NCU terminal block.
S 4-way terminal X3 (Phoenix, type MC1.5/4-ST-3.81, Order No. for X3:
1828126) for connecting the supply voltage for the analog part and X2
(Phoenix, type MSTB2.5/4-ST-5.08 GRAY, Order No. for X2: 18 40 942) for
connecting the analog output.
S The terminals are of the plug-in type and can be mechanically coded by the
user.
One LED as status display for power supply.
LED lights up: internal power supply OK.
Interfaces
Display elements
