12.95

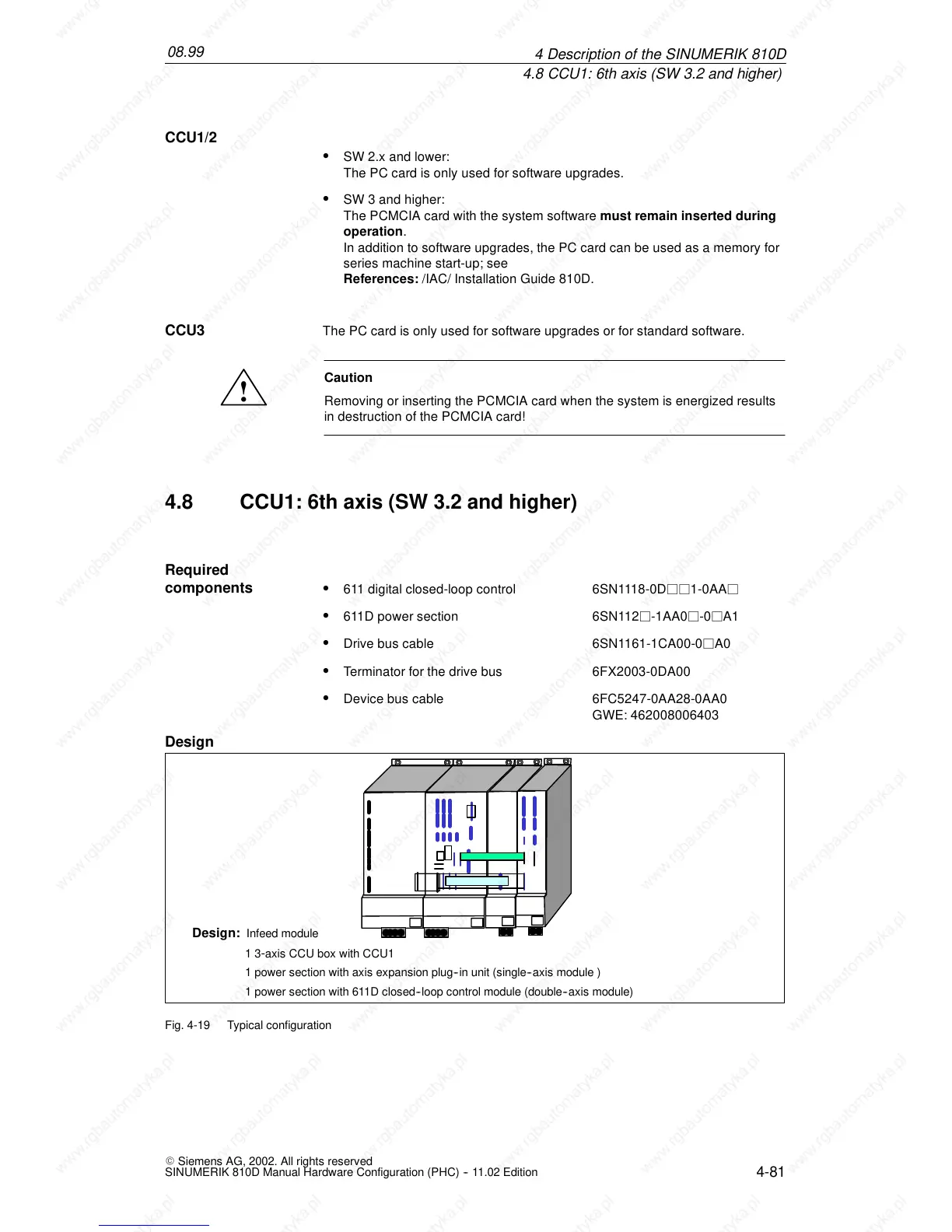

4.8 CCU1: 6th axis (SW 3.2 and higher)
4-81
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
S SW 2.x and lower:
The PC card is only used for software upgrades.
S SW 3 and higher:
The PCMCIA card with the system software must remain inserted during
operation.
In addition to software upgrades, the PC card can be used as a memory for
series machine start-up; see
References: /IAC/ Installation Guide 810D.
The PC card is only used for software upgrades or for standard software.
!
Caution
Removing or inserting the PCMCIA card when the system is energized results
in destruction of the PCMCIA card!
4.8 CCU1: 6th axis (SW 3.2 and higher)
S 611 digital closed-loop control 6SN1118-0Djj1-0AAj
S 611D power section 6SN112j-1AA0j-0jA1
S Drive bus cable 6SN1161-1CA00-0jA0
S Terminator for the drive bus 6FX2003-0DA00
S Device bus cable 6FC5247-0AA28-0AA0
GWE: 462008006403
Infeed moduleDesign:
13-axis CCU box with CCU1
1 power section with axis expansion plug--in unit (single--axis module )
1 power section with 611D closed--loop control module (double--axis module)
Fig. 4-19 Typical configuration
CCU1/2
CCU3
Required
components
Design
4De
