12.95
8.2 DMP compact module 16O (6FC5 111-0CA02-0AA1)
8-105
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
8.2 DMP compact module 16O (6FC5 111-0CA02-0AA1)
The DMP compact module 16O is an encapsulated module. It can be inserted
into an NCU terminal block slot as a plug-on module.
PM7 6 5
Outputs
OUT 7 ... OUT 0
HIGH byte
X1
43210
0 1234 567MP
Status
LEDs
Fixing screw
Strip label
Outputs
OUT 0 ... OUT 7
LOW byte
0V
X3
X2
0
.
.
7
X3
X2
LOW byte
0
.
.
7
HIGH byte
24V
LOAD
DC 1.5
0V
24V
LOAD
DC 1.5

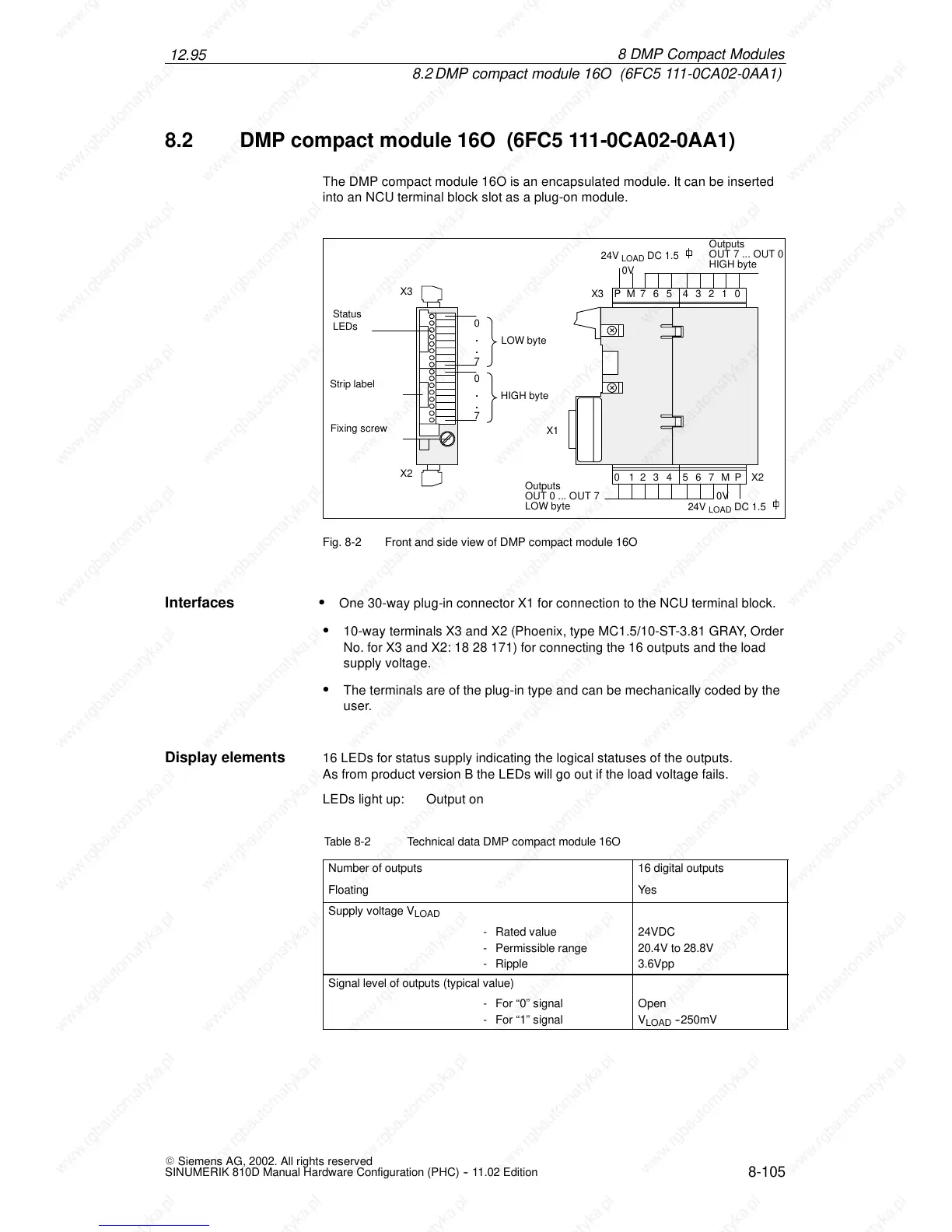

Fig. 8-2 Front and side view of DMP compact module 16O
S One 30-way plug-in connector X1 for connection to the NCU terminal block.
S 10-way terminals X3 and X2 (Phoenix, type MC1.5/10-ST-3.81 GRAY, Order
No. for X3 and X2: 18 28 171) for connecting the 16 outputs and the load
supply voltage.
S The terminals are of the plug-in type and can be mechanically coded by the
user.
16 LEDs for status supply indicating the logical statuses of the outputs.
As from product version B the LEDs will go out if the load voltage fails.
LEDs light up: Output on
Table 8-2 Technical data DMP compact module 16O
Number of outputs
16 digital outputs
Floating Yes
Supply voltage V
LOAD
- Rated value 24VDC
- Permissible range 20.4V to 28.8V
- Ripple 3.6Vpp
Signal level of outputs (typical value)
- For “0” signal Open
- For “1” signal V
LOAD
--250mV
Interfaces
Display elements
8
DMP Com
p
a
ct Modu
l
e
s
