12.95

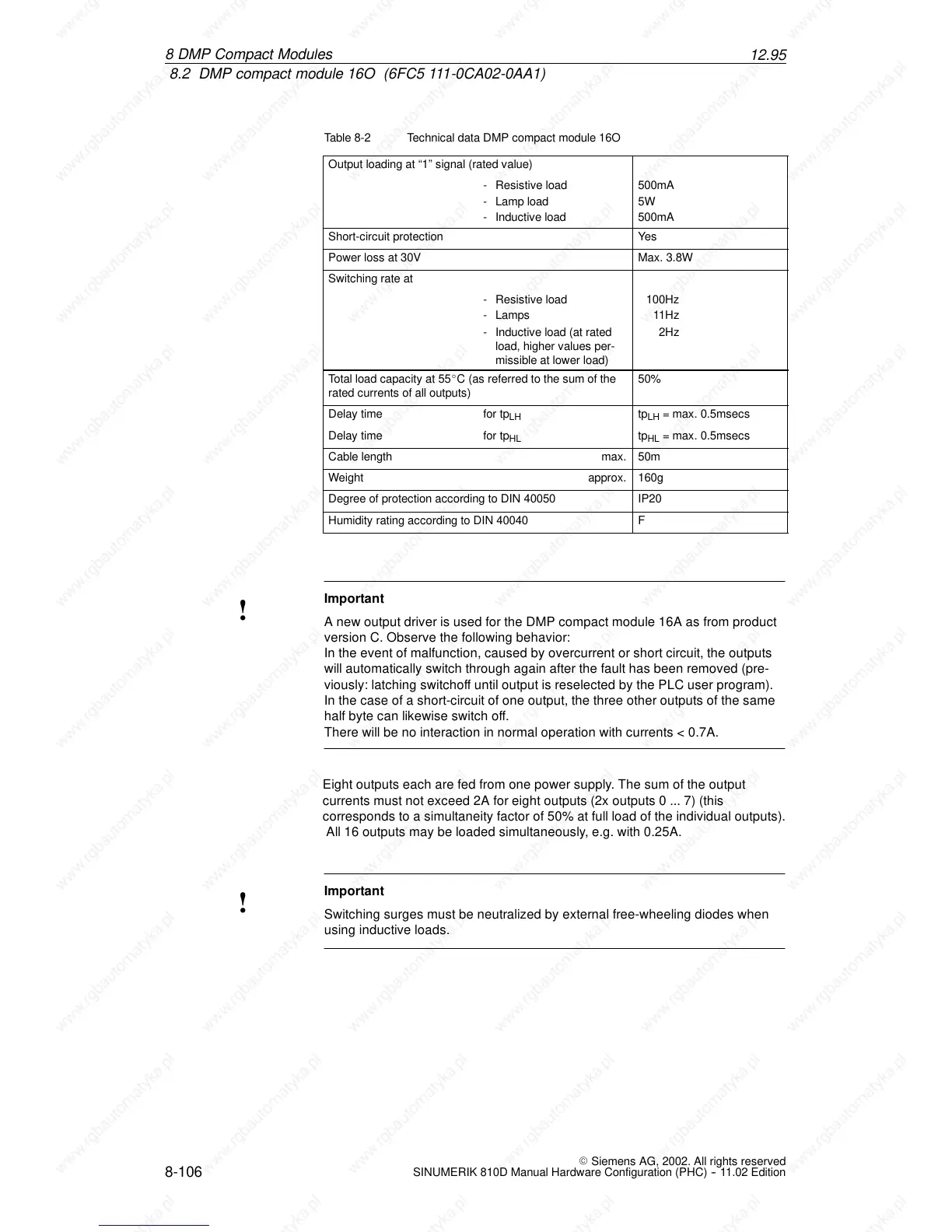

8.2 DMP compact module 16O (6FC5 111-0CA02-0AA1)
8-106
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
Table 8-2 Technical data DMP compact module 16O
Output loading at “1” signal (rated value)
- Resistive load 500mA
- Lamp load 5W
- Inductive load 500mA
Short-circuit protection Yes
Power loss at 30V Max. 3.8W
Switching rate at
- Resistive load 100Hz
- Lamps 11Hz
- Inductive load (at rated
load, higher values per-
missible at lower load)
2Hz
Total load capacity at 55_C (as referred to the sum of the
rated currents of all outputs)
50%
Delay time for tp
LH
tp
LH
= max. 0.5msecs
Delay time for tp
HL
tp
HL
= max. 0.5msecs
Cable length max. 50m
Weight approx. 160g
Degree of protection according to DIN 40050 IP20
Humidity rating according to DIN 40040 F
!
Important
A new output driver is used for the DMP c ompact module 16A as from product
version C. Observe the following behavior:
In the event of malfunction, caused by overcurrent or short circuit, the outputs
will automatically switch through again after the fault has been removed (pre-
viously: latching switchoff until output is reselected by the PLC user program).
In the c ase of a short-circuit of one output, the three other outputs of the same
half byte can likewise switch off.
There will be no interaction in normal operation with currents < 0.7A.
Eight outputs each are fed from one power supply. The sum of the output
currents must not exceed 2A for eight outputs (2x outputs 0 ... 7) (this
corresponds to a simultaneity factor of 50% at full load of the individual outputs).
All 16 outputs may be loaded simultaneously, e.g. with 0.25A.
!
Important
Switching surges must be neutralized by external free-wheeling diodes when
using inductive loads.
