3.2 Installing the SINUMERIK 810D
3-42
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition

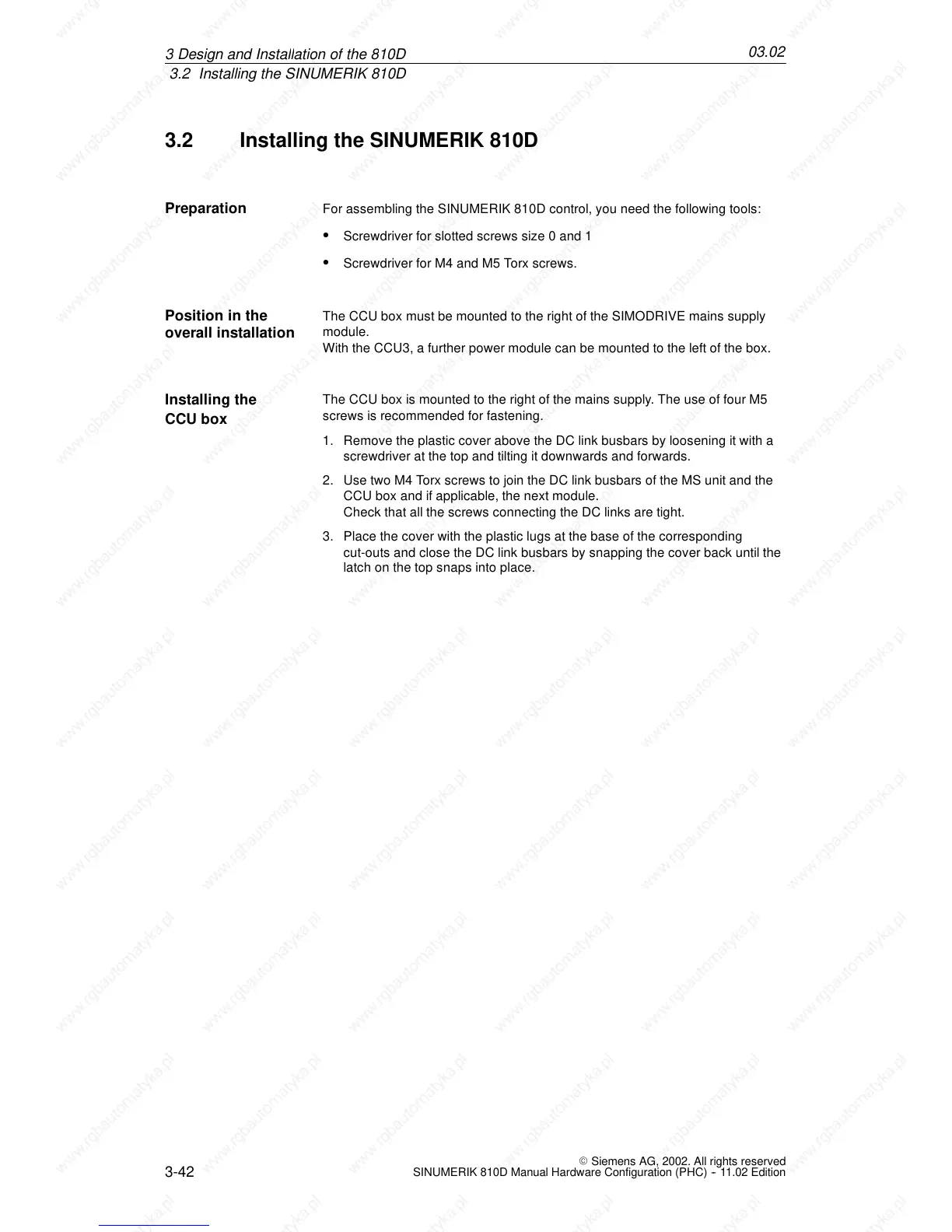

3.2 Installing the SINUMERIK 810D
For assembling the SINUMERIK 810D control, you need the following tools:
S Screwdriver for slotted screws size 0 and 1
S Screwdriver for M4 and M5 Torx screws.
The CCU box must be mounted to the right of the SIMODRIVE mains supply
module.
With the CCU3, a further power module can be mounted to the left of the box.
The CCU box is mounted to the right of the mains supply. The use of four M5
screws is recommended for fastening.
1. Remove the plastic cover above the DC link busbars by loosening it with a
screwdriver at the top and tilting it downwards and forwards.
2. Use two M4 Torx screws to join the DC link busbars of the MS unit and the
CCU box and if applicable, the next module.
Check that all the screws connecting the DC links are tight.
3. Place the cover with the plastic lugs at the base of the corresponding
cut-outs and close the DC link busbars by snapping the cover back until the
latch on the top snaps into place.
