12.95
3.2 Installing the SINUMERIK 810D
3-43
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
SIMODRIVE
SIEMENS
Axis expansion
plug-in unit
Axis expansion plug-in unit, left
MS
(I/RF or UPS)
PS
PS810D
(CCU3)

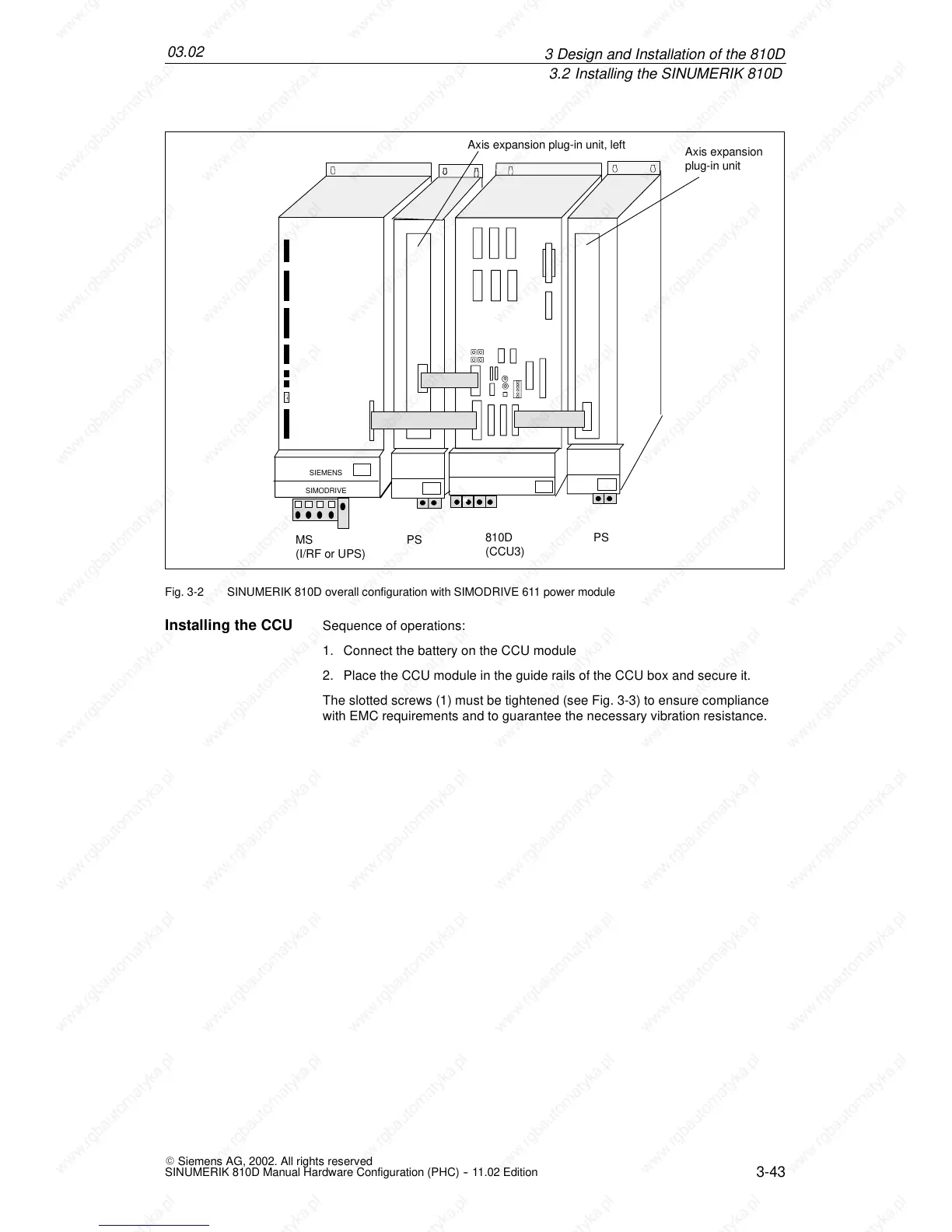

Fig. 3-2 SINUMERIK 810D overall configuration with SIMODRIVE 611 power module
Sequence of operations:
1. Connect the battery on the CCU module
2. Place the CCU module in the guide rails of the CCU box and secure it.
The slotted screws (1) must be tightened (see Fig. 3-3) to ensure compliance
with EMC requirements and to guarantee the necessary vibration resistance.
Installing the CCU
3
De
s
i
g
n
a
nd In
s
t
a
l
l
a
tion o
f
the
8
10D
03.02
