3.2 Installing the SINUMERIK 810D
3-44
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
DC link
busbars
1
1
CCU3
CCU box
Safety earth terminal
Battery
--X307

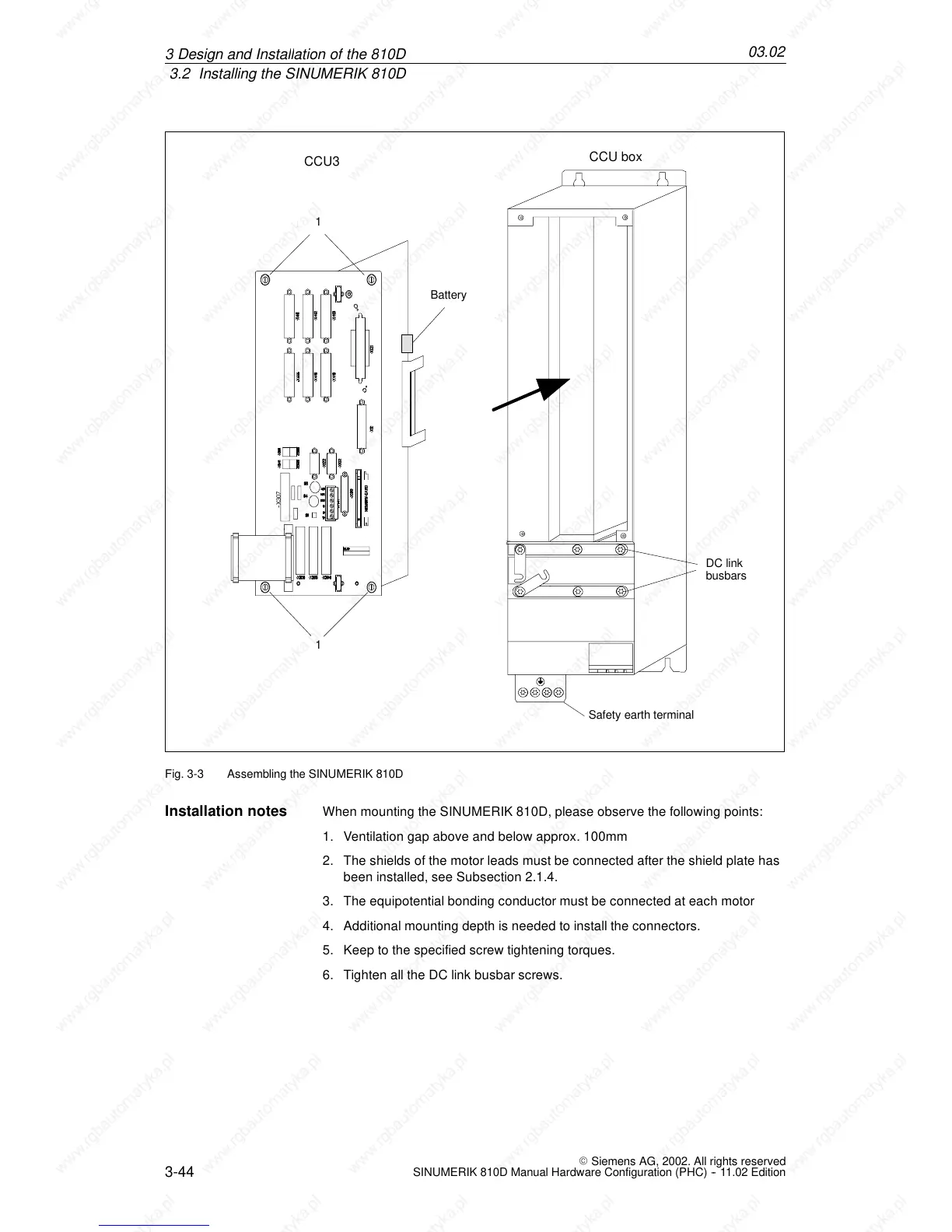

Fig. 3-3 Assembling the SINUMERIK 810D
When mounting the SINUMERIK 810D, please observe the following points:
1. Ventilation gap above and below approx. 100mm
2. The shields of the motor leads must be connected after the shield plate has
been installed, see Subsection 2.1.4.
3. The equipotential bonding conductor must be connected at each motor
4. Additional mounting depth is needed to install the connectors.
5. Keep to the specified screw tightening torques.
6. Tighten all the DC link busbar screws.
Installation notes
3
De
s
i
g
n
a
nd In
s
t
a
l
l
a
tion o
f
the
8
10D
03.02
