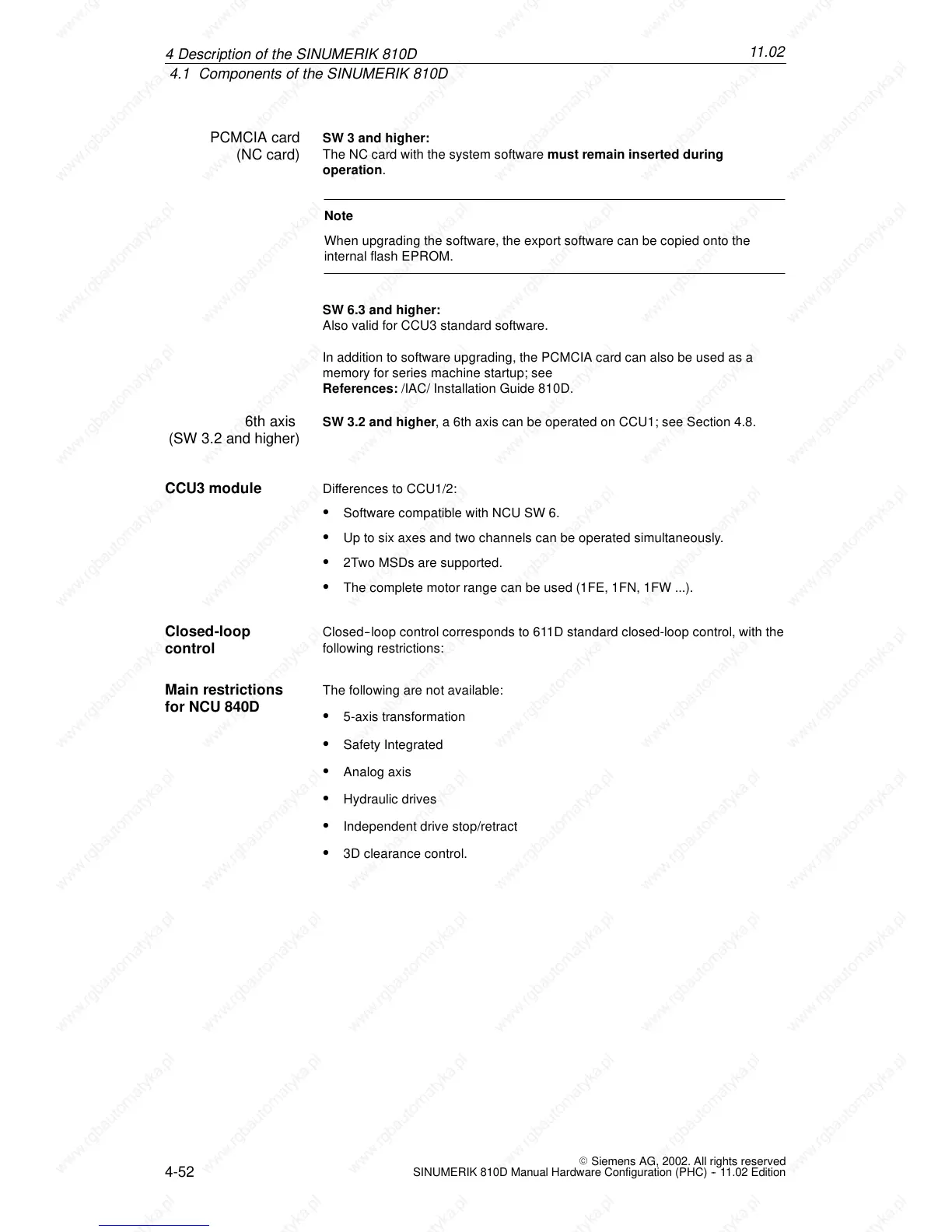

4.1 Components of the SINUMERIK 810D
4-52
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
SW 3 and higher:
The NC card with the system software must remain inserted during
operation.
Note
When upgrading the software, the export software can be copied onto the
internal flash EPROM.
SW 6.3 and higher:
Also valid for CCU3 standard software.
In addition to software upgrading, the PCMCIA card can also be used as a
memory for series machine startup; see
References: /IAC/ Installation Guide 810D.
SW 3.2 and higher, a 6th axis can be operated on CCU1; see Section 4.8.
Differences to CCU1/2:
S Software compatible with NCU SW 6.
S Up to six axes and two channels can be operated simultaneously.
S 2Two MSDs are supported.
S The complete motor range can be used (1FE, 1FN, 1FW ...).
Closed--loop control corresponds to 611D standard closed-loop control, with the
following restrictions:
The following are not available:
S 5-axis transformation
S Safety Integrated
S Analog axis
S Hydraulic drives
S Independent drive stop/retract
S 3D clearance control.
PCMCIA card
(NC card)
6th axis
(SW 3.2 and higher)
CCU3 module
Closed-loop
control
Main restrictions
for NCU 840D
4De
s
c
r
i
p
tion o
f
the SINUM
E
RI
K
8
10D
11.02
