12.95
3.2 Installing the SINUMERIK 810D
3-46
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
(is included in preassembled
SIEMENS motor lead)
Tube clamp for shield
e.g. made by Rasmussen GmbH
D--63461 Maintal
P.O. Box 1149
Phone:Phone: ++49-(0)6181-403-0
Fax: ++49-(0)6181-403-210
Important! The shield
attachment is no pull--relief
Shielding plate
Screw M2.5x8
During module
installation, keep to
the tightening torque !!
M3 : 0.8Nm
M4 : 1.8Nm
M5 : 3Nm
M6 : 6Nm
149.5
90
24.8
100
480
150
24.85
8
466
100
View without
cover plate
M3
M4
¦ 0.2
¦ 0.2
¦ 0.2
¦ 0.2
¦ 0.2
0.3
+
100
100 443
20
57
77
110
232
289
130
free space for cooling air
free space for cooling air
Seal
Heat sink
Caution: Place shielded cables entering
the control cabinet as close
as possible to the cabinet!

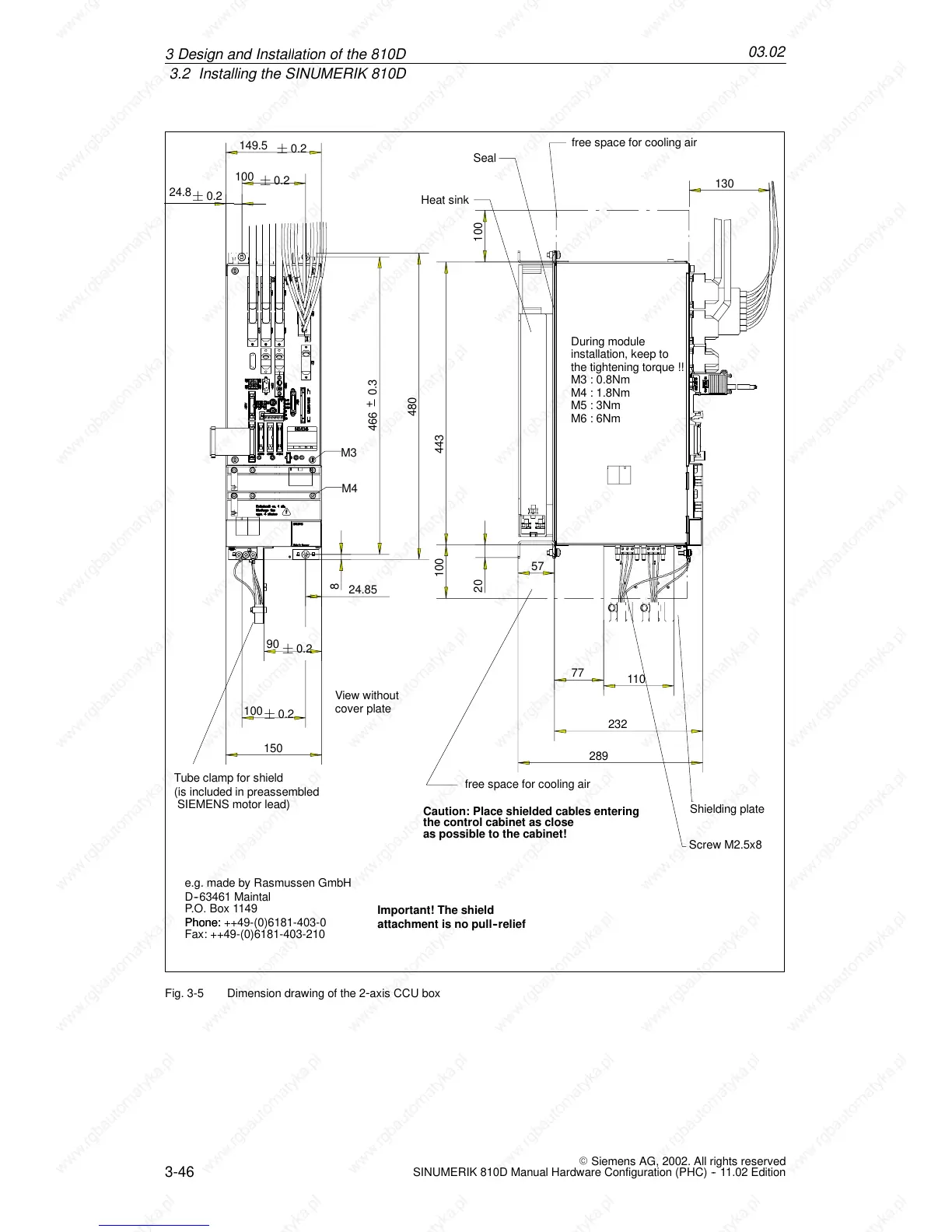

Fig. 3-5 Dimension drawing of the 2
-axis CCU box
3
De
s
i
g
n
a
nd In
s
t
a
l
l
a
tion o
f
the
8
10D
03.02
