12.95

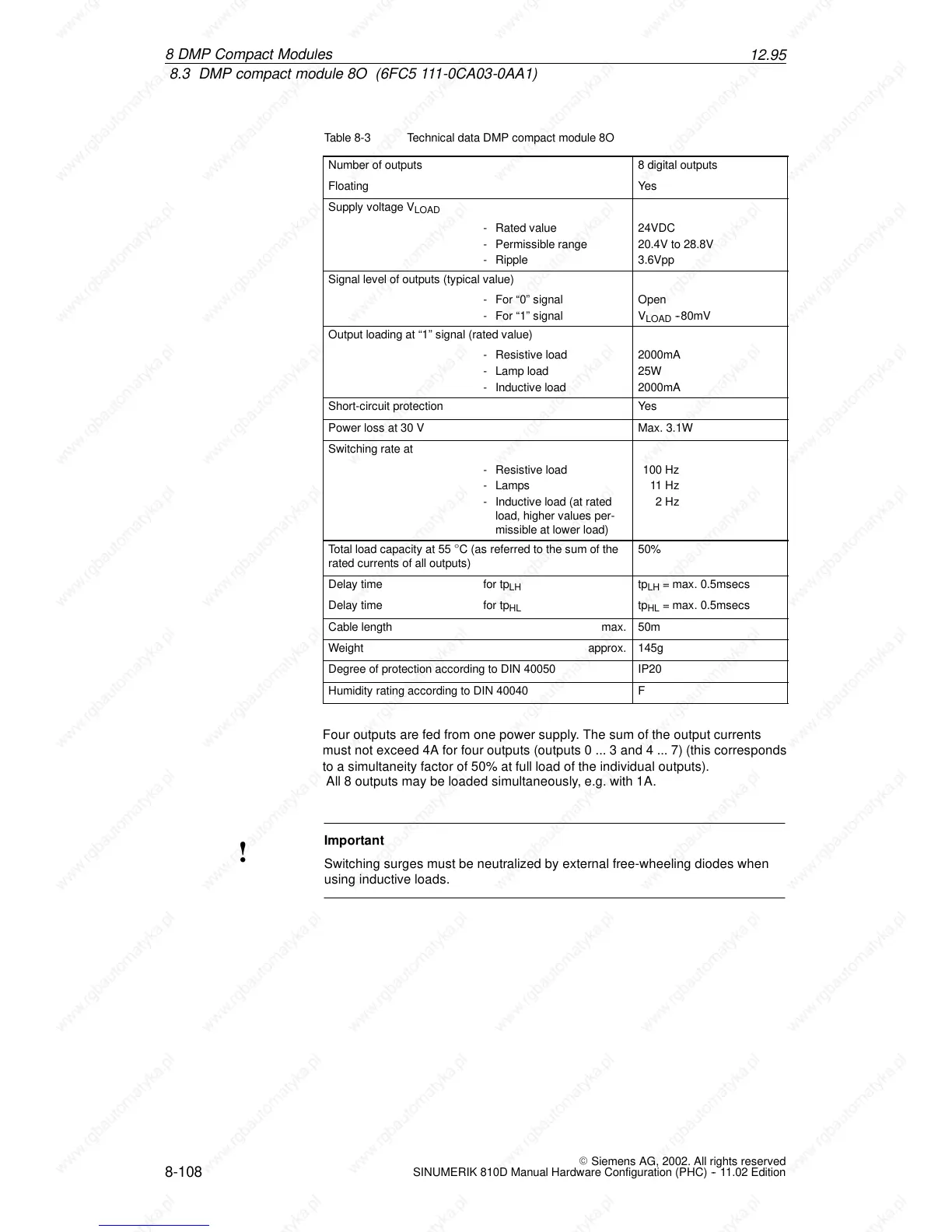

8.3 DMP compact module 8O (6FC5 111-0CA03-0AA1)
8-108
E Siemens AG, 2002. All rights reserved
SINUMERIK 810D Manual Hardware Configuration (PHC) -- 11.02 Edition
Table 8-3 Technical data DMP compact module 8O
Number of outputs
8 digital outputs
Floating Yes
Supply voltage V
LOAD
- Rated value 24VDC
- Permissible range 20.4V to 28.8V
- Ripple 3.6Vpp
Signal level of outputs (typical value)
- For “0” signal Open
- For “1” signal V
LOAD
--80mV
Output loading at “1” signal (rated value)
- Resistive load 2000mA
- Lamp load 25W
- Inductive load 2000mA
Short-circuit protection Yes
Power loss at 30 V Max. 3.1W
Switching rate at
- Resistive load 100 Hz
- Lamps 11 Hz
- Inductive load (at rated
load, higher values per-
missible at lower load)
2Hz
Total load capacity at 55
¥
C (as referred to the sum of the
rated currents of all outputs)
50%
Delay time for tp
LH
tp
LH
= max. 0.5msecs
Delay time for tp
HL
tp
HL
= max. 0.5msecs
Cable length max. 50m
Weight approx. 145g
Degree of protection according to DIN 40050 IP20
Humidity rating according to DIN 40040 F
Four outputs are fed from one power supply. The sum of the output currents
must not exceed 4A for four outputs (outputs 0 ... 3 and 4 ... 7) (this corresponds
to a simultaneity factor of 50% at full load of the individual outputs).
All 8 outputs may be loaded simultaneously, e.g. with 1A.
!
Important
Switching surges must be neutralized by external free-wheeling diodes when
using inductive loads.
