Example: Turning







3
33
3
;
=

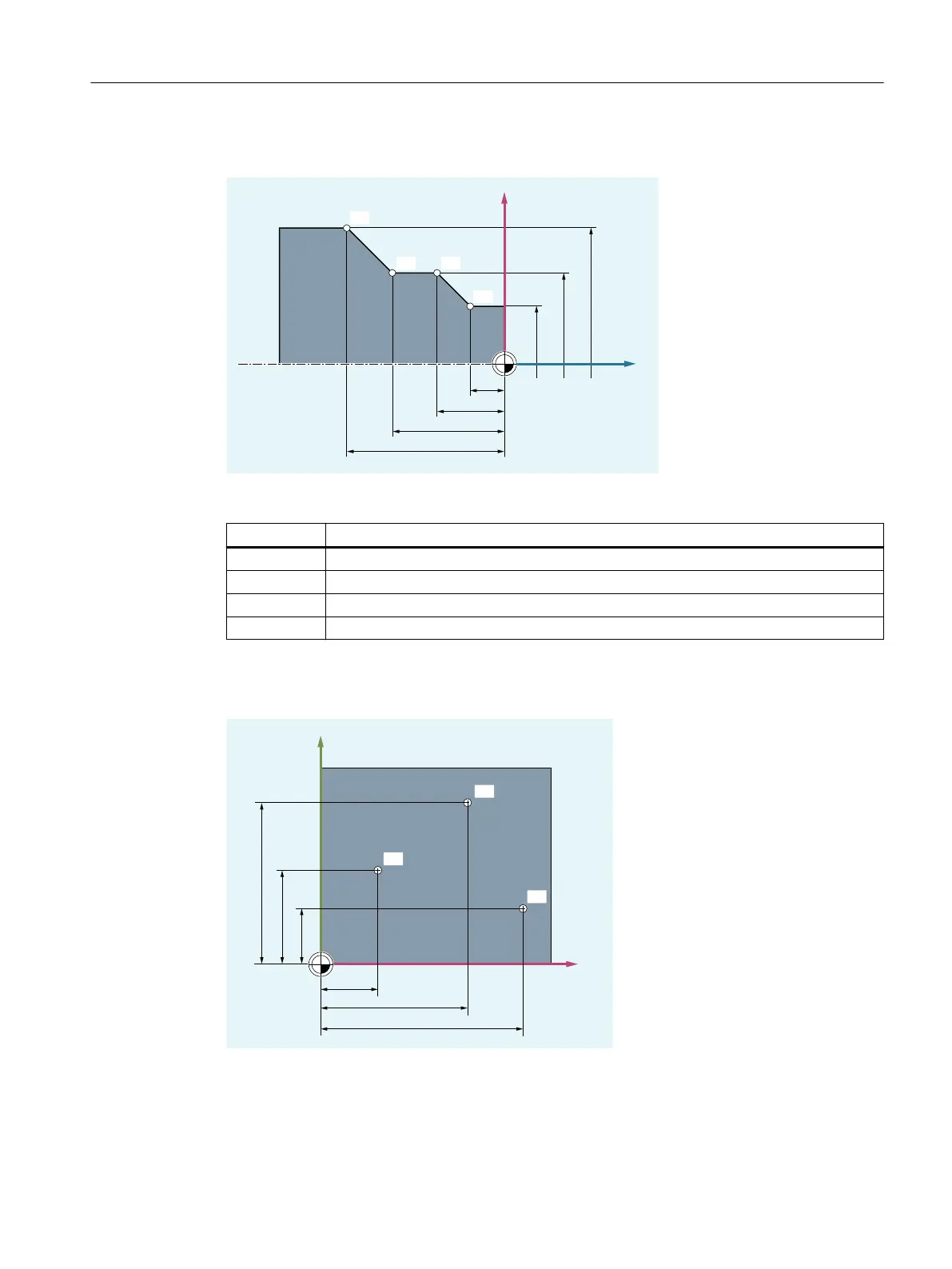

In absolute dimensions, the following position specifications result for points P1 to P4:
Position Position specification in absolute dimensions
P1 X25 Z-7.5
P2 X40 Z-15
P3 X40 Z-25
P4 X60 Z-35
Example: Milling






<
;
3
3
3
