Program code Comment
N16 ORIMKS
N17 G1 PTP X1665.67 Y0 Z1377.405 A=0 B=0 C=0 STAT=... F2000 ; The STAT value defines
the articulated joint
positions (see below)
...

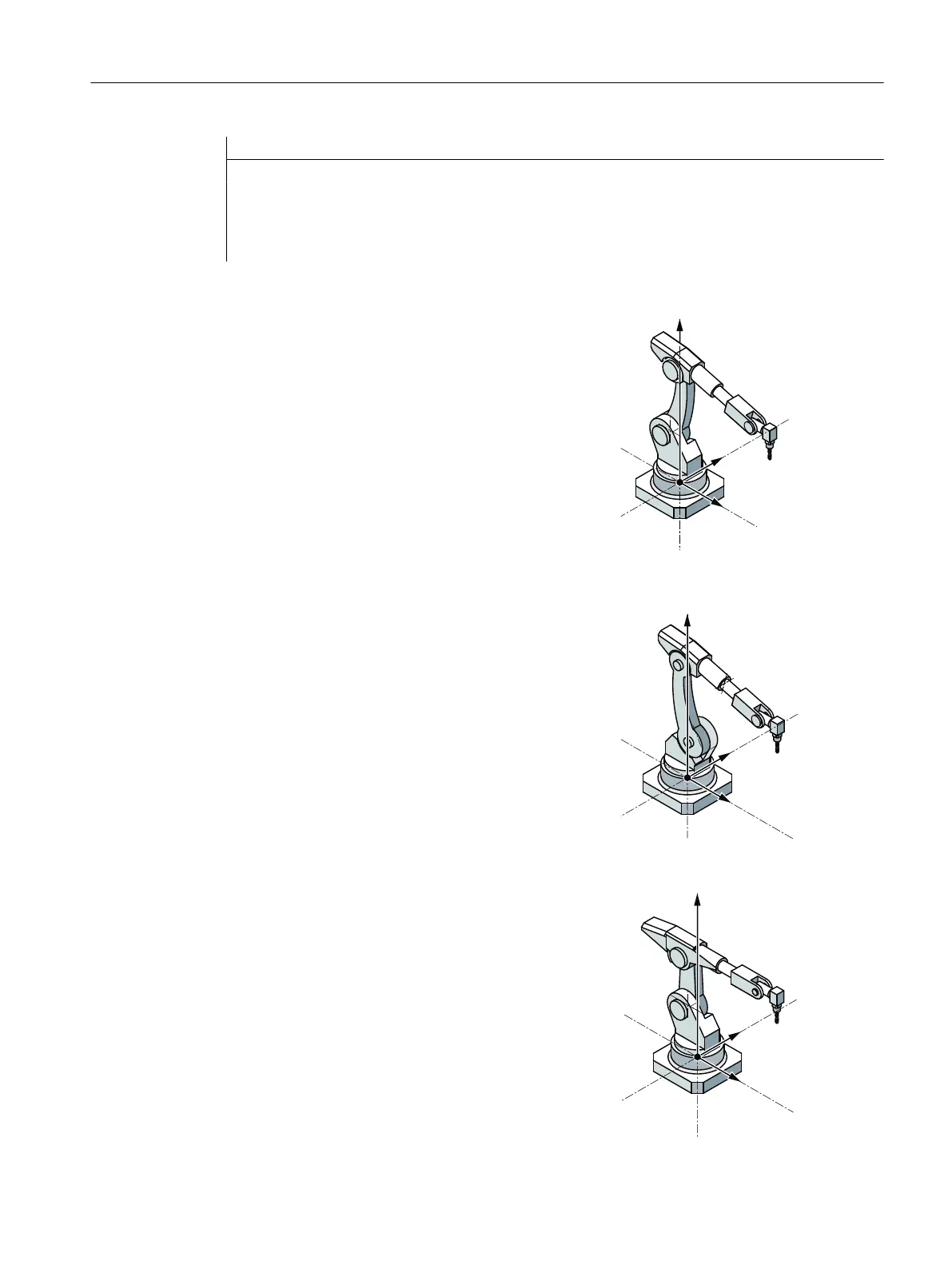

STAT=1 ('B001') → Shoulder left
→ Elbow down
→ No handflip
=
;
<
STAT=2 ('B010') → Shoulder right
→ Elbow up
→ No handflip
=
;
<
STAT=5 ('B101') → Shoulder left
→ Elbow down
→ Handflip
=
;
<
