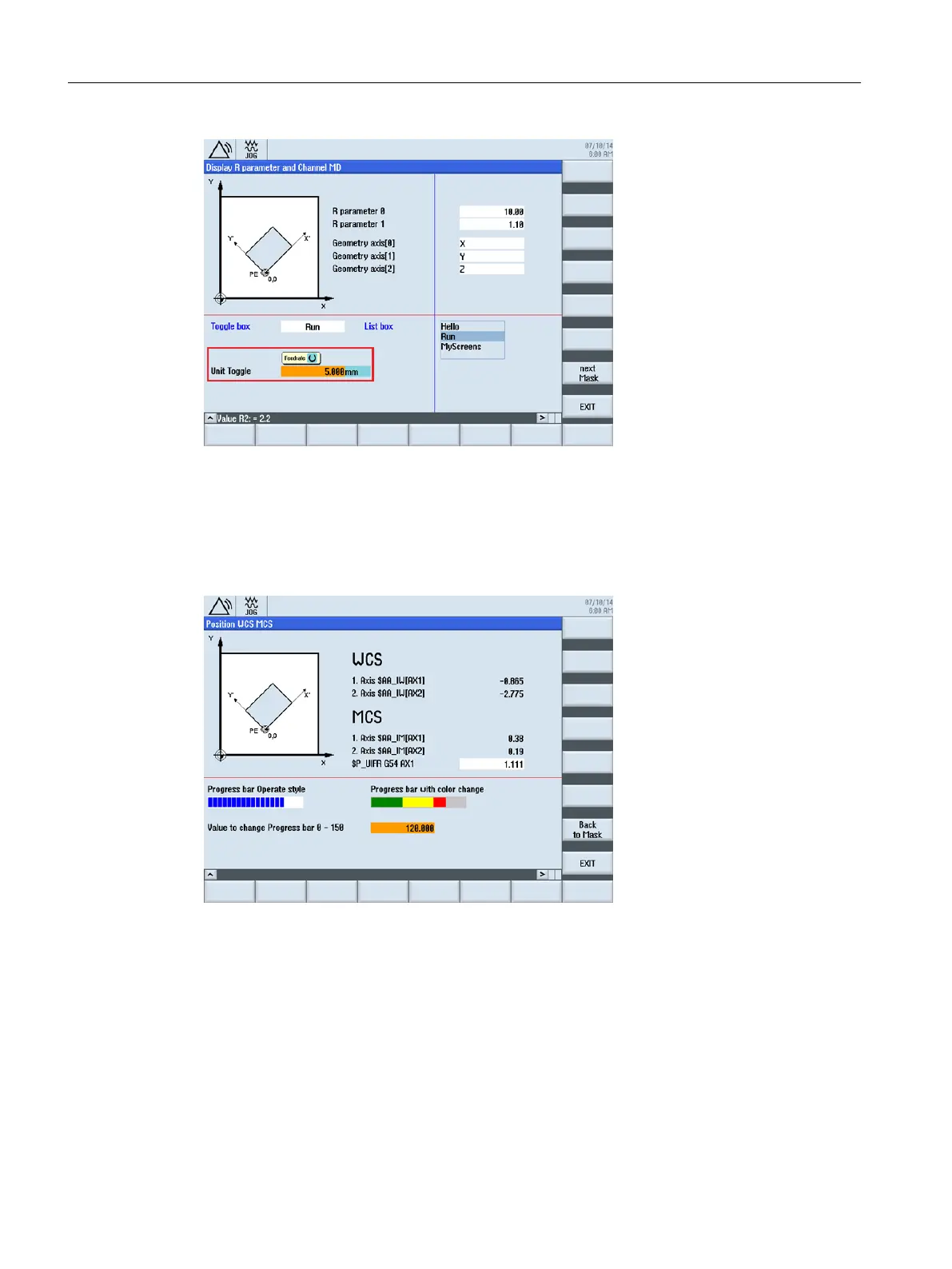

Figure 2-4 I/O field with integrated unit selection
Dialog 2
MCS and WCS values are displayed in the second dialog. The dialog also contains examples
of progress bars with and without color change.
Figure 2-5 Progress bars with (right) and without (left) color change
Getting Started
2.2 Project example
SINUMERIK Integrate Run MyScreens (BE2)
16 Programming Manual, 12/2017, 6FC5397-1DP40-6BA1
