7.6.6 Positioning and aligning picture and text
Positioning pictures
A picture is positioned as follows with the specified alignment:
● In a first step, the picture matching the current resolution is determined from the associated
resolution directory.
● The rectangle of the area (ClientArea) is then reduced by the specified clearances to the
edges (MarginArea).
The MarginArea can be influenced using the "setMargins" function:
– setMargins(-1, -1, -1, -1, -1)

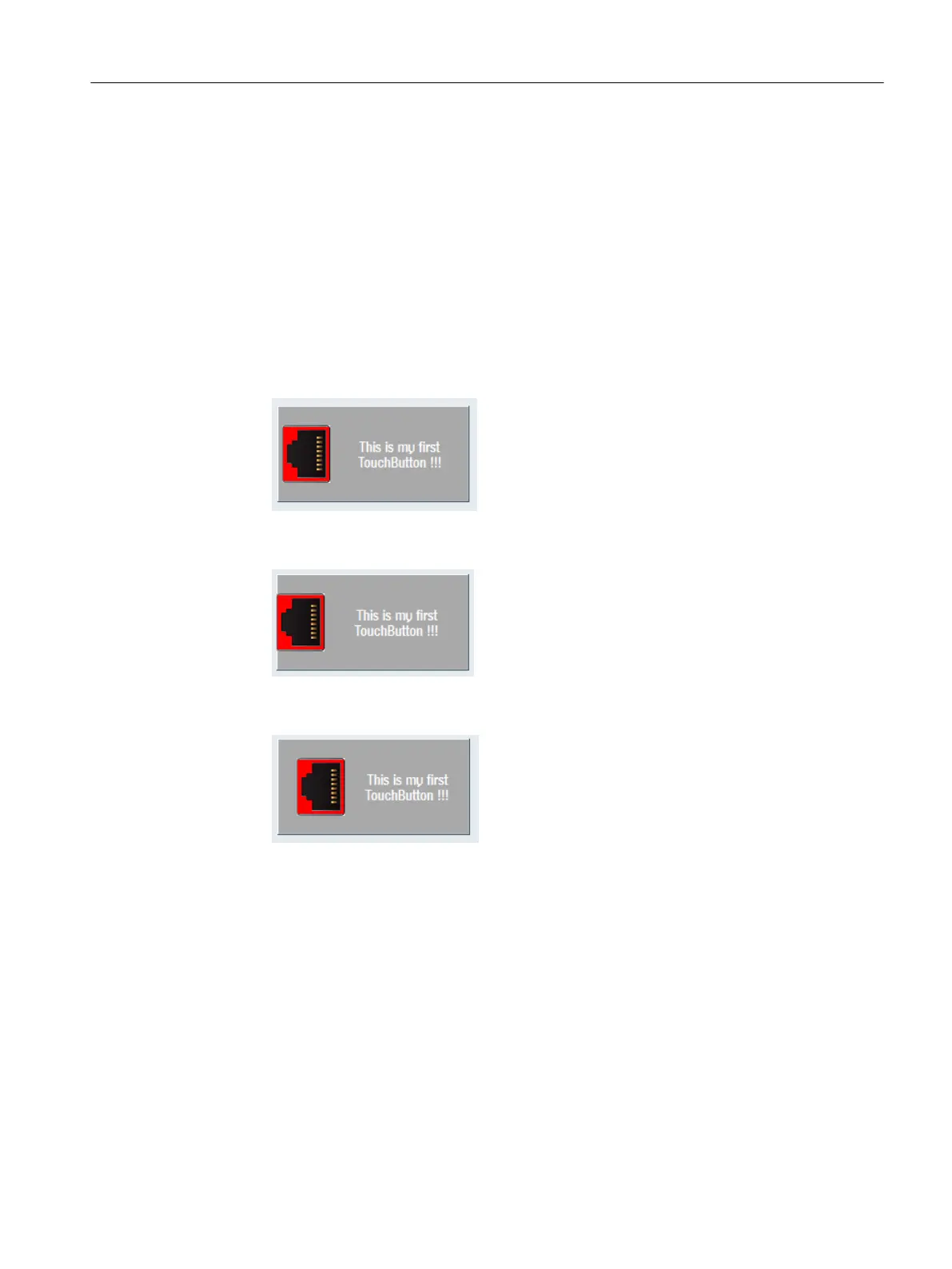

Figure 7-33 setMargins(-1, -1, -1, -1, -1)
– setMargins(0, 0, 0, 0, 0)
Figure 7-34 setMargins(0, 0, 0, 0, 0)
– setMargins(20, 20, 20, 20, 20)
Figure 7-35 setMargins(20, 20, 20, 20, 20)
Example for alignment "left"
The area is horizontally halved, so that the picture to be displayed can assume half (maximum)
of the area.
