Commissioning the system
1.3 Boot up behavior of the PCU
PCU-Basesoftware (IM8)
24 Commissioning Manual, 02/2014, 6FC5397-1DP40-4BA0
●
– This dialog is displayed if
no HMI program is installed, the installation has been
skipped
the start of the HMI program has been deactivated during startup.
Displaying this dialog can be suppressed through configuration in the global or user
settings. "Desktop" is then selected as the default.

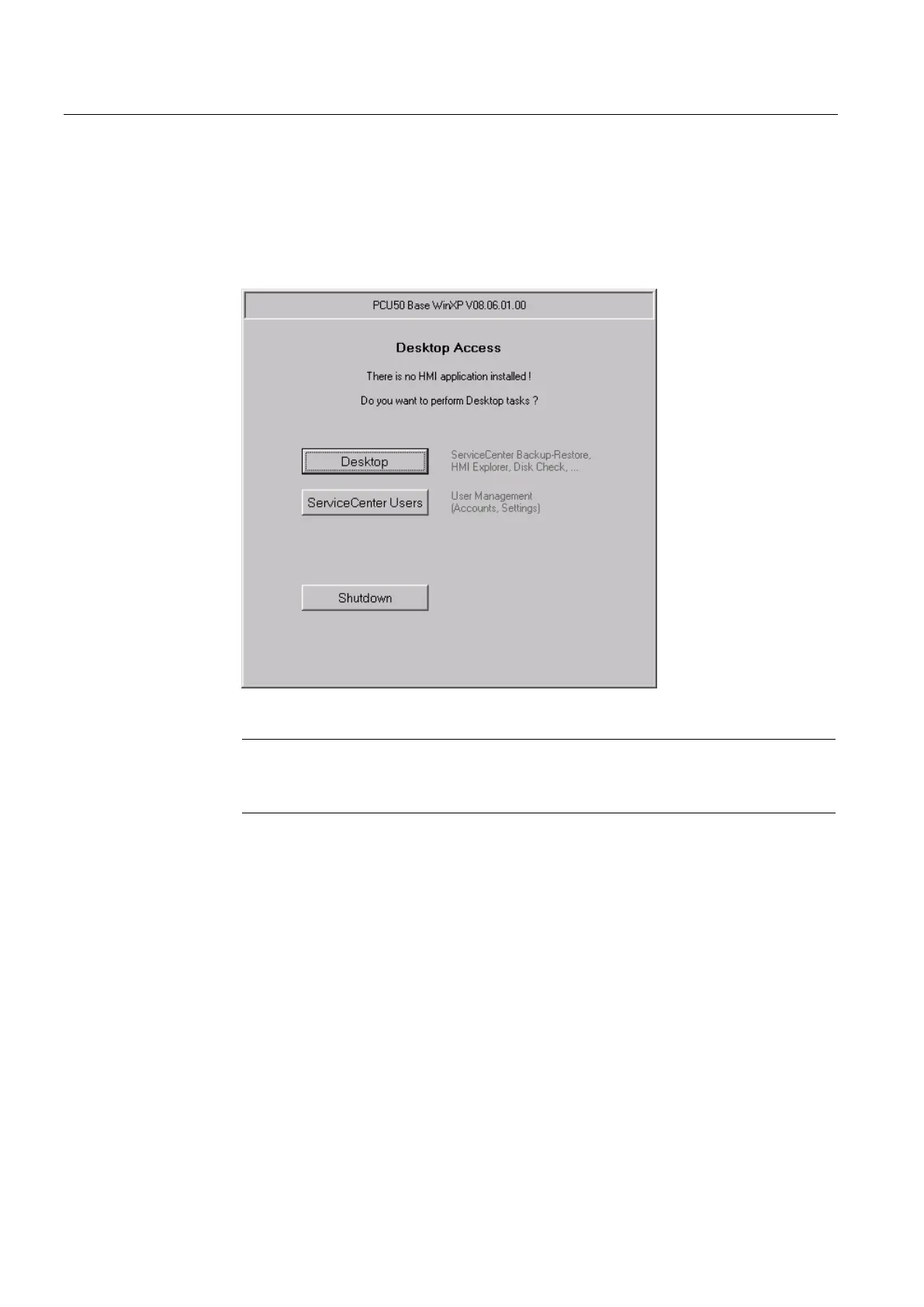

Figure 1-11 Desktop Access (example without HMI program)
Note
If an HMI program is installed, the "Start HMI" button is also avai
lable in the "Desktop
