Backing up and restoring data
4.12 Operating a service PC/PC in the network
PCU-Basesoftware (IM8)
110 Commissioning Manual, 02/2014, 6FC5397-1DP40-4BA0
To configure the IP routing in the Service Center, proceed as follows:
1. In the main menu of the Service Center, click "Network".
2. In the "Network Settings" dialog box, click the "IP Routing" tab.

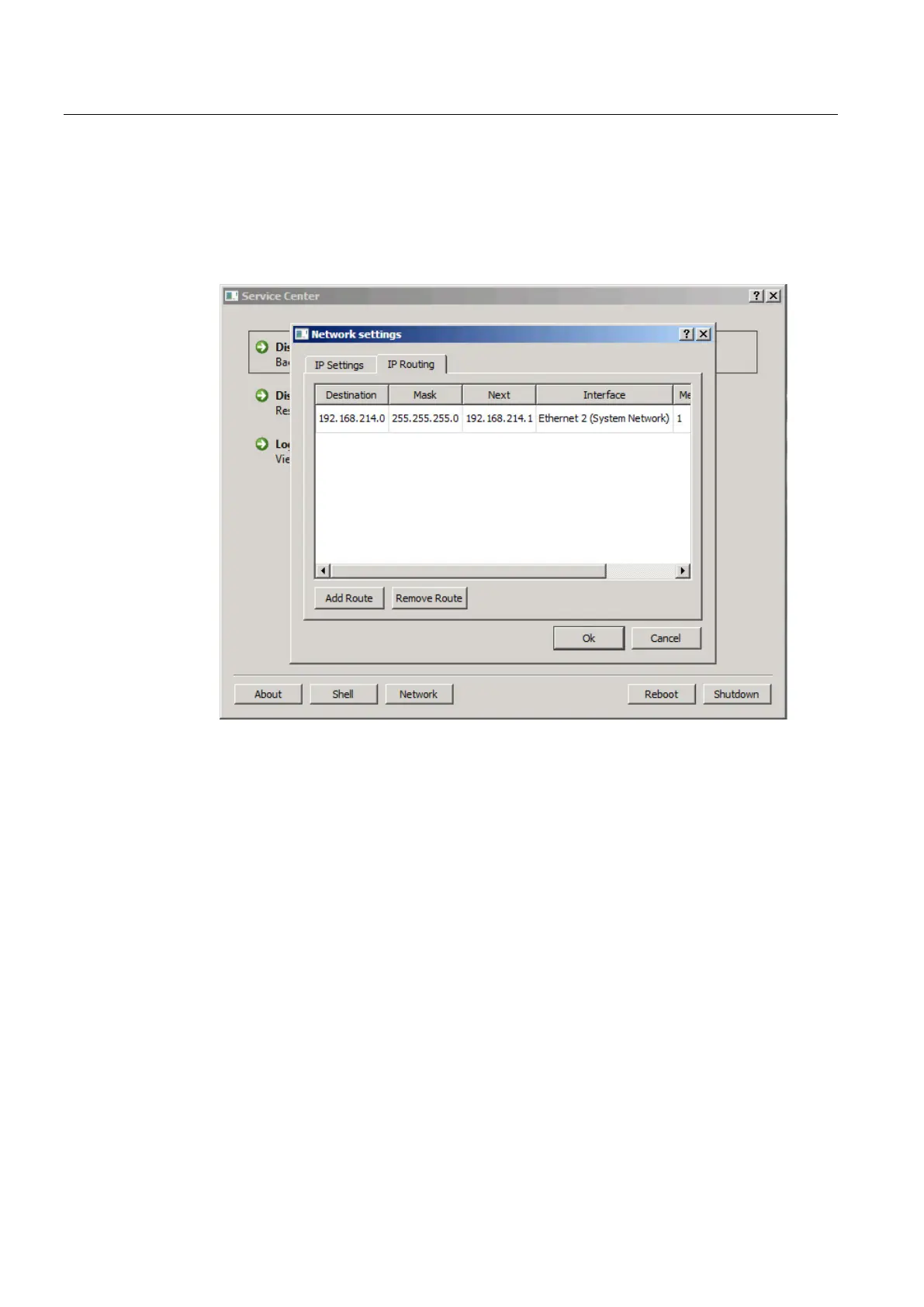

Figure 4-12 Service Center - IP routing
3. Configure the necessary routes. See also: Network settings in the Service Center
(Page 90)
The routing has been configured and the PG/PC and PCU are connected via the NCU.
Now, perform the desired steps, for example, a Restore a disk image of the SSD (Page 95).
