<Name value="TM_SPECIAL_MAG_PLACE_1" type="QString" />
</PLACE_2>
</MAGAZINE_9998>
<MAGAZINE_1>
<Name value="TM_SPECIAL_MAG_PLACE_2" type="QString" />
</PLACE_3>
</MAGAZINE_1>
</MAGAZINEPLACENAMECONFIGURATION>
Name for a magazine
Dedicated texts can also be allocated for magazines. The text or the text identifier is entered
into the magazine configuration file (ini file) of the NC. The system variable for the magazine

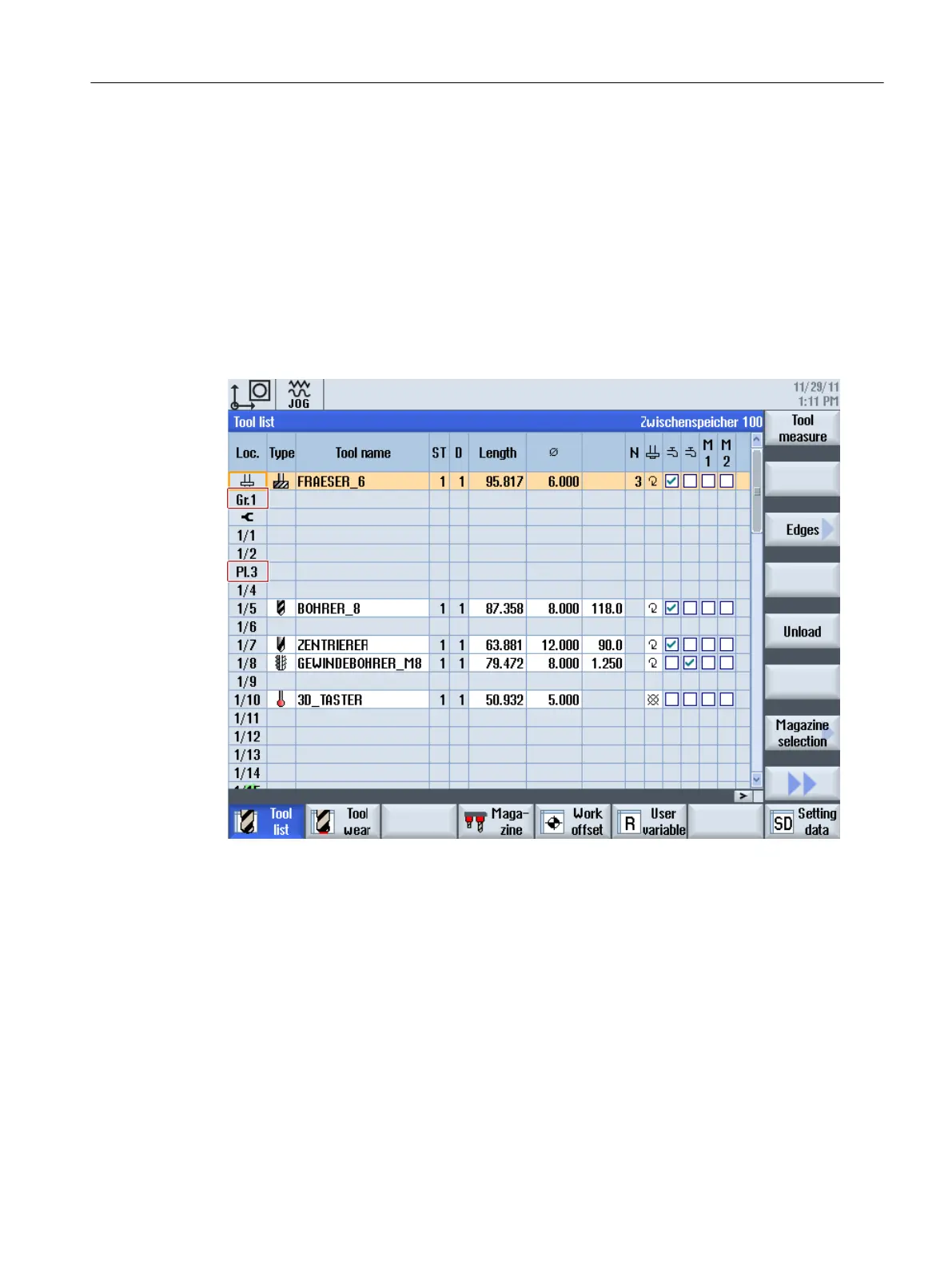

name is $TC_MAP2[magNo]. The magazine name is displayed at the top right in the tool lists.
Example
Magazine 1 should have the name "main magazine".
$TC_MAP2[1]="main magazine"
If the "main magazine" text is to be output language-dependent, then the language-dependent
texts for the text identifier "main magazine" must be created.
Tool management
12.2 Configuring the user interface
SINUMERIK Operate (IM9)
Commissioning Manual, 12/2017, 6FC5397-1DP40-6BA1 209
