Tag identifier Meaning
IMG The tag is used to display an image in the specified position. The BMP and PNG image formats
are supported.
Syntax:
<IMG xpos = "<X position>" ypos = "<Y position>" name = "<name>" />
<IMG … xrot="angle X axis" yrot=" angle Y axis " zrot=" angle Z axis
" />
Attributes:
● xpos
X position of the top left corner
● ypos
Y position of the top left corner
● name
Complete path name The path information is made in lowercase letters.
● transparent
Transparent color of the bitmap (see Chapter "Color coding (Page 46)"):
IMG Continued Example:

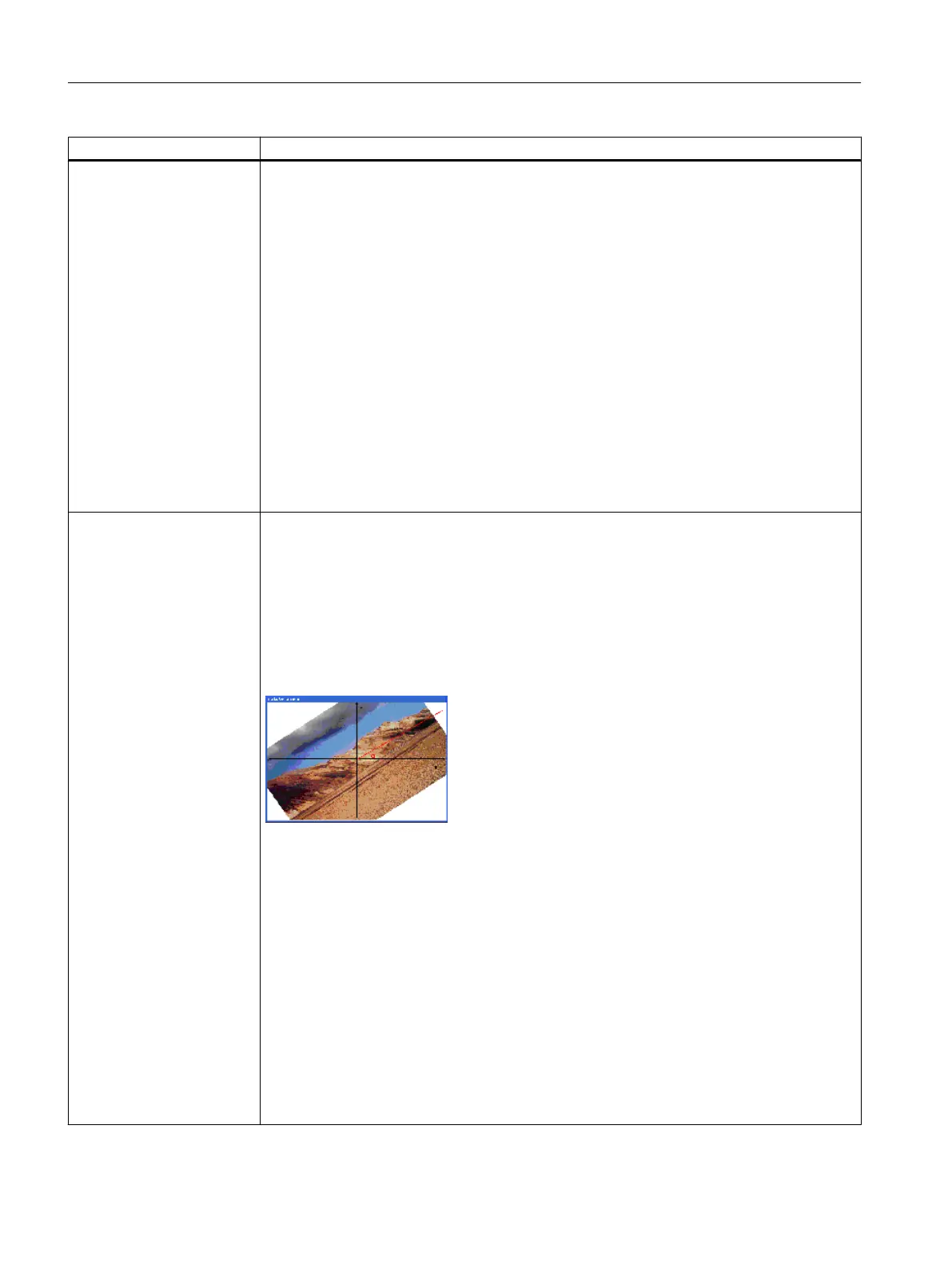

The image is rotated through 34 degrees around the Z axis:
<img xpos = "5" ypos = "23" name = "f:/appl/pic3.bmp" height="355"
width="550" zrot="34" color_bk="#ffffff" >
</img>
Note:
The drive designations vary depending on the system.
Optional:
If the image display is to differ from the original size, the dimensions can be defined using the
attributes width and height.
● width
Width in pixels
● height
Height in pixels
Examples:
<IMG xpos = "20" ypos = "40" name = "f:/appl/test.bmp" />
<IMG xpos = "5" ypos = "23" name = "f:/appl/test.bmp" height = "355"
width = "550"/>
Generating user dialogs
1.7 XML identifier
Easy XML
76 Programming Manual, 12/2017, 6FC5397-1DP40-6BA1
