Procedure
1. Start the OPC UA "Sample client".

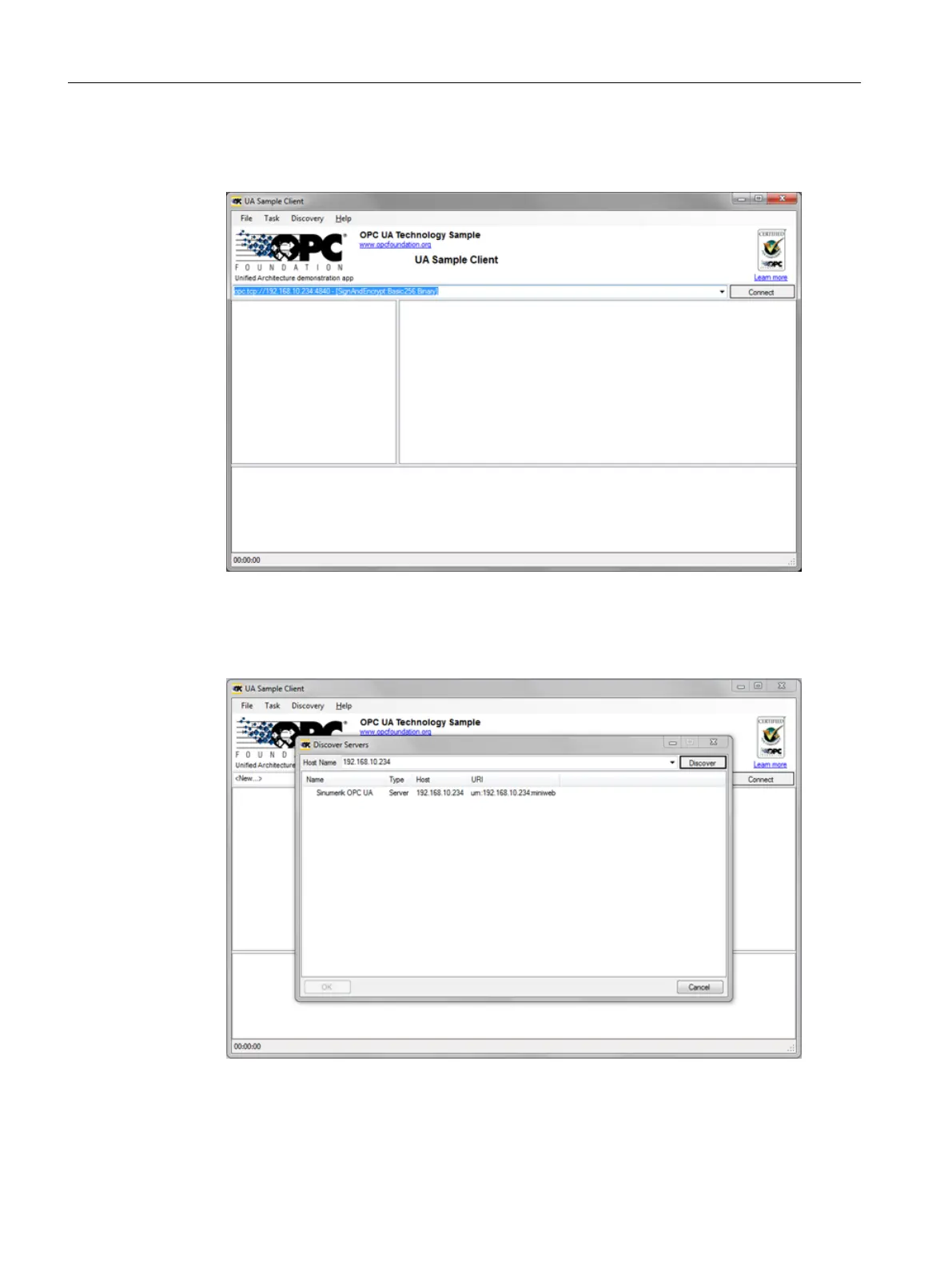

Figure 3-5 Sample Client main window
2. Select the "New" entry from the drop-down list.
The "Discover Servers" window opens.
3. Now enter the IPv4 address of the target system and click the "Discover" button.
Figure 3-6 Discover servers
4. The SINUMERIK OPC UA server appears in the list. Select the server and confirm with
"OK".
Setting up of OPC UA server
3.5 Testing the connection
SINUMERIK Integrate for Engineering Access MyMachine / OPC UA
26 Configuration Manual, 12/2017, 6FC5397-1DP40-6BA1
