4.5 PN Basic connection module
4.5.1 Description
The connection module Basic PN was specially developed for installation in the control cabinet.
The terminating connector protrudes through the panel of the control cabinet so that the HT 10
can be connected from the outside.
6\VWHPQHWZRUN
6WDWXVVLJQDOV
(PHUJHQF\
6WRS
3DQHOSUHVHQW
6DIHW\
FRPELQDWLRQ
7.
&RQQHFWLQJFDEOH
)DFWRU\QHWZRUN
&RQWUROV
1&8
1&8
1&8
31%DVLFFRQQHFWLRQPRGXOH
(PHUJVWRSFLUFXLWV
0DFKLQHFRQWUROSDQHO
2SHUDWRUSDQHO
+7
+7
3
3
3

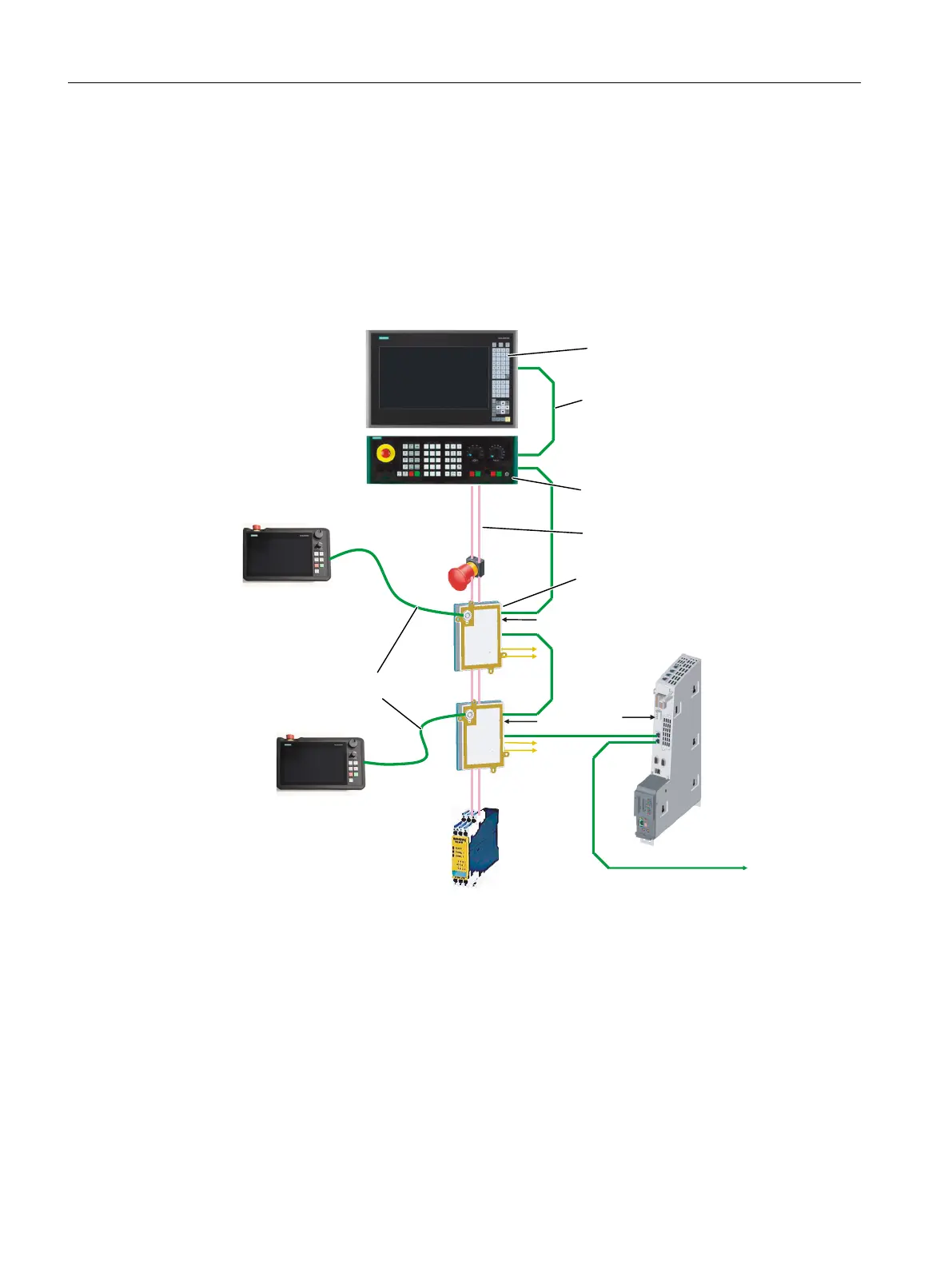

Figure 4-8 System conguration (example)
The connection module Basic PN is not hot plug-capable.
The HT 10 can be connected either directly to the NCU or to the PCU as a Thin Client.
4.5.2 interfaces
The connector for the HT 10 is located on the front of the Basic PN connection module.
The other interfaces of the connection module are located at the rear:
Connecting
4.5 PN Basic connection module
Handheld Terminal HT 10
54 Equipment Manual, 09/2020, A5E47430965B AA
