4.6 Connecting cable
The connecting cable is an industrial cable, can tolerate bending in-line with what is required in
practice – and is resistant to many solvents and lubricants.
The connecting cable is available in various lengths. More detailed information is provided in the
Chapter "Accessories (Page 93)".

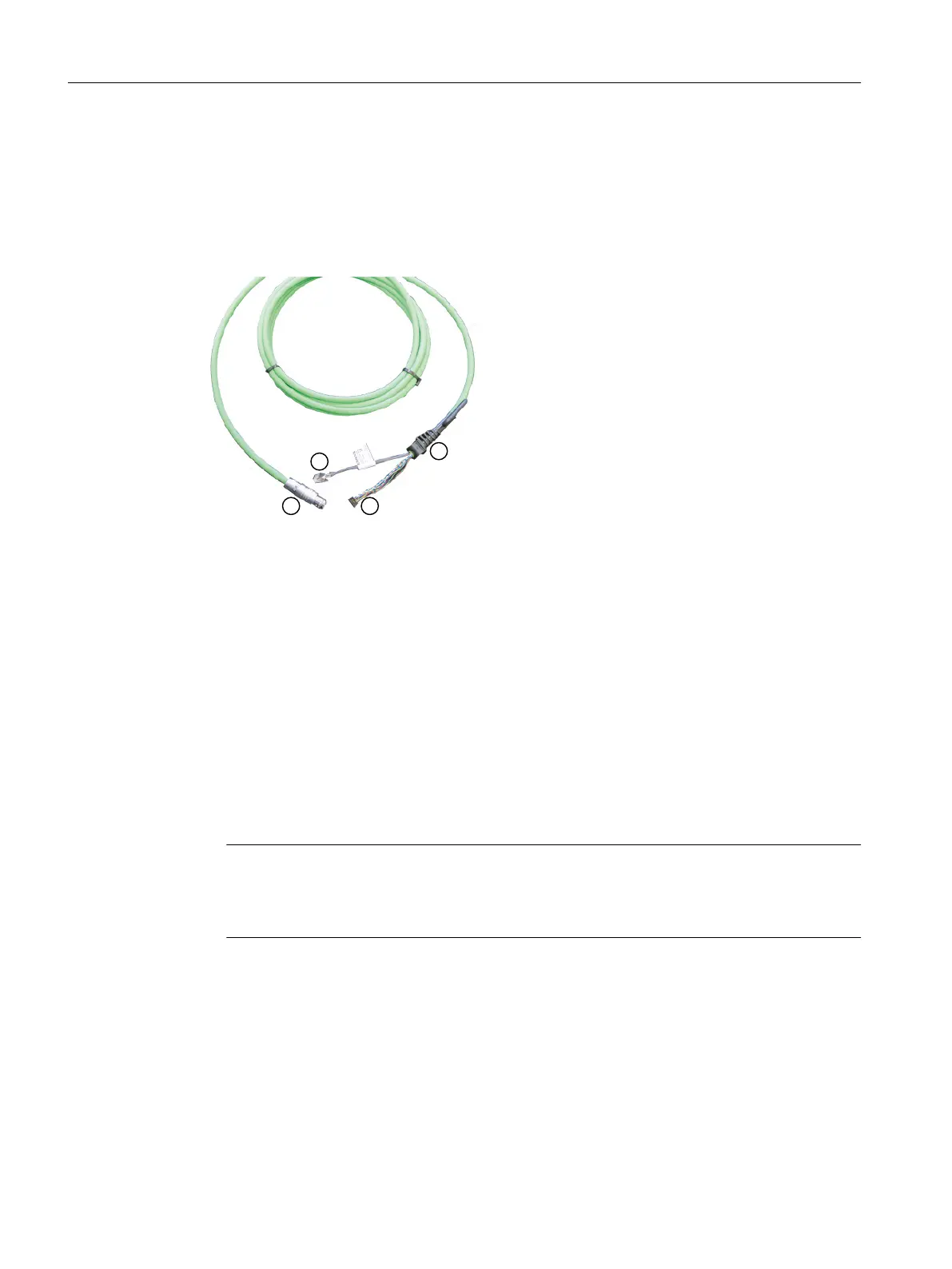

① Metallic push-pull round connector (ODU connector)
② RJ45 plug to connect to the Ethernet
③ Plug connector for enabling button, Emergency Stop, 24 V and safety signals
④ Strain relief device and kink protection
Figure 4-12 Connecting cable for the HT 10
The connecting cable is connected to the HT 10 with the RJ45 connector ② and connector ③.
The ODU connector ① is used to connect the connecting cable to the connection box / module.
The tightening torque for the nut of the ODU socket is 6.5 Nm.
Routing the connecting cable
1. Grease the connecting cable at the entry point with Vaseline.
This ensures a better seal and makes it easier to insert the connecting cable.
2. Insert the connecting cable into the entry.
Note
Ensure correct orientation of the connecting cable. The convex side of the anti-kink
protection must face away from the device as otherwise the cover will not lie ush on the
housing when screwed on.
Connecting
4.6 Connecting cable
Handheld Terminal HT 10
60 Equipment Manual, 09/2020, A5E47430965B AA
