5.5.1 Messages during booting
Messages when booting
While the TCU boots, a progress indicator is displayed with messages showing the current status
after the BIOS has been loaded and before the operating system is started. While the IP address
is being determined via DHCP and the TFTP is being downloaded (boot image), a progress bar
indicates that booting of the TCU is not yet complete, or that a fault has occurred.

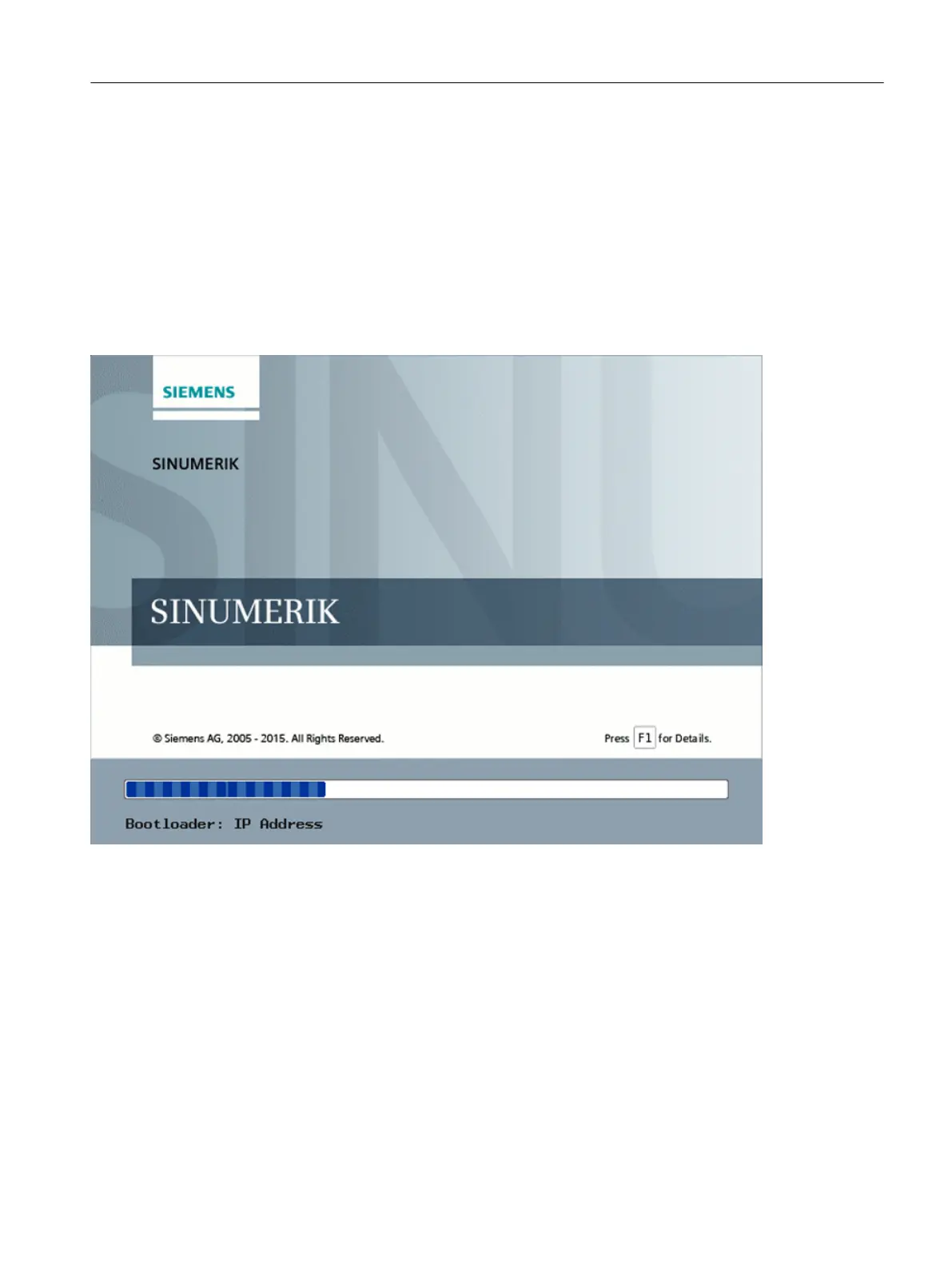

The gure below shows the structure of these messages:
You can see the current boot phase below the progress bar. If a fault occurs, you can call further
information by touching the "F1" eld.
Commissioning
5.5 Troubleshooting
Handheld Terminal HT 10
Equipment Manual, 09/2020, A5E47430965B AA 73
