Electronic handwheels are incremental encoders whose signals correspond to rotation of the
wheel actuated manually.
The handwheels are equipped with a magnetic latching mechanism that supports traversing
with incremental accuracy. The axis selected via the control can be positioned so that the axes
are parallel.
The handwheels have 100 I/U lines.
Up to 2 handwheels can be connected.
3.8 USB devices
3.8.1 USB keyboard
The keyboard is equipped with short-stroke keys and is connected via USB (USB2.0 compatible).

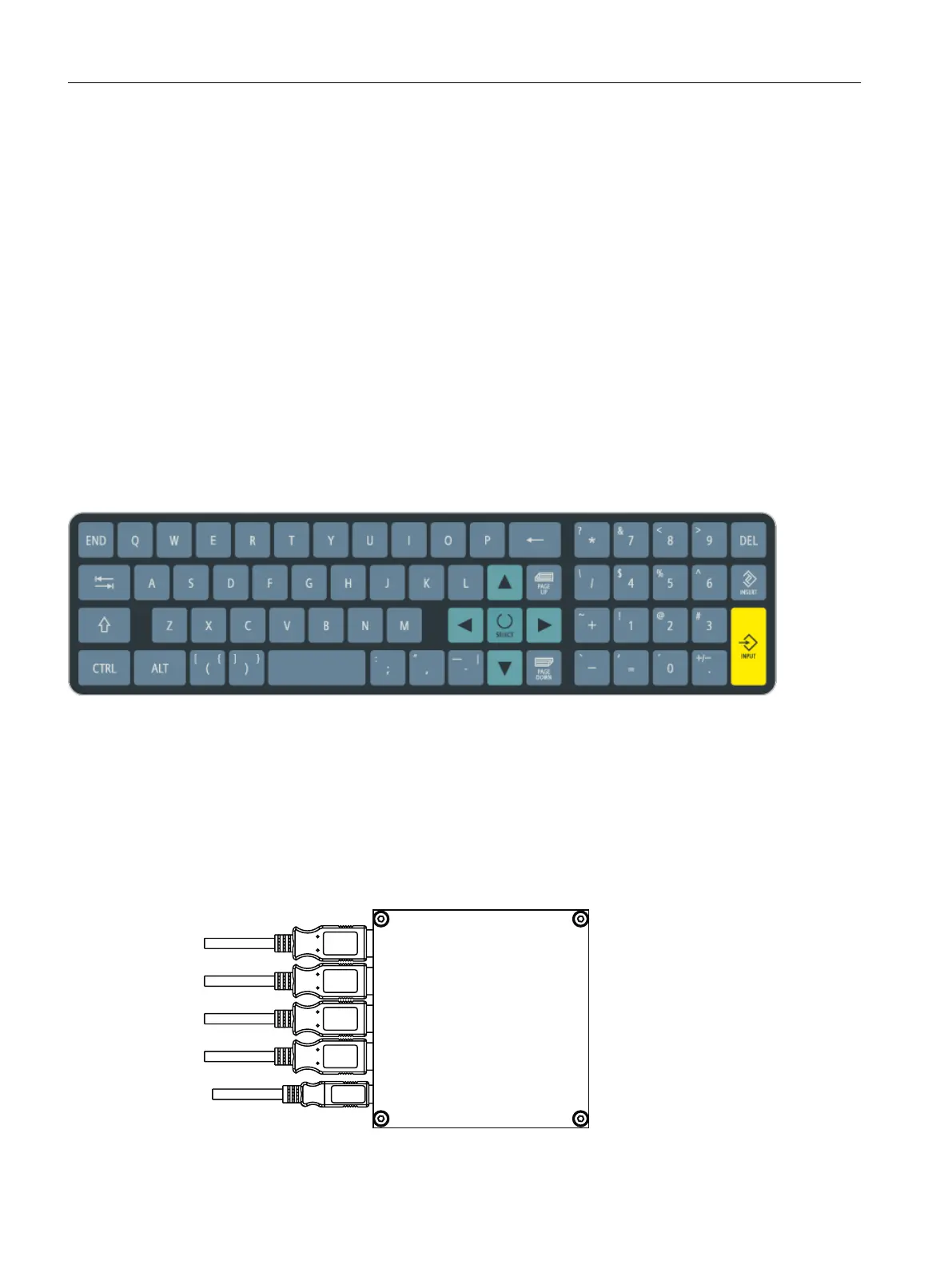

Figure 3-11 USB keyboard
The keyboard has 65 keys.
3.8.2 USB hub
The optional USB hub has four USB ports with USB 2.0 Hi-Speed.
The USB keyboard is connected to one port and the power is supplied via the host connection.
Operator control and display elements
3.8 USB devices
ONE MCP Part 1: MCP xxxx
28 Equipment Manual, 07/2020, A5E50324729B AA
