9.2 Handwheel connection
The handwheels are connected according to the display.













0
3
;$+:
$+:
;%+:
%+:
0
3
<(
*1
5'
2*
97
%8
%.
%1



① Connection plug: e.g. Harting 09451819000 ix Industrial® type B
② Length as required
③ Cable: 6FX8008-1BD61
④ Strip cable sheath 45 + 2 mm
⑤ Shield

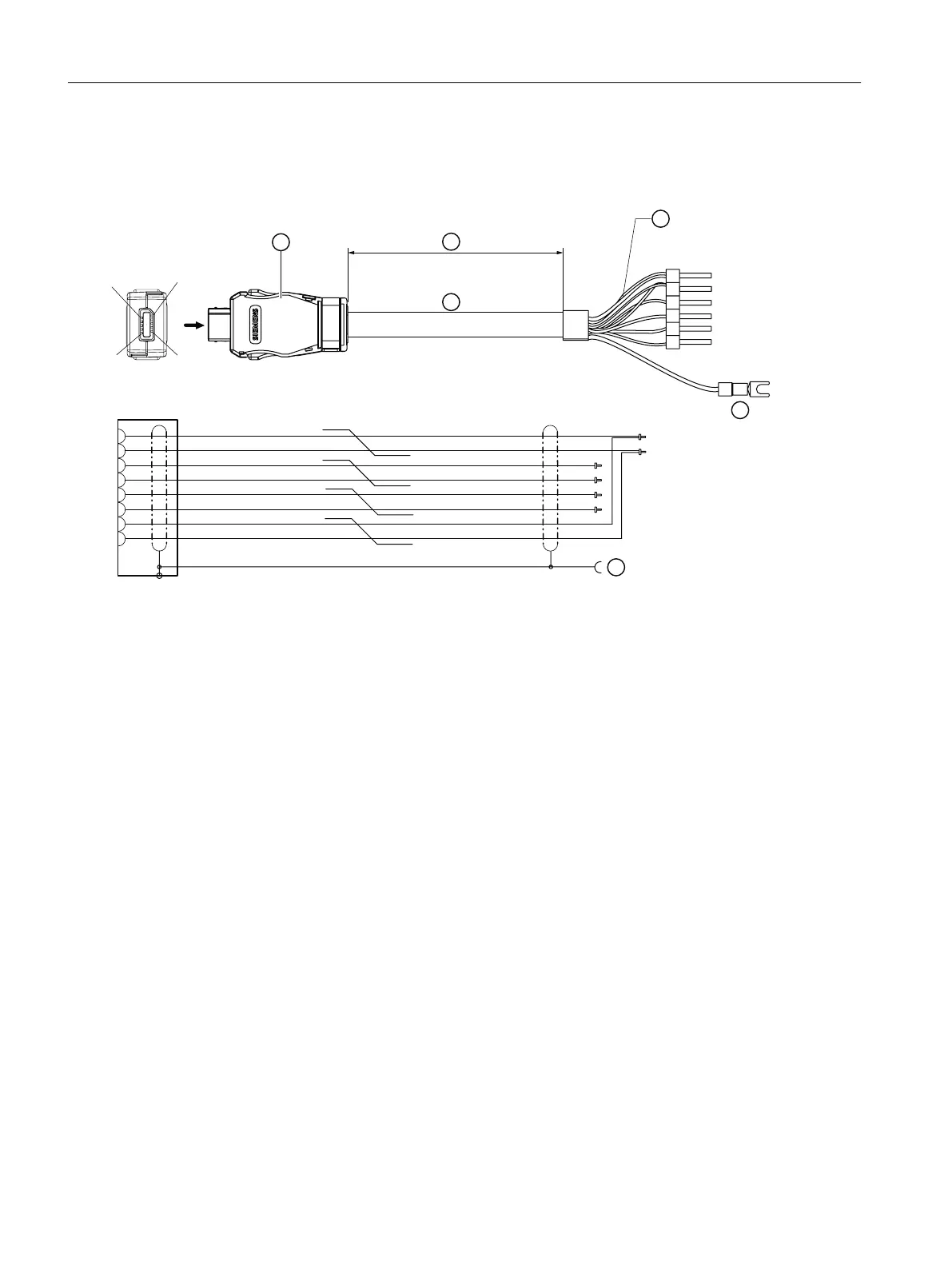

Figure 9-1 Connecting cable for handwheel
See also
Overview (Page 61)
Spare parts/accessories
9.2 Handwheel connection
ONE MCP Part 1: MCP xxxx
62 Equipment Manual, 07/2020, A5E50324729B AA
