3.9 Key-operated authorization switch
The key-operated authorization switch option is an alternative to the RFID reader. The delivery
kit includes 3 keys.
The key-operated authorization switch has 4 positions.
3.10 RFID reader
The RFID reader option is an alternative to the key-operated authorization switch. The delivery
kit contains 3 RFID tags, labeled 1 to 3.
The authorization levels are set using these tags in the same way as with the key-operated
authorization switch in the I/O image.

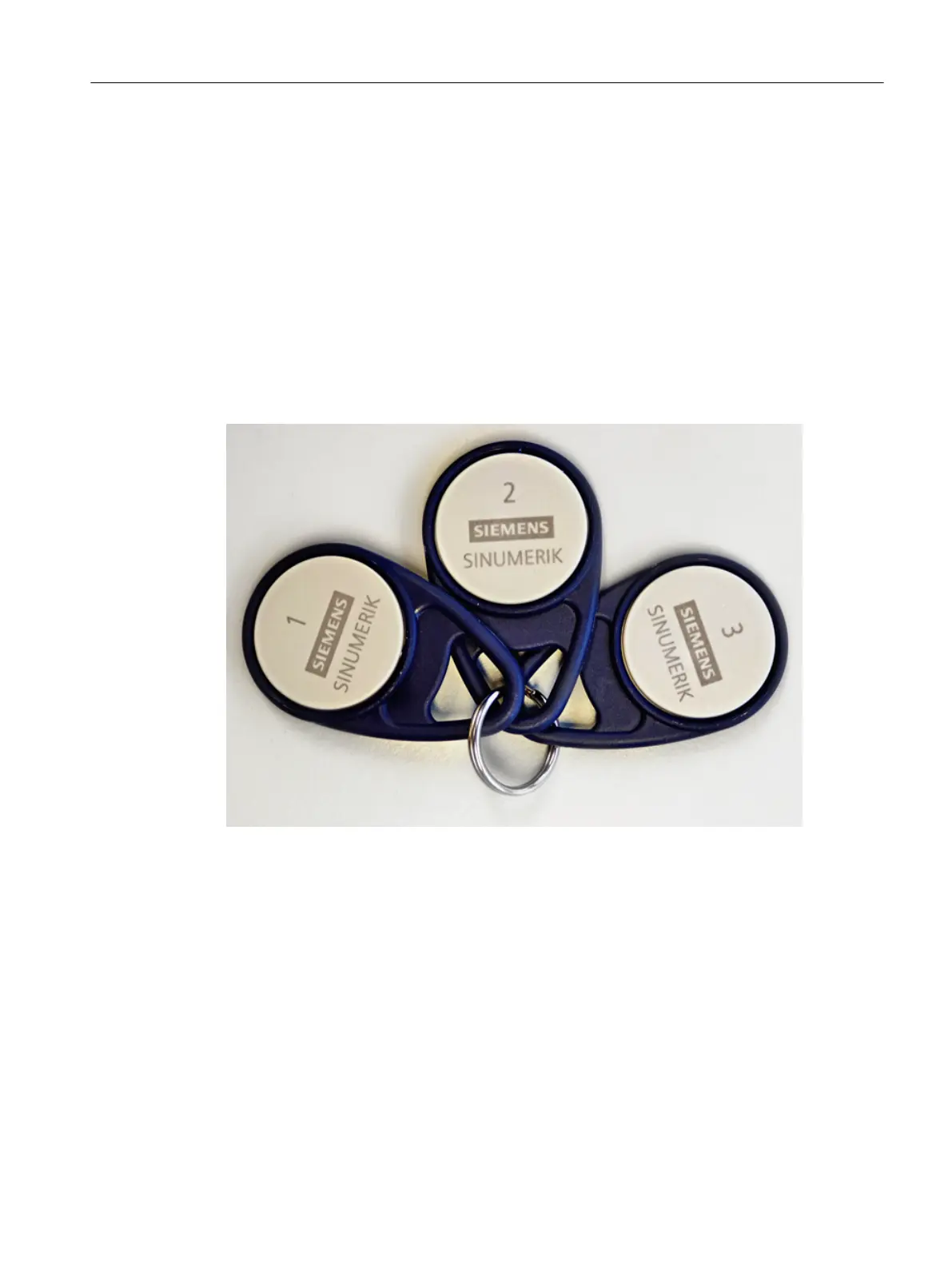

Figure 3-12 RFID tags
Writing to and reading out the RFID tags with additional data is not supported.
LEDs of the RFID reader:
• LED on: valid RFID tag detected or start process of the MCP
• LED o: no valid RFID tag detected or MCP o
3.11 Slots for additional components (diameter 22.3 mm)
Additional mounting slots with a diameter of 22.3 mm can be provided for further operator
controls.
Operator control and display elements
3.11 Slots for additional components (diameter 22.3 mm)
ONE MCP Part 1: MCP xxxx
Equipment Manual, 07/2020, A5E50324729B AA 29
