3.2 Communication module for Industrial Ethernet and PROFINET


① Interface for feedrate override rotary switch
② 24 V power supply interface
③ DIP switch
④ Ethernet port 1 / port 2
⑤ Connections for 2 handwheels
⑥ Interfaces for custom made inputs and outputs
⑦ Interfaces for custom made inputs and outputs
⑧ Keyswitch interface
⑨ Interface for spindle override rotary switch

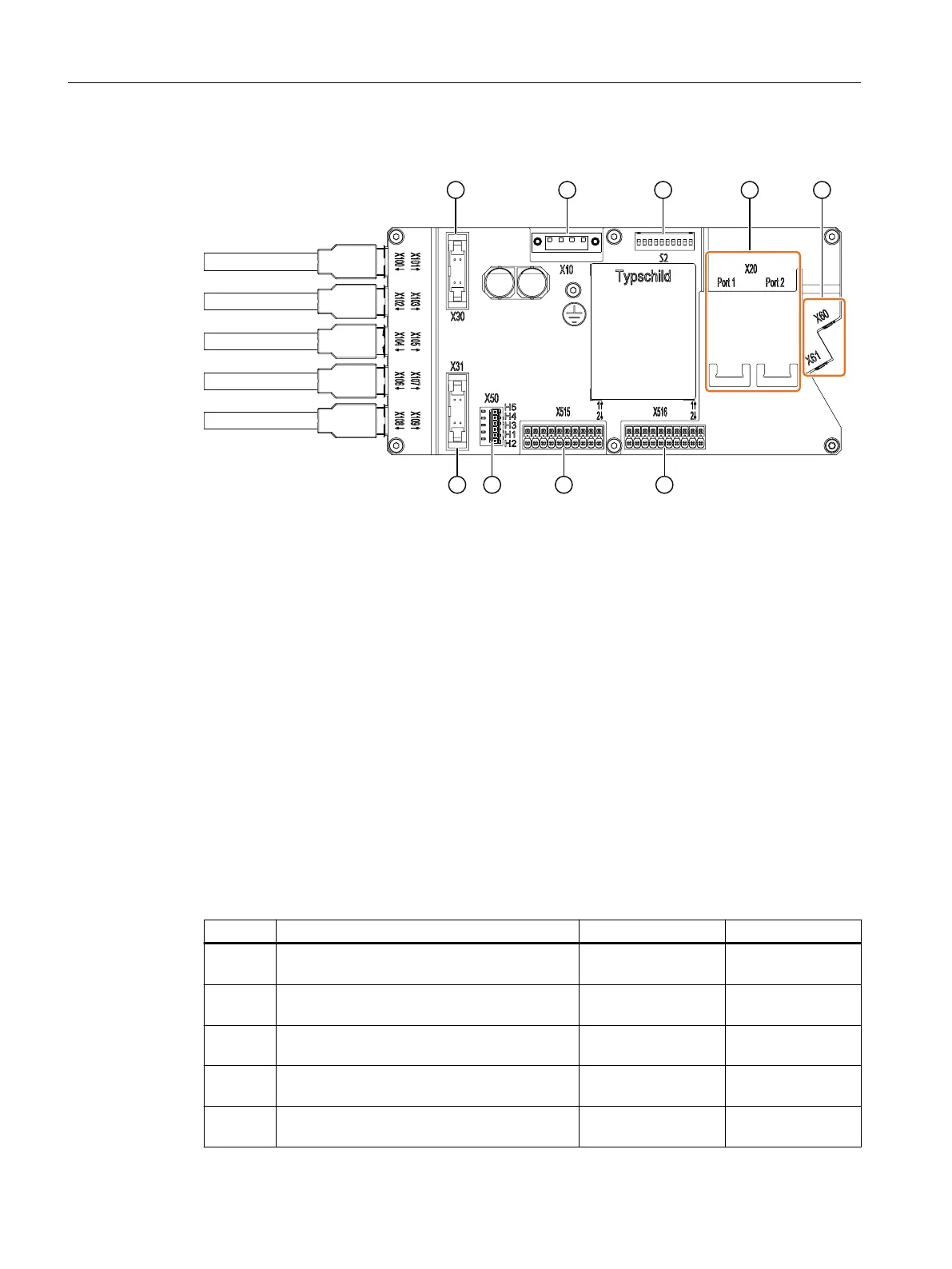

Figure 3-1 View of communication module
3.3 Interfaces
3.3.1 Overview
Interface Designation Max. cable length Type
X10 24 V power supply interface 10 m Terminal block, 4-
pin
X20 P1 /
X20 P2
Ethernet port 1 / port 2 100 m RJ45
X30 Interface for feedrate override rotary switch 1 m 10-pin male con‐
nector
X31 Interface for spindle override rotary switch 1 m 10-pin male con‐
nector
X50 Keyswitch interface 1 m 6-pin male connec‐
tor, 2.54 mm
Operator control and display elements
