2.6 Flexible Protection Functions
SIPROTEC, 7RW80, Manual
C53000-G1140-C233-1, Release date 10.2010
81
Function Logic

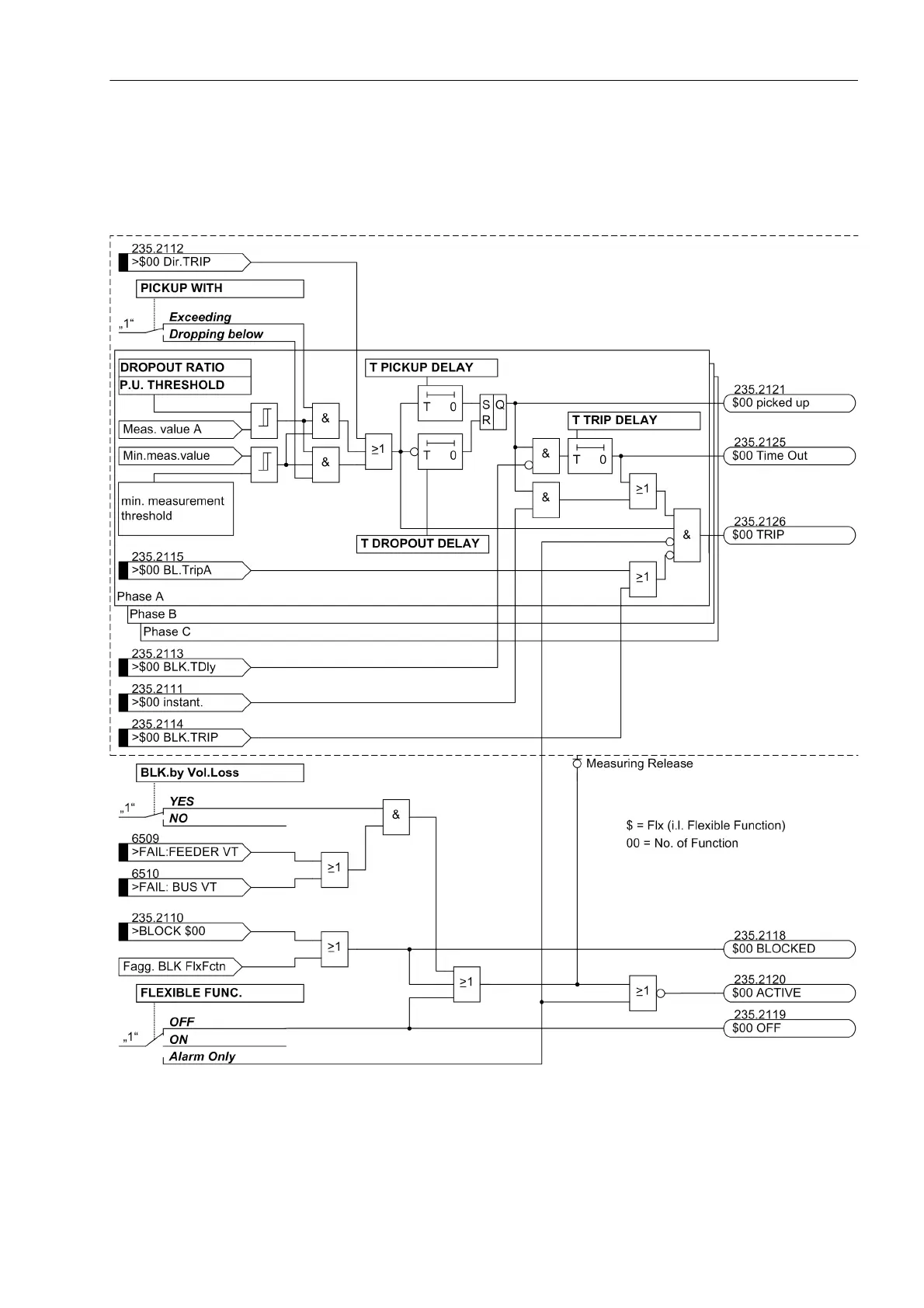

Figure 2-20 shows the logic diagram of a three-phase function. If the function operates on one phase or without
phase reference, phase selectivity and phase-specific indications are not relevant.
Figure 2-20 Logic diagram of flexible protection functions
