Functions
2.11 Monitoring Functions
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
204
The generation of an internal signal “Alarm FFM isol. N.“ for the mode of operation in an isolated system is
illustrated in Figure 2-69.

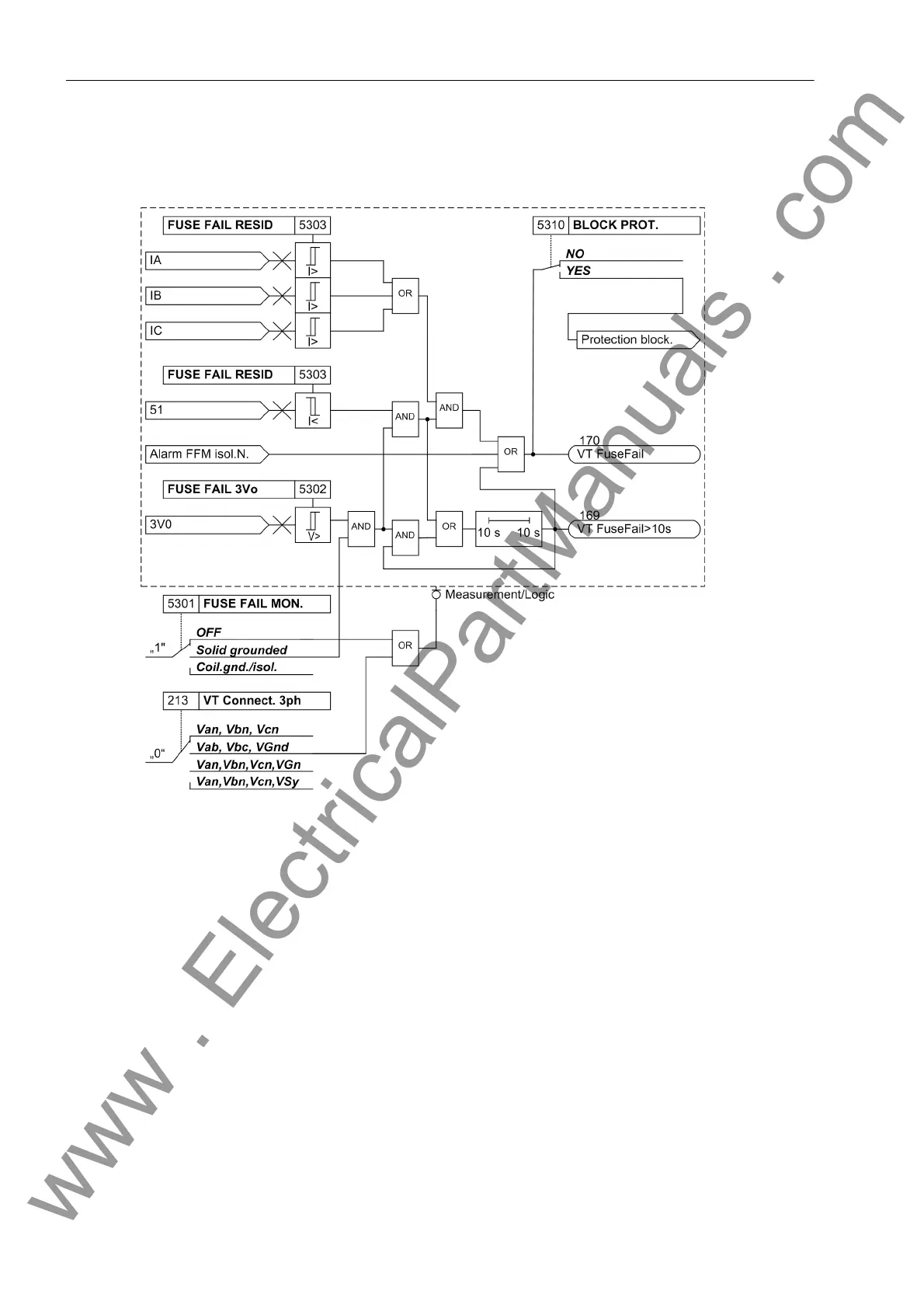

Figure 2-68 Logic diagram of the Fuse Failure Monitor for grounded networks
