Appendix
A.3 Connection Examples
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
598
A.3 Connection Examples
A.3.1 Connection Examples for Current Transformers, all Devices

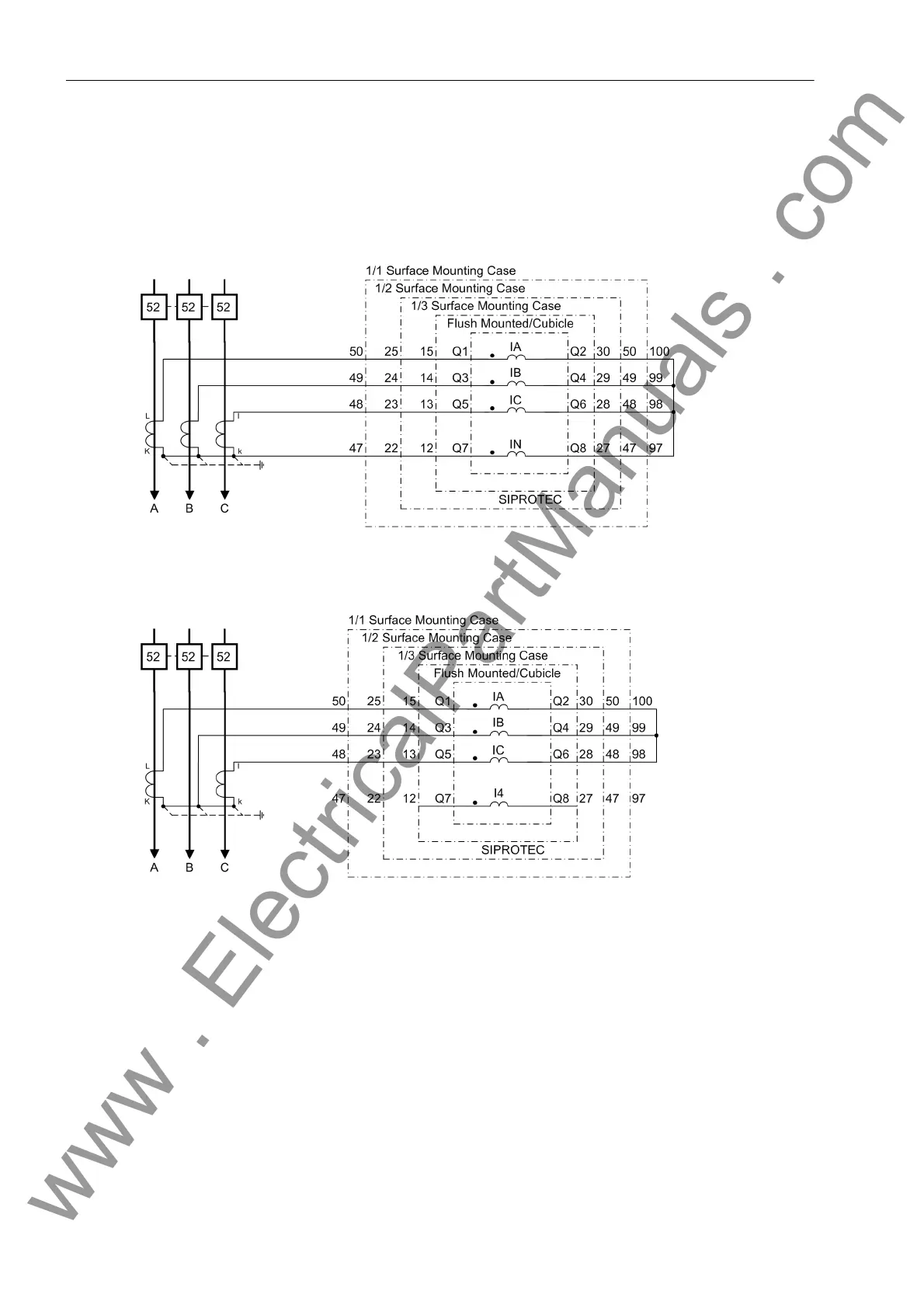

Figure A-37 Current connections to three current transformers with a starpoint connection for
ground current (residual 3I0 neutral current), normal circuit layout
Figure A-38 Current connections to two current transformers -
only for ungrounded or compensated networks
