Appendix
A.2 Terminal Assignments
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release da
te 01.2008
569
A.2.3
7SJ62 — Interface assignment on
housing for panel surface mounting
7SJ621/2*-*B (up to release ... /CC)

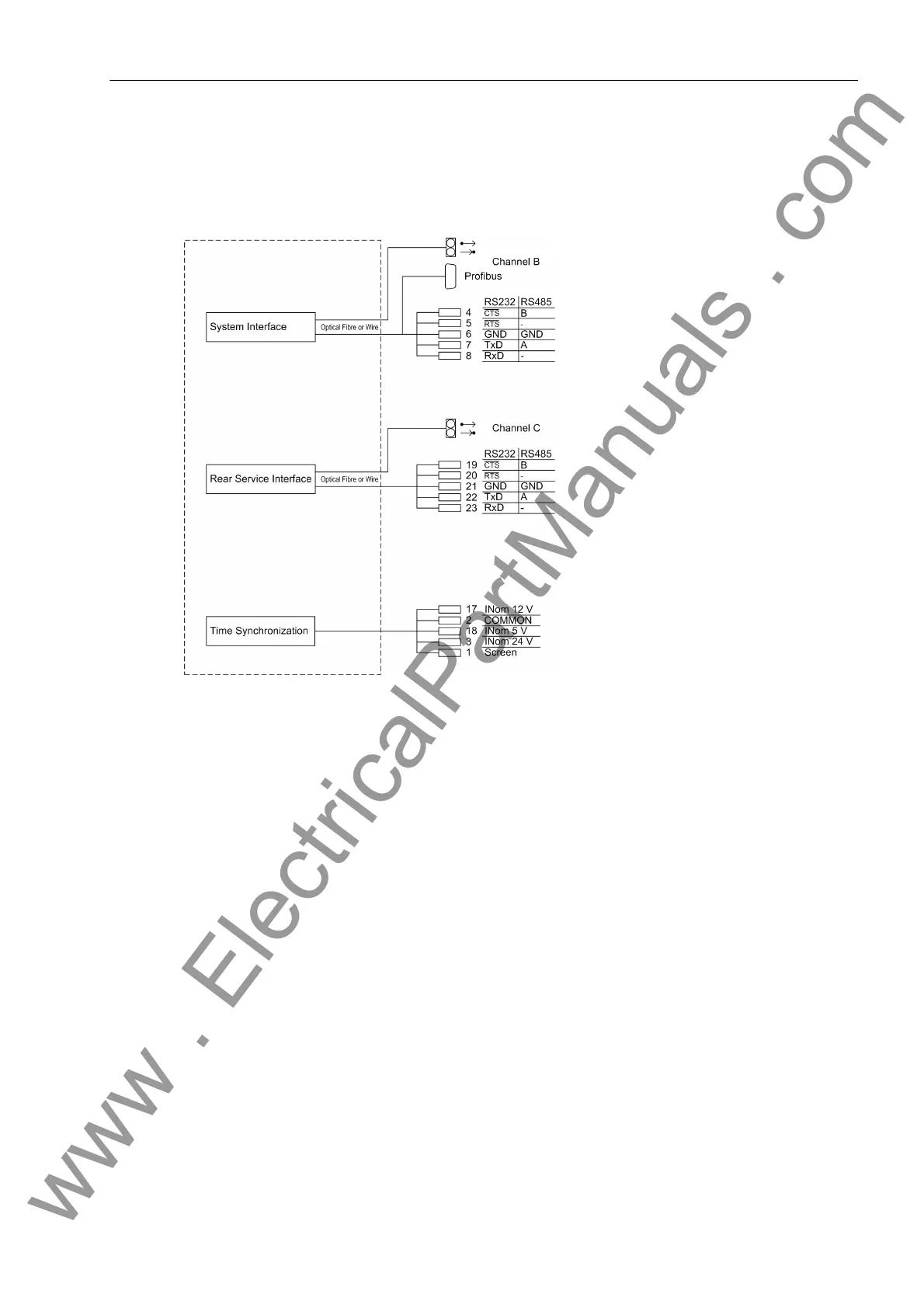

Figure
A-9
General diagram for 7SJ621/2*–*B up
to release ... /CC
(panel surface mounted)
www
.
ElectricalPartManuals
.
