A.2 Terminal Assignments
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
568
7SJ624*-*B

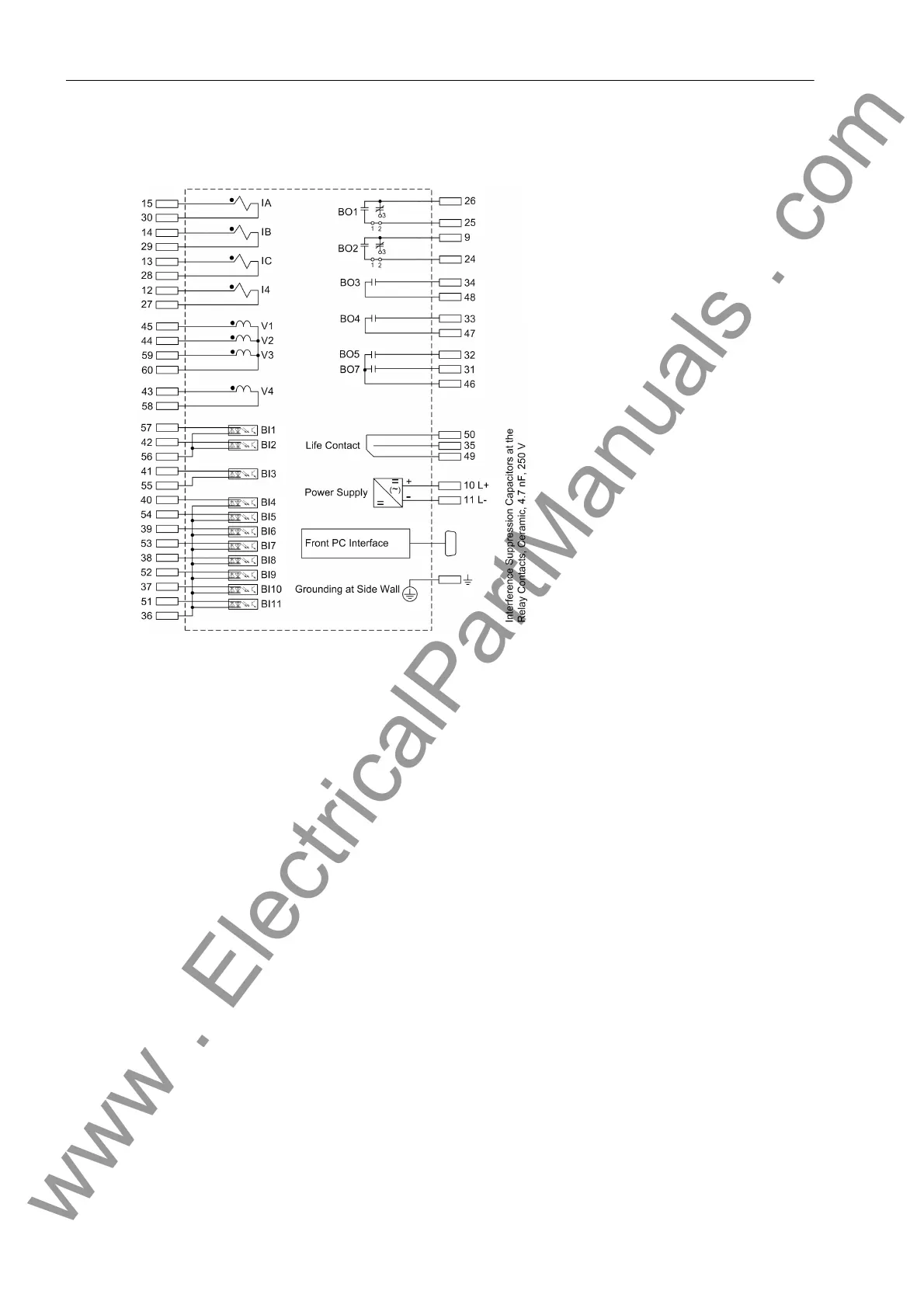

Figure A-8 General diagram for 7SJ624*-*B (panel surface mounted)
Double commands cannot be directly allocated to BO5 / BO7. If these outputs are used for issuing a double
command, it has to be divided into two single commands via CFC.
