2.23.10.4 Display Example
With the help of the Web Monitor, a clear represenation of the most important measurement data of the device
can be achieved. The measurement values can be called via the navigation bar. A list with the desired infor-
mation appears (see Figure 2-139).

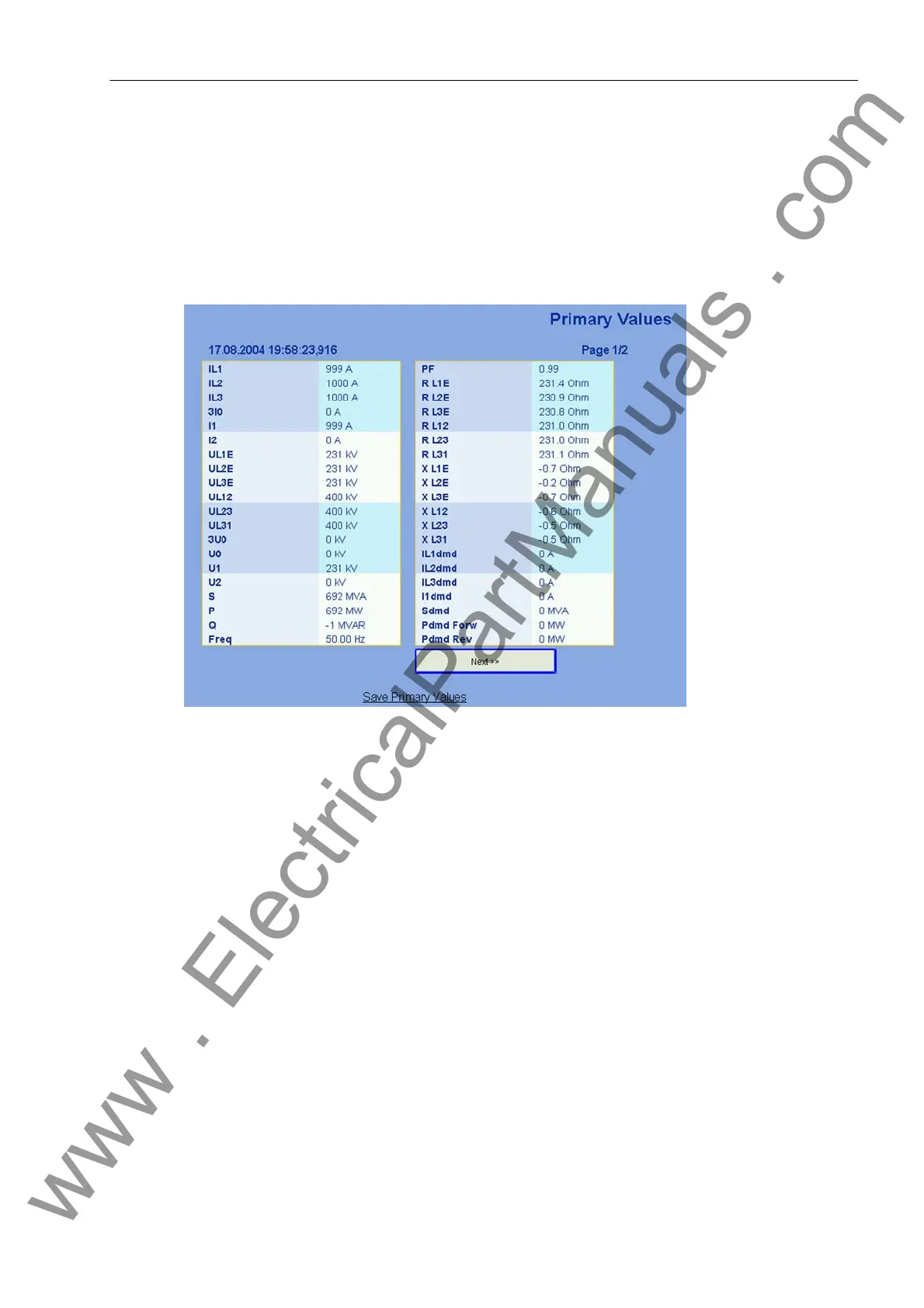

Figure 2-139 Measured values in the Web Monitor - examples for measured values
The currents, voltages and their phase angles derived from the primary and secondary measured values are
graphically displayed as phasor diagrams (see Figure 2-140). In addition to phasor diagrams of the measured
values, the numerical values as well as frequency and device address are indicated.
