Siemens SIPROTEC 7SJ62 - D-Subminiature Connector of Dongle Cable (Panel Flush or Cubicle Door Cutout); Varistor

Technical Data
4.27 Dimensions
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
546
4.27.10 D-Subminiature Connector of Dongle Cable
(Panel Flush or Cubicle Door Cutout)

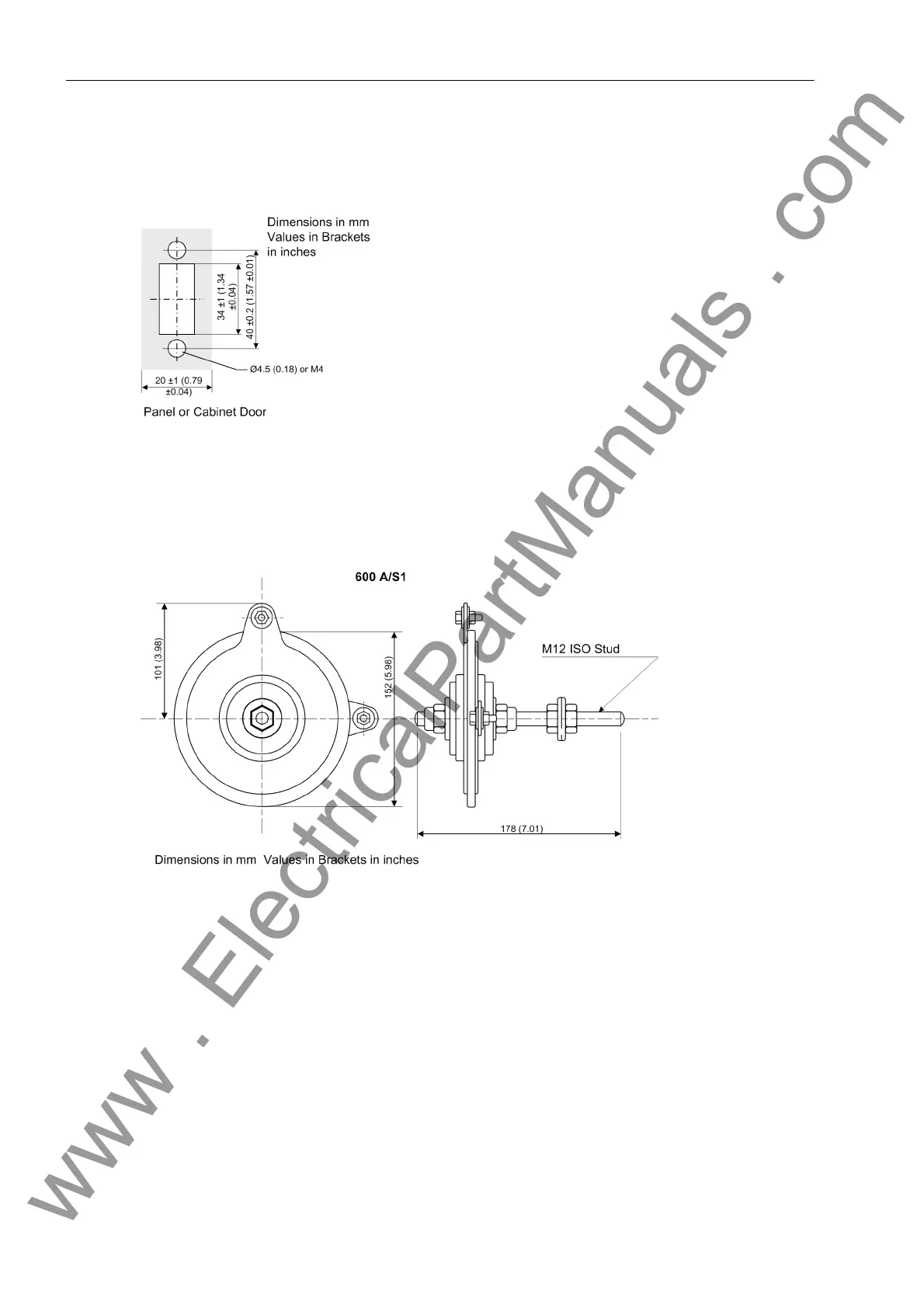

Figure 4-22 Dimensions of panel flush or cubicle door cutout of D-SUB miniature connector of dongle cable
for a 7SJ64 device without integrated operator panel
4.27.11 Varistor
Figure 4-23 Dimensional drawing of the varistor for voltage limiting in high-impedance differential protection
■
