Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
401
Module Arrangement 7SJ64
The following figure shows the arrangement of the modules for devices 7SJ64 with housing size
1
/
3
. The sub-
sequent figures illustrate housing sizes
1
/
2
and
1
/
1
.

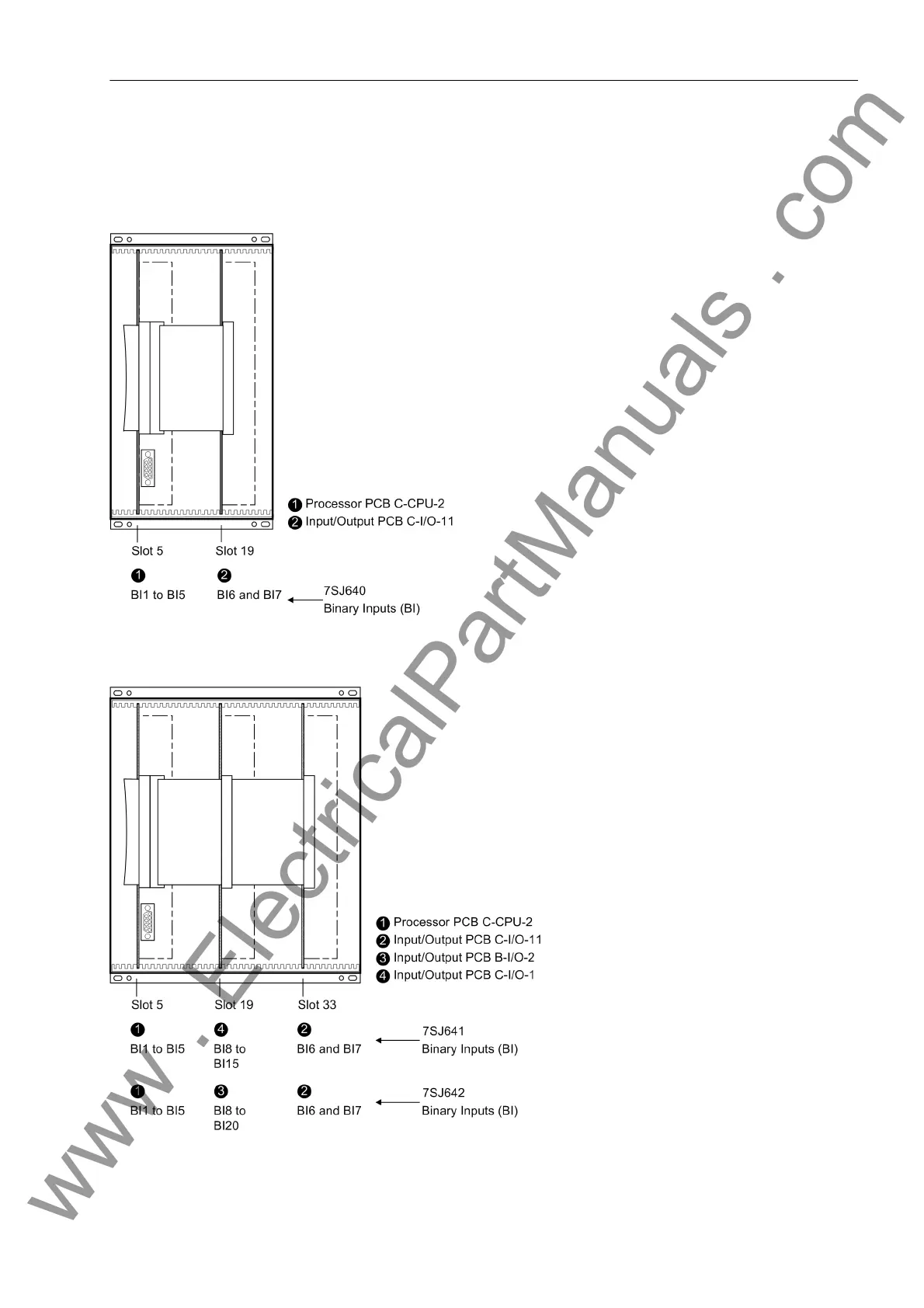

Figure 3-4 Front view with housing size
1
/
3
after removal of the front cover (simplified and scaled down)
Figure 3-5 Front view of the 7SJ64 with housing size
1
/
2
after removal of the front cover (simplified and scaled down)
