Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
429
RS485 Interface
The following figure shows the location of the jumpers of interface RS485 on the interface module.
Interface RS485 can be modified to interface RS232 and vice versa, according to Figure 3-20.

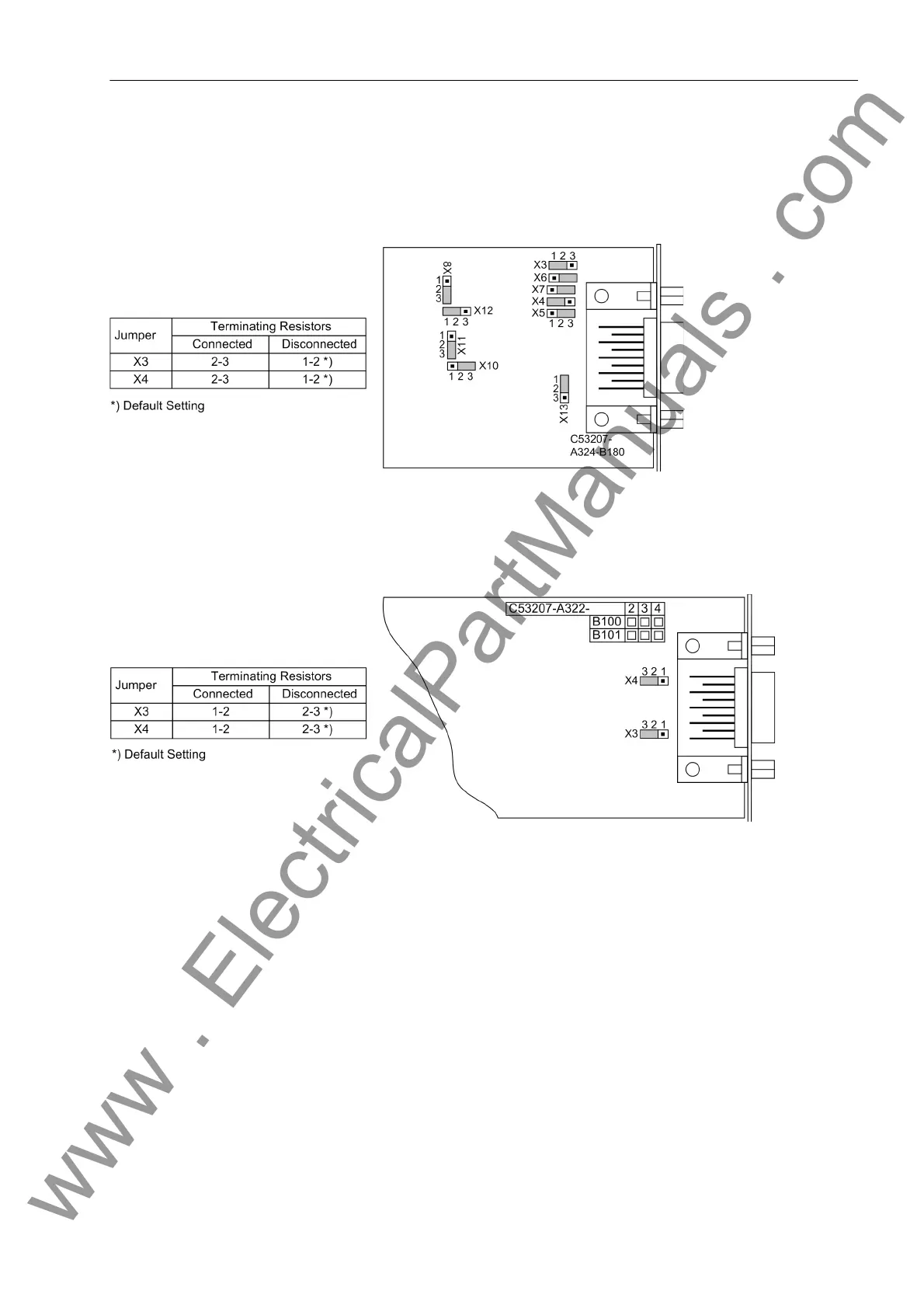

Figure 3-21 Position of terminating resistors and the plug-in jumpers for configuration of the RS485 interface
Profibus (FMS/DP), DNP 3.0/Modbus
Figure 3-22 Position of the plug-in jumpers for the configuration of the terminating resistors at the Profibus (FMS and
DP), DNP 3.0 and Modbus interfaces.
IEC 61850 Ethernet (EN100)
The interface module does not feature any jumpers. Its use does not require any hardware adaptations.
