Technical Data
4.10 Negative Sequence Protection 46-TOC
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
505

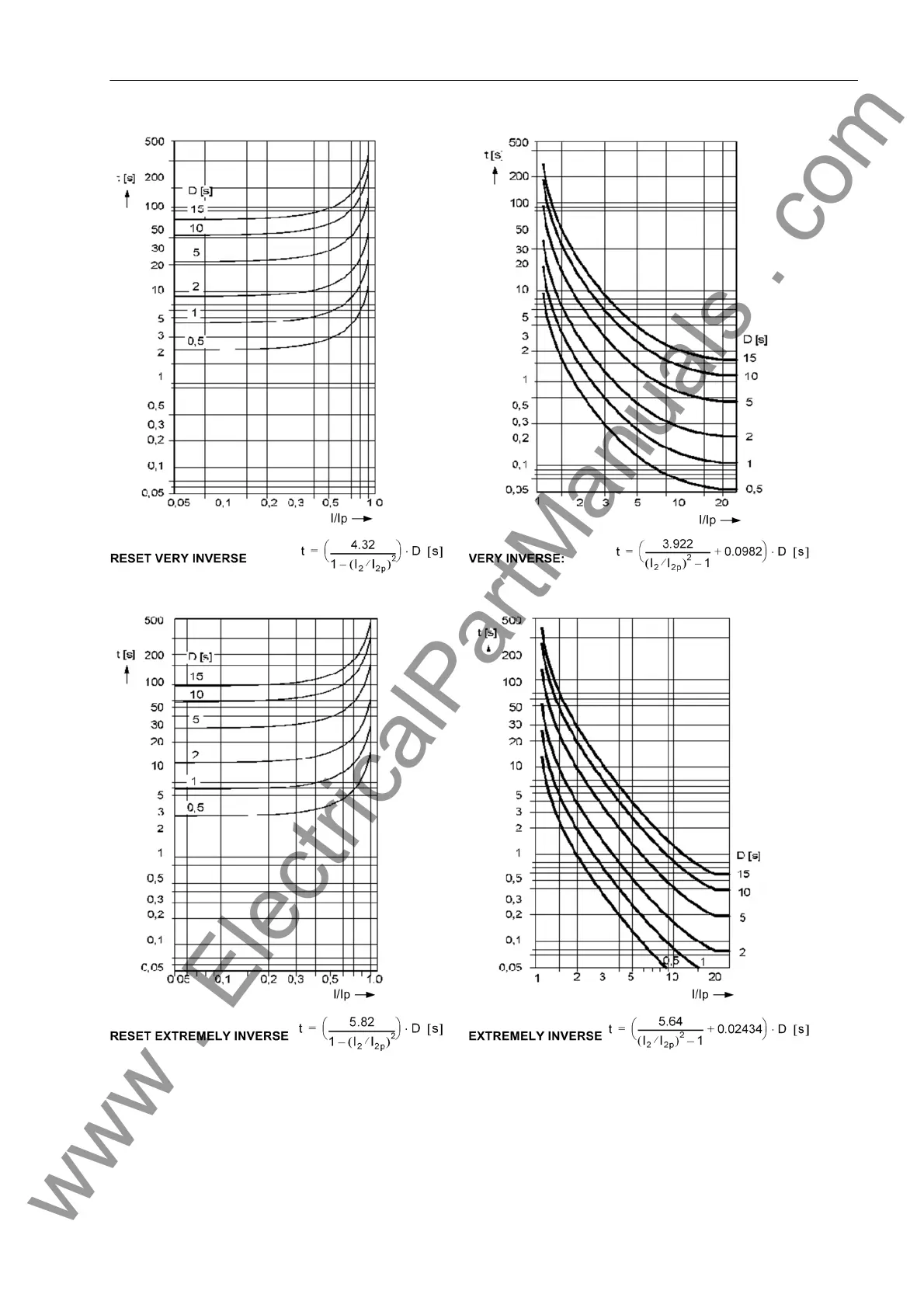

Figure 4-9 Dropout time and trip time characteristics of the inverse time unbalanced load stage, acc. to ANSI
