Technical Data

4.16 Ground Fault Protection 64, 67N(s), 50N(s), 51N(s)

SIPROTEC, 7SJ62/64, Manual

C53000-G1140-C207-2, Release date 01.2008

515

Angle Correction

Logarithmic inverse trip time characteristic

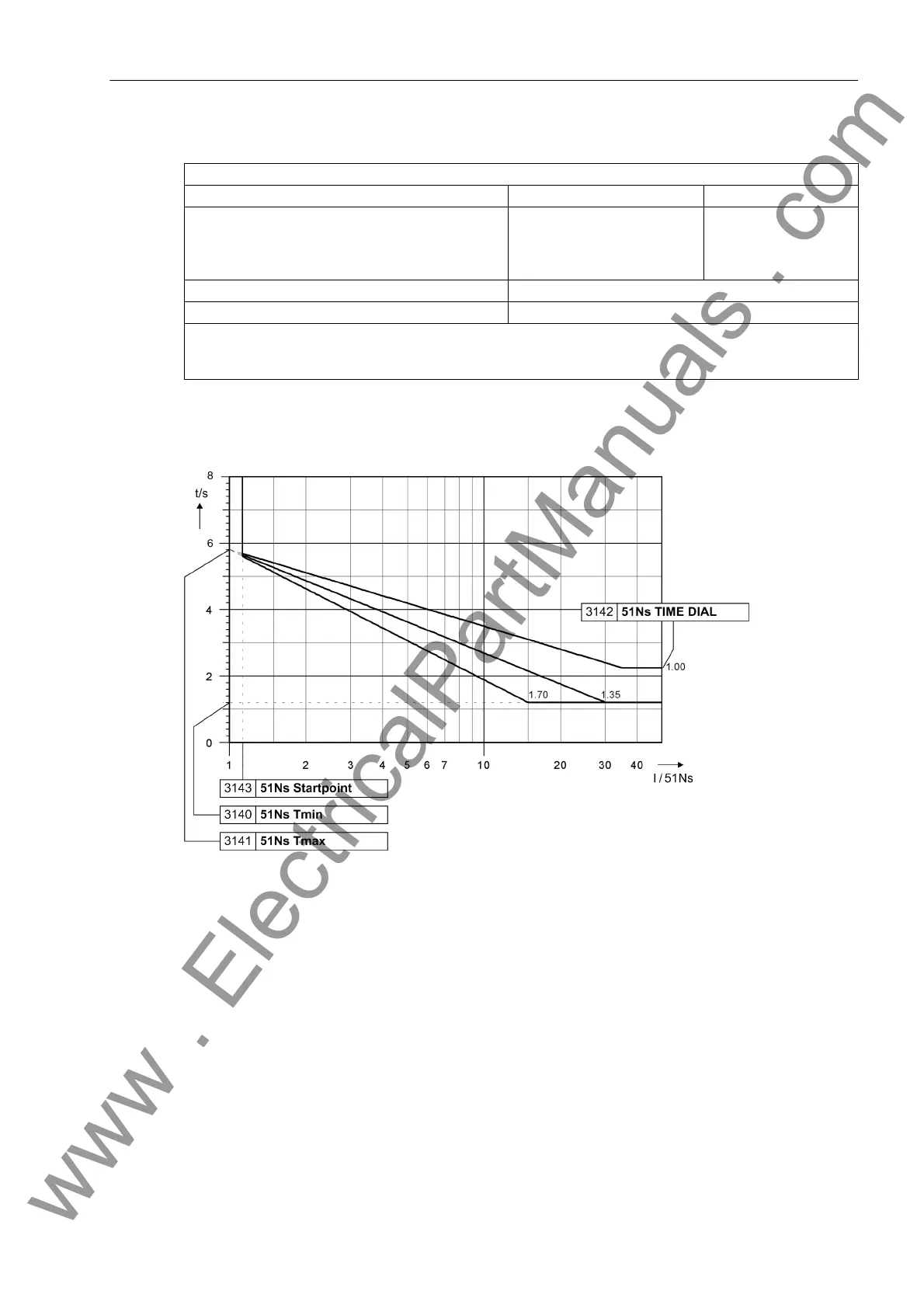

Figure 4-11 Trip time characteristics of inverse time ground fault protection with logarithmic inverse charac-

teristic

Logarithmic inverse t =51Ns Tmax – 51Ns TIME DIAL ·51Ns(I/51Ns PICKUP)

Note: For I/51Ns PICKUP > 35 the time applies for I/51Ns PICKUP = 35; for t < 51Ns Tmin the time 51Ns

Tmin applies.

Angle correction for cable converter in two operating points F1/I1 and F2/I2:

Angle correction F1, F2 (for grounded system) 0.0° to 5.0° Increments 0.1°

Current value I1, I2 for the angle correction

for sensitive transformer

for normal 1-A transformer

for normal 5-A transformer

0.001 A to 1.600 A

0.05 A to 35.00 A

0.25 A to 175.00 A

Increments 0.001 A

Increments 0.01 A

Increments 0.05 A

Measurement Tolerance 2 % of setting value or 1 mA

Angle Tolerance 3°

Note: Due to the high sensitivity the linear range of the measuring input I

with integrated sensitive input trans-

former is from 0.001A to 1.6 A. For currents greater than 1.6 A, correct directionality can no longer be guar-

anteed.
