Appendix
A.2 Terminal Assignments
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
564
7SJ624*-*D/E

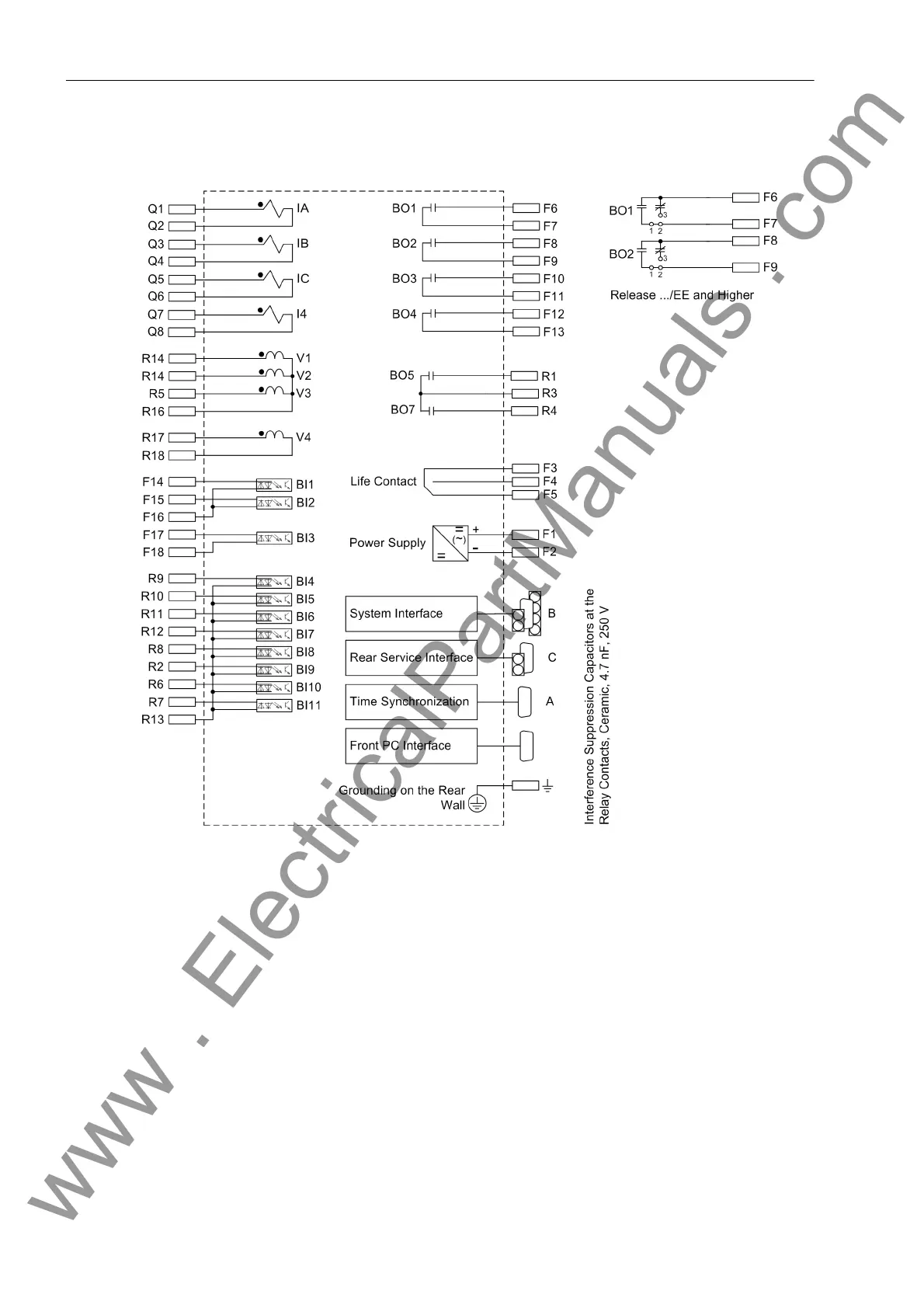

Figure A-4 General diagram 7SJ624*-*D/E (panel flush mounted or cubicle mounted)
Double commands cannot be directly allocated to BO5 / BO7. If these outputs are used for issuing a double
command, it has to be divided into two single commands via CFC.
