Appendix
A.3 Connection Examples
SIPROTEC, 7SJ62/64, Manual
C53000-G1140-C207-2, Release date 01.2008
604

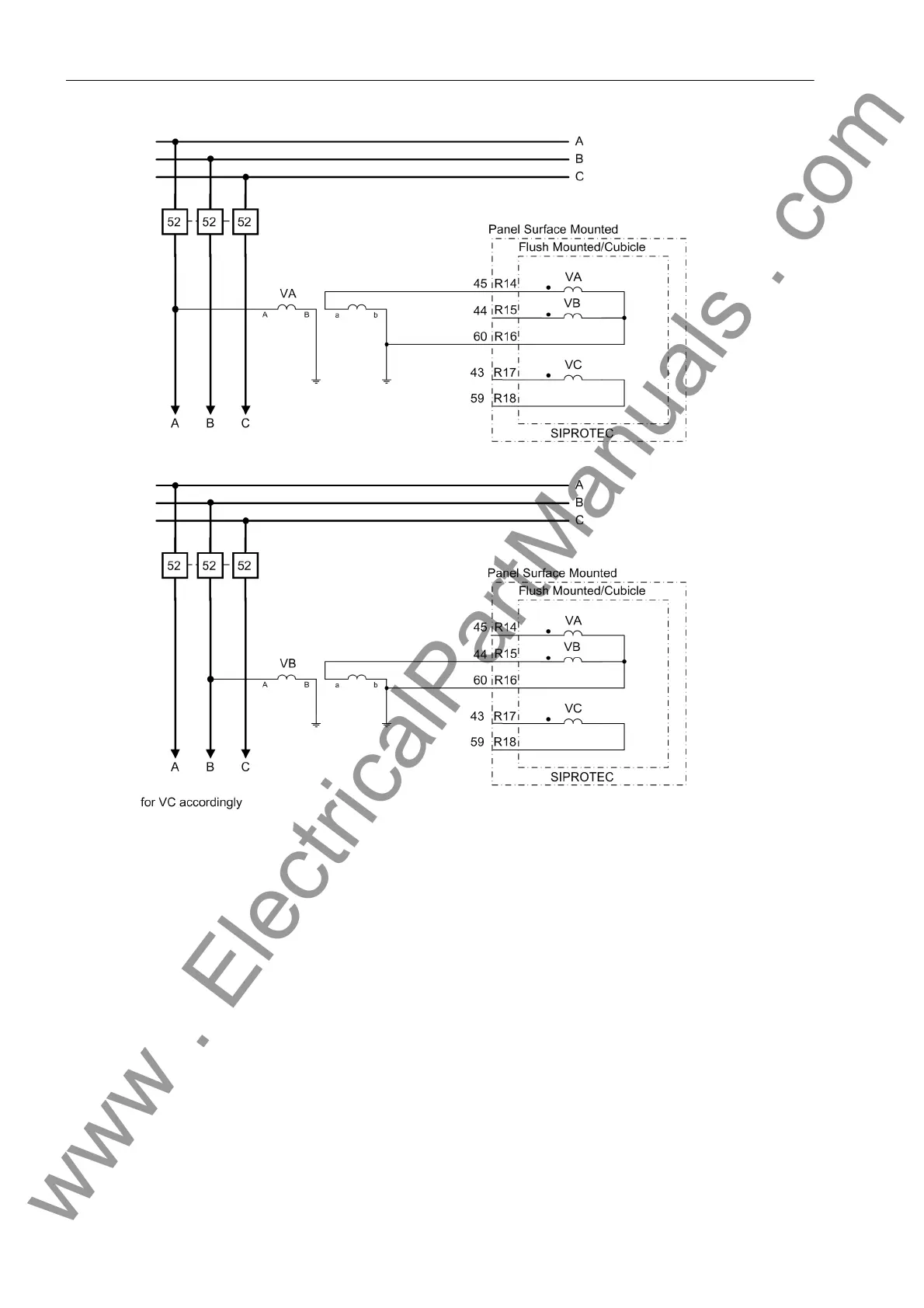

Figure A-47 Connection circuit for single-phase voltage transformers with phase-to-ground voltages
