Configuration
5-77SJ63 Manual
C53000-G1140-C120-1

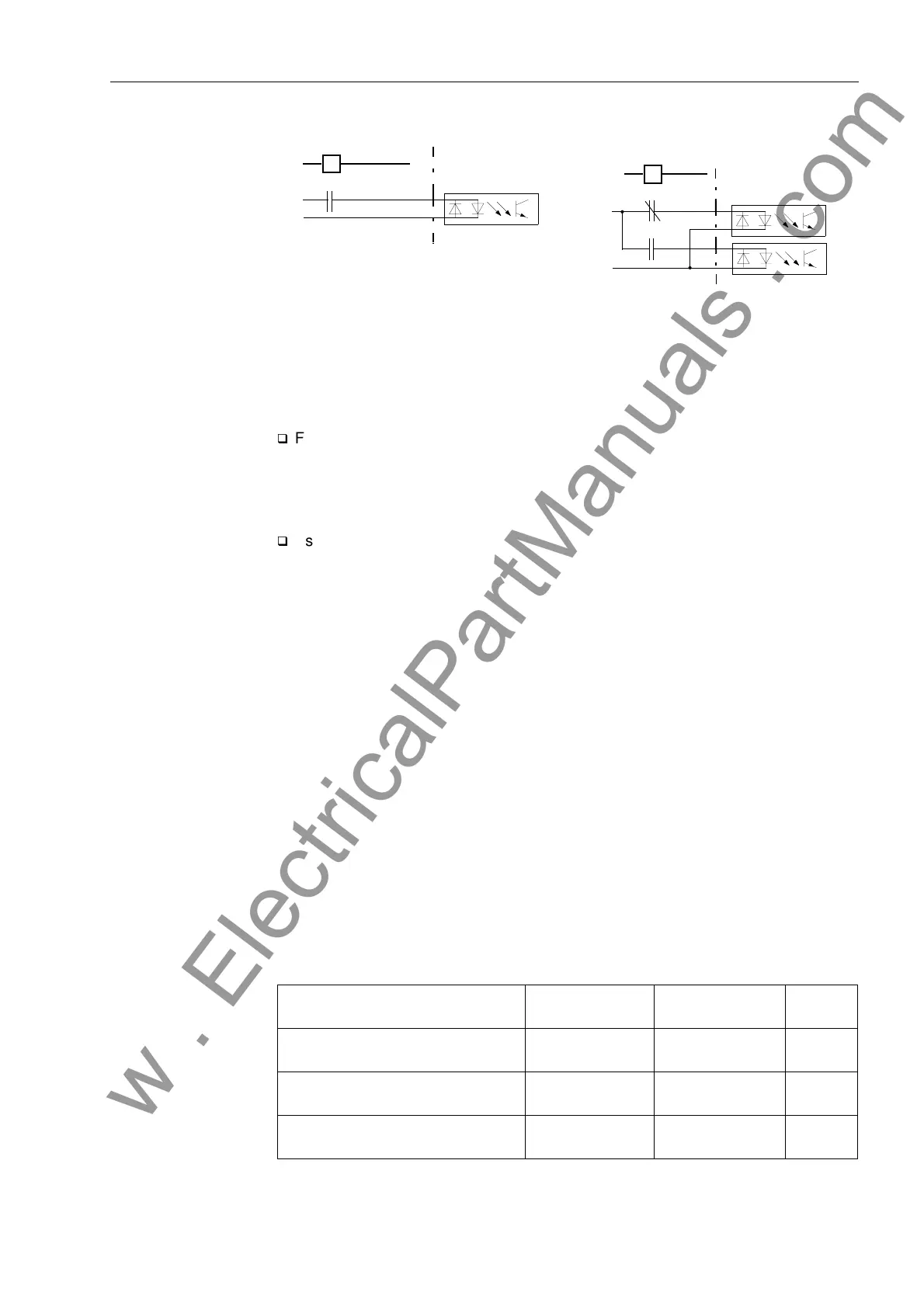

Figure 5-3 Input Indications (SP & DP)
Commands Commands (control actions) are output indications which are specially configured for
the transmission of control signals to switching devices (circuit breakers, etc.).
q
For each device to be controlled, determine if switching is to be done with 1 contact,
1
1
/
2
contacts (single contact and common), or 2 contacts; with a single or double
command; and with or without feedback signals. See Table 5-1 and Figures 5-4 to
5-12. The information to be processed and the command type are determined with
these decisions.
q
Assign the necessary binary inputs and outputs in the SIPROTEC
®
device to the
specific function. Important to note are:
− Messages and commands associated with a switching device must always occu-
py sequential binary inputs and outputs in the SIPROTEC
®
device;
− The TRIP (OFF)–command is always configured prior to the associated CLOSE
(ON)–command;
− Limitations may arise because of the commoning of some binary inputs and out-
puts in the SIPROTEC
®
device.
When the types of commands have been established, DIGSI
®
4 reserves a corre-
sponding number of relay outputs contacts. For this, the corresponding output con-
tacts are numbered consecutively. This must be observed when wiring the relays to
the corresponding equipment to be controlled.
Table 5-1 shows the most important command types. They are made available as op-
tions in the Configuration Matrix for the SIPROTEC
®
device (see also “Binary Outputs
for Switching Devices” in Sub-section 5.2.4). All double commands, with and without
feedback indications, are also available as transformer step commands. The following
Figures 5-4 through 5-12 show time diagrams, control settings, and the sequence of
relay positioning in the configuration matrix for frequently used command types.
V+
V–
Circuit Breaker
V+
V–
Circuit Breaker
Single Point Indication (SP) Double Point Indication (DP)
Binary Input (BI1)
Binary Input (BI 2)
Binary Input (BI 3)
(breaker)
(7SJ63)
(7SJ63)
(breaker)
52
52a
52
52a
52b
Table 5-1 Most Important Command Types
Single Command with Single
Output
With 1 contact without feedback
with feedback
&B6
&)B6
Double Command with Single
Outputs
With 2 contacts without feedback
with feedback
&B'
&)B'
Double Command with Single
Outputs plus Common Output
With 3 contacts without feedback
with feedback
&B'
&)B'
Double Command with Single
Outputs and Common Bus Output
Minimum 3
contacts
without feedback
with feedback
C_D2
CF_D2
