3 Parameterization
3.2 Parameterization with DIGSI
59SIPROTEC 4, Communication Module PROFINET IO, Communication Profile
C53000-L1840-C360-1, Edition 08.2012
The Properties - SIPROTEC device dialog opens (see Figure 3-26).
✧ Configure the order number (MLFB) of your device in the Properties - SIPROTEC device dialog. Next
click OK.

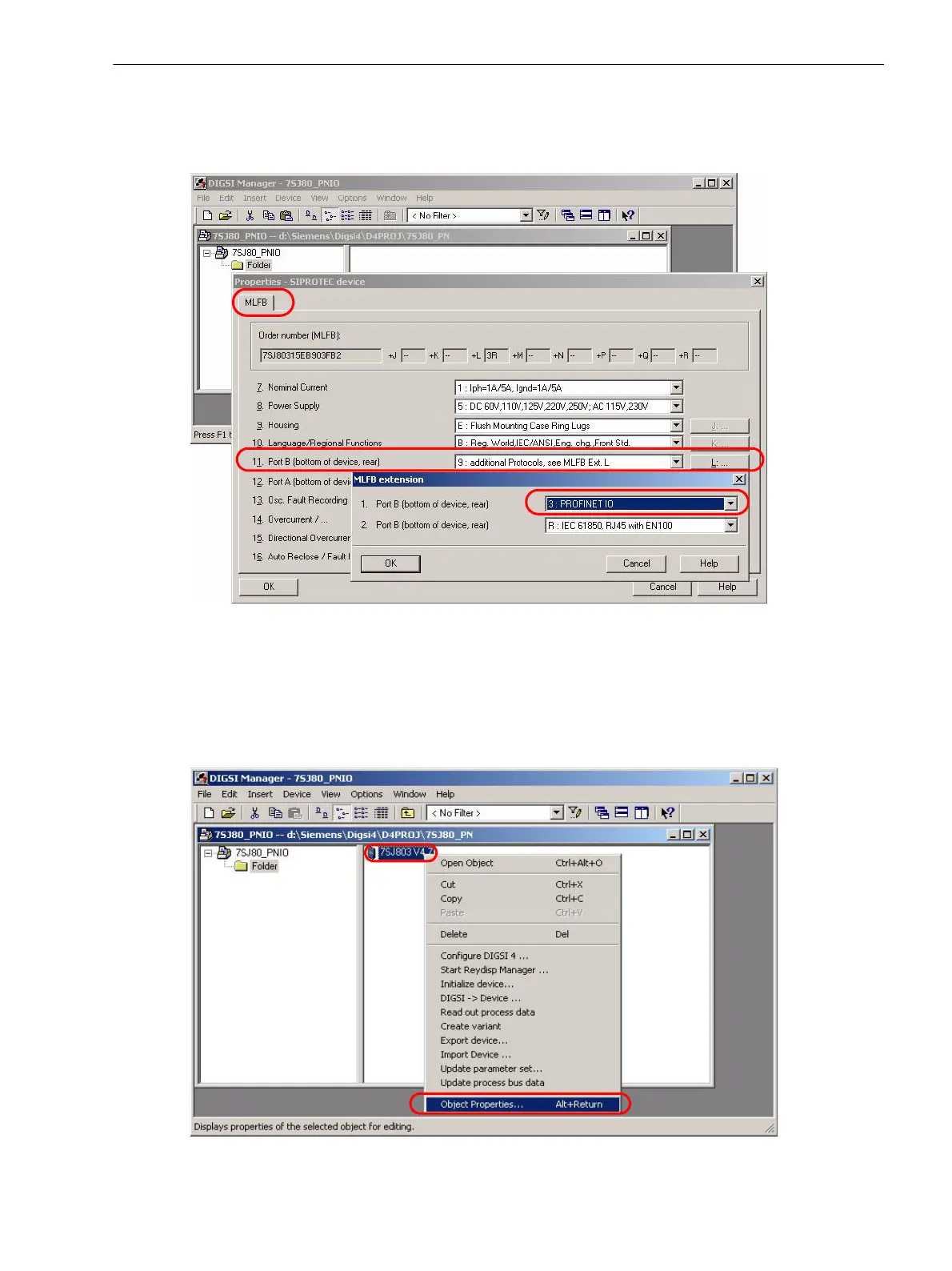

Figure 3-5 Configuring the Order Number (MLFB)
If you have retrofitted the SIPROTEC device or if you want to subsequently install the PROFINET IO protocol,
proceed as follows:
✧ In DIGSI Manager, right-click the selected SIPROTEC device (e.g. 7SJ803 V4.7) and then click Object
properties....
Figure 3-6 Selecting the Object Properties
com_profinet-io_profile_us.book Page 59 Friday, August 17, 2012 1:40 PM
