3 Parameterization
3.2 Parameterization with DIGSI
61SIPROTEC 4, Communication Module PROFINET IO, Communication Profile
C53000-L1840-C360-1, Edition 08.2012
An IEC 61850 station is inserted in the window of DIGSI Manager.
✧ In DIGSI Manager, right-click the IEC 61850 station and select the menu item Object properties....
The Properties - IEC61850 station dialog opens.
✧ Select a device from the Available IEC61850 devices: in the Properties - IEC61850 station dialog →
Communicators tab and click Add.
The selected device is moved from the Available IEC61850 devices: window into the
IEC61850 station communicators: window.

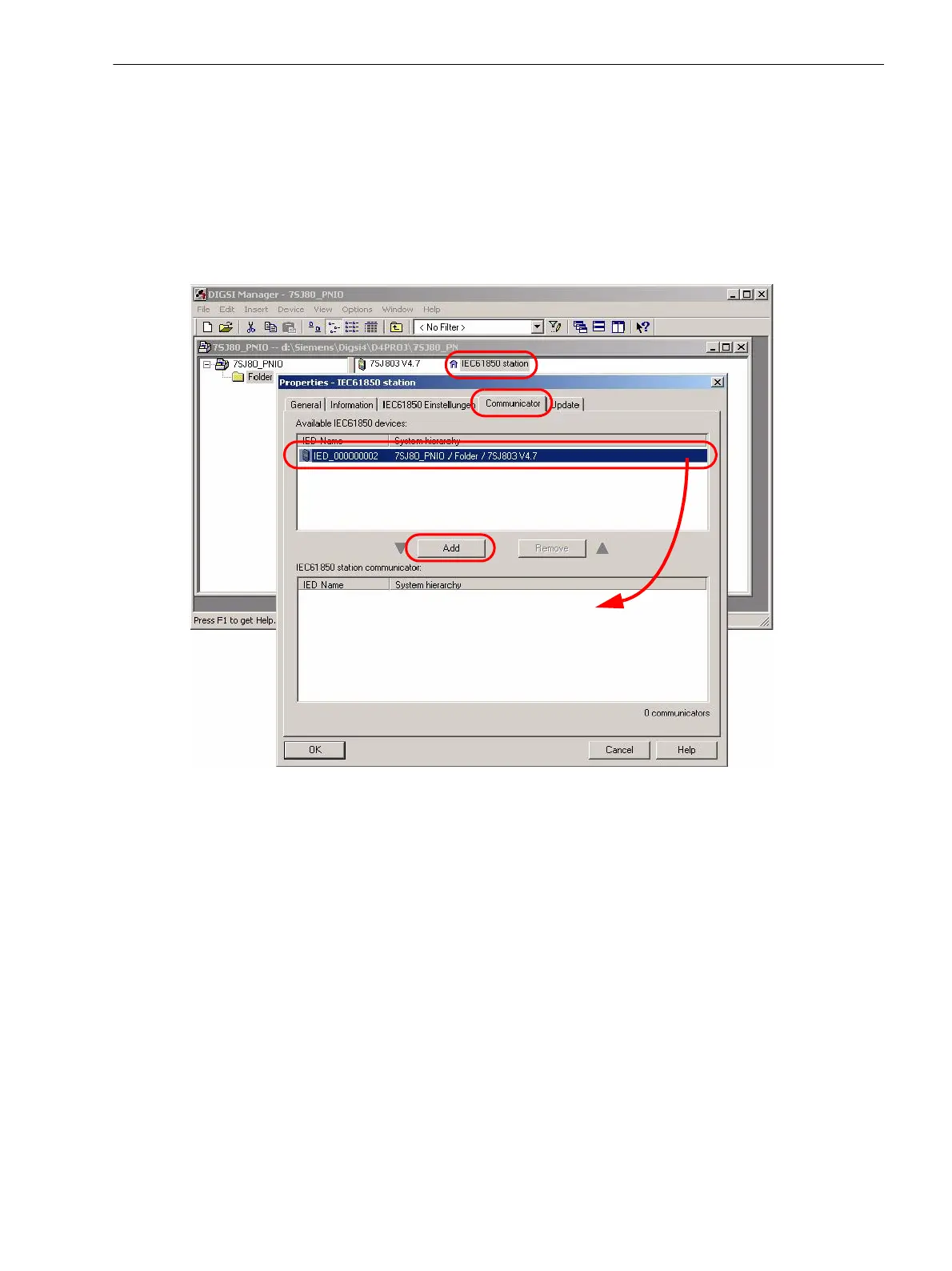

Figure 3-9 Selecting the Communicator
✧ Click OK.
com_profinet-io_profile_us.book Page 61 Friday, August 17, 2012 1:40 PM
