3 Parameterization
3.2 Parameterization with DIGSI
67SIPROTEC 4, Communication Module PROFINET IO, Communication Profile
C53000-L1840-C360-1, Edition 08.2012
Destination System Interface
Routing to the destination system interface is possible for the following information types:
• SP Single-point indications
• DP Double-point indications
• OUT Output indications
• IntSP Internal single-point indications (markers)
• IntDP Internal double-point indications (markers)
• MV Measured values
• PMV Pulse metered values
• MVMV Metered values, derived from measured values
• VI Value Indication; DIGSI data type for statistic values
Adding or deleting an information item as source or destination system interface is accomplished by setting/
removing the 'X' in the System interface column (context menu when clicking the right mouse button).

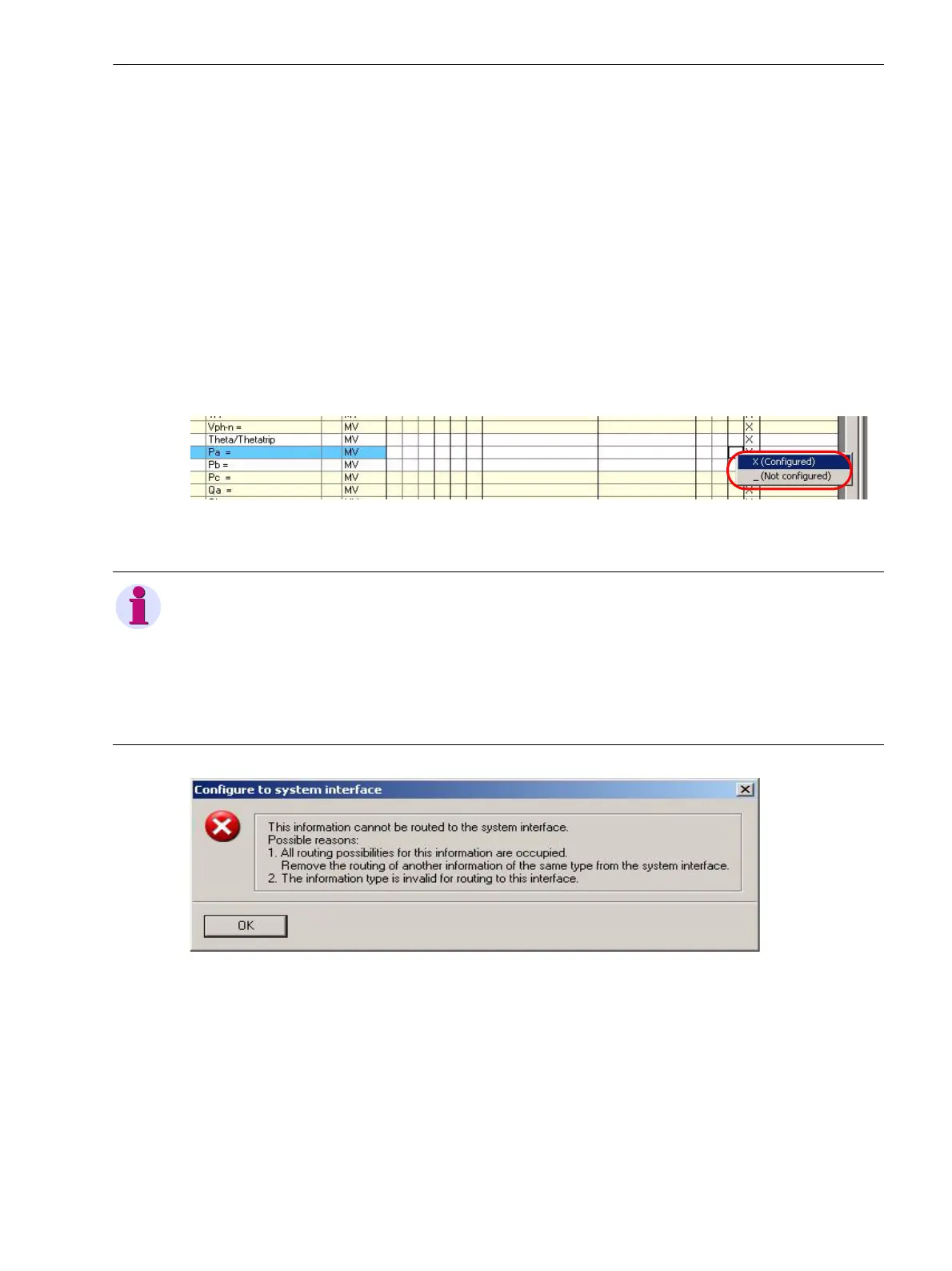

Figure 3-16 Context Menu in the Destination System Interface Column
Figure 3-17 Error Indication
NOTE
• The maximum number of routable objects of an information type depends on the selected mapping file.
To transmit, for example, a measured value that is not routed by default in the mapping file via
PROFINET IO, first remove an already routed measured value from the system interface to make the
space available in the PROFINET IO telegram.
• If all routing options of an information type are occupied, an error indication is displayed (see Figure 3-17)
if you try to route more information of this type.
