3 Parameterization
3.2 Parameterization with DIGSI
70 SIPROTEC 4, Communication Module PROFINET IO, Communication Profile
C53000-L1840-C360-1, Edition 08.2012
Time Synchronization
✧ If the project requires time synchronization with NTP, double-click Time Synchronization.

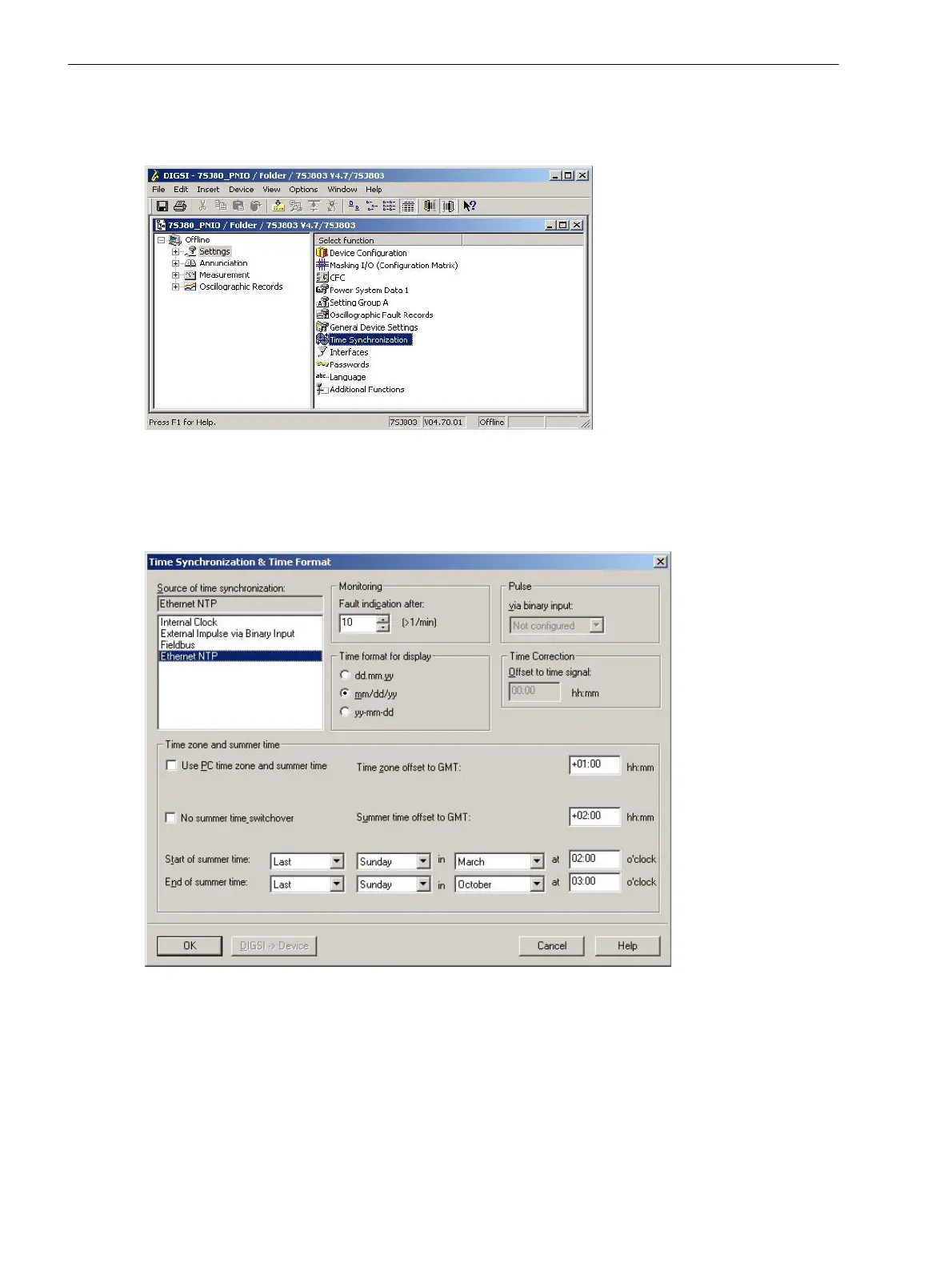

Figure 3-20 Opening the Time Synchronization
The Time Synchronization & Time Format dialog opens.
✧ Select the Ethernet NTP entry in the Source of time synchronization field and set the desired
parameters.
Figure 3-21 Setting the Time Synchronization
✧ Click OK to confirm.
✧ Close the SIPROTEC device and confirm that you want to save the modified data.
✧ Close the Report window.
✧ Double-click IEC61850 station in DIGSI Manager.
com_profinet-io_profile_us.book Page 70 Friday, August 17, 2012 1:40 PM
