3 Parameterization
3.2 Parameterization with DIGSI
72 SIPROTEC 4, Communication Module PROFINET IO, Communication Profile
C53000-L1840-C360-1, Edition 08.2012
✧ Close the System Configurator and confirm saving of the IEC61850 station settings with OK.
Synchronization via NTP
✧ The following steps are only necessary if synchronization via NTP is required. In this case, time
synchronization is performed via one or 2 time servers. A second time server makes the time
synchronization redundant.
− Right-click the folder and open the Import device dialog via Insert new object → Other IEC61850
User.
− Search for the sntp.icd file in the DIGSI folder and click OK.
(example (x = hard disk directory): x:\Siemens\Digsi4\SysKon\ICD\sntp.icd)
TEMPLATE is inserted in the DIGSI Manager window.
− Rename TEMPLATE to NTP Server.
− In DIGSI Manager, right-click the IEC61850 station and select the Object properties... entry in the
menu.
− Select a device from the Available IEC61850 devices in the Properties - IEC61850 station dialog
→ Communicator tab and click Add.

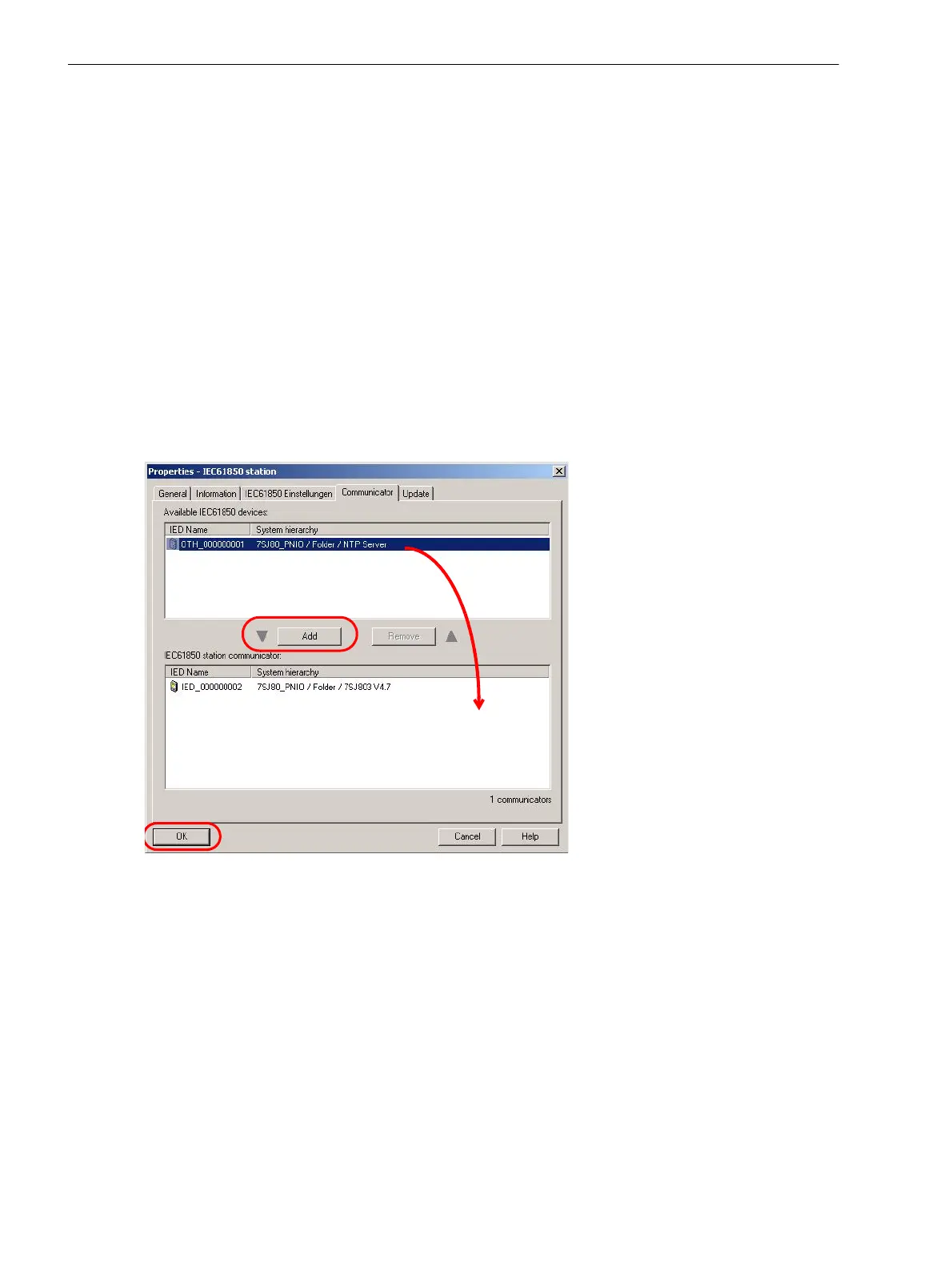

Figure 3-24 Adding an NTP Server
The selected device is moved from the Available IEC61850 devices window into the IEC61850
station communicator window.
− Click OK.
− Double-click IEC61850 station in DIGSI Manager.
