3 Parameterization
3.2 Parameterization with DIGSI
73SIPROTEC 4, Communication Module PROFINET IO, Communication Profile
C53000-L1840-C360-1, Edition 08.2012
The System Configurator opens with the IEC61850 station application.
− Drag and drop the NTP server entered under New devices (1) into the Subnet1 folder.

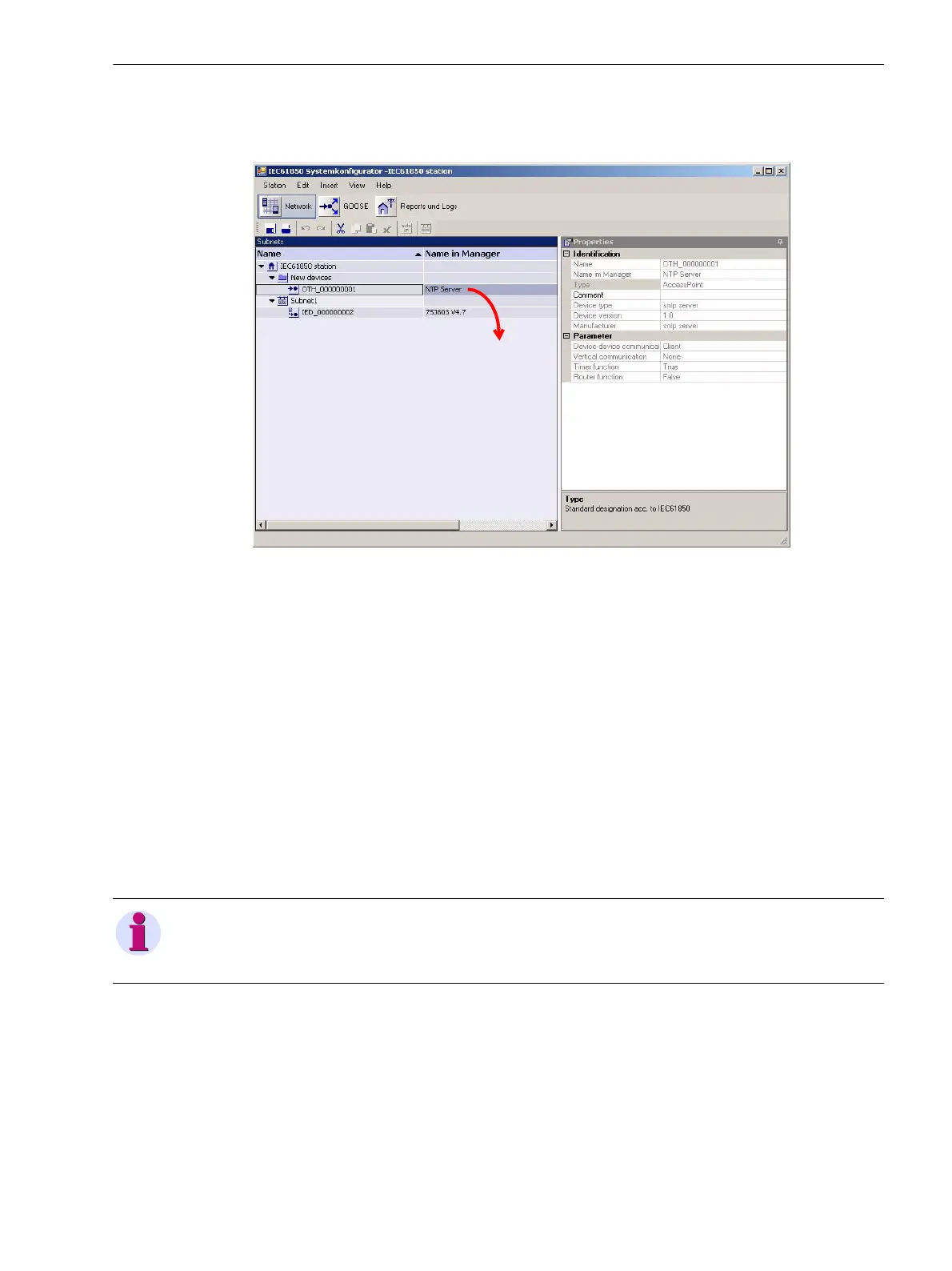

Figure 3-25 Integrating the NTP Server in Subnet1
− Click NTP server and enter the IP address under Parameter in the Properties window (right
window). Change the subnet mask and the standard gateway, if necessary.
− Close the System Configurator and confirm saving of the IEC 61850 station settings with OK.
✧ In DIGSI Manager, right-click the IEC61850 station and select the Object properties... entry in the menu.
✧ In the Properties - IEC61850 station dialog, select the Update tab and update the parameter set using
the Update all parameter sets button.
✧ Close the Report window.
Parameterizing the Device Functions
✧ Open the SIPROTEC device from the DIGSI user interface.
✧ Enter all desired settings in the DIGSI user interface (see Figure 3-12)..
✧ Save the parameter set and then close the device on the DIGSI user interface.
NOTE
The DIGSI manual describes these settings, e.g. protection settings, CFC charts and routings to binary inputs/
outputs or LEDs.
