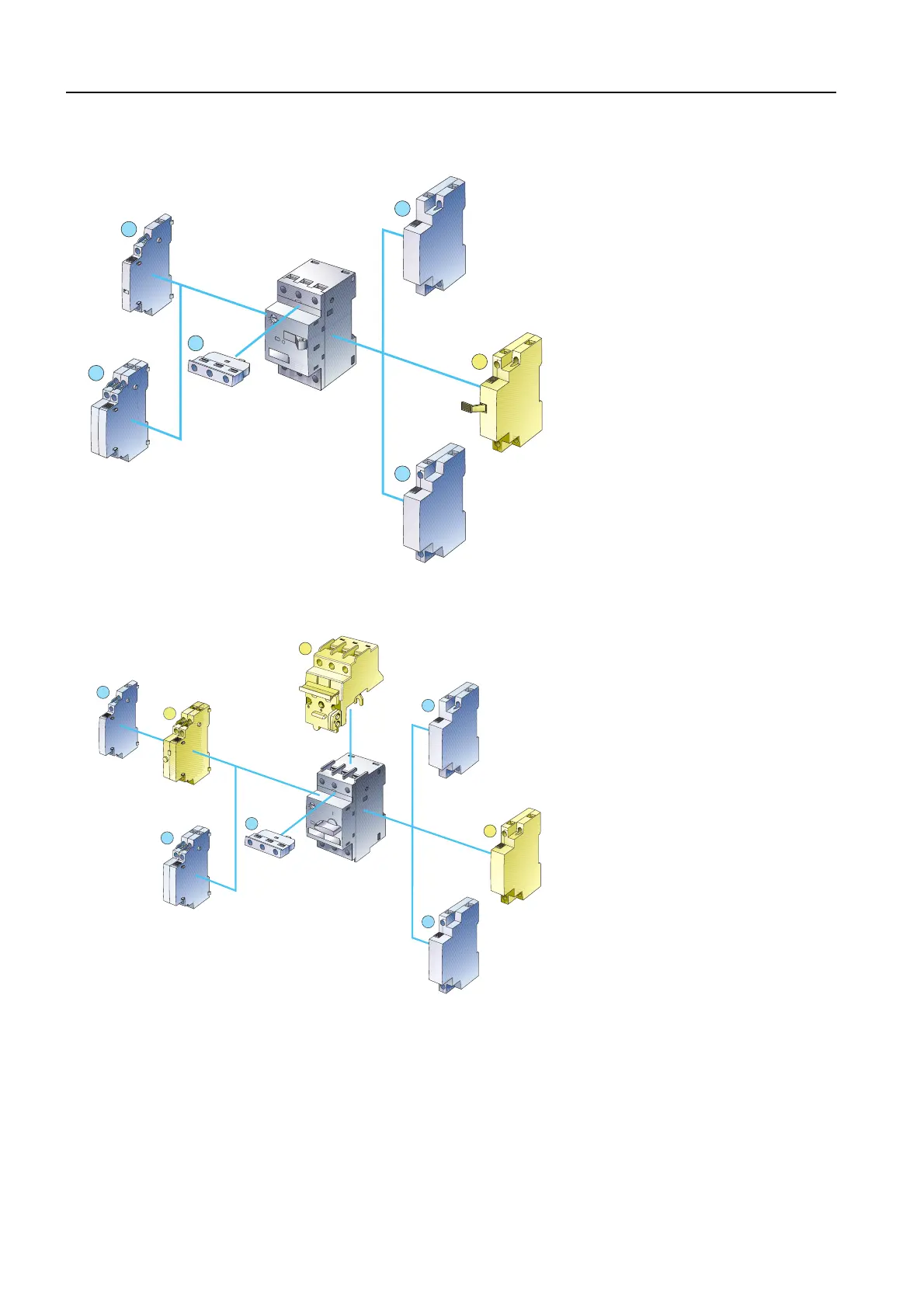

Circuit breaker with a frame size of S00 and attachable accessories
:
Figure 1-2: Circuit breaker, accessories (frame size S00)
Circuit breakers with frame sizes of S0, S2, and S3 and attachable accessories:
Figure 1-3: Circuit breakers, accessories (frame sizes S0, S2, and S3)
Attachable accessories for frame sizes S00, S0, S2, and S3:
1) Transverse auxiliary switch
2) Lateral auxiliary switch with 2 contacts
3) Lateral auxiliary switch with 4 contacts
4) Shunt release
5) Undervoltage release
6.1)Undervoltage release with leading auxiliary contacts (S00)
6.2)Undervoltage release with leading auxiliary contacts (S0 to S3)
7) Alarm switch (S0 to S3)
8) Disconnecting module (S0 and S2)
NSB00005c
3
5
4
6.1
1
2
NSB00006c
3
5
4
8
1
2
7
6.2
