3RV1 circuit breaker
SIRIUS System Manual
GWA 4NEB 430 0999-02b
2-47
Mounting the solder-
ing pin adapters
The soldering pin adapters are clamped above and below in the screw-type
terminals of the circuit breakers. Alternatively, the power supply can be
taken to the printed circuit boards via cables.

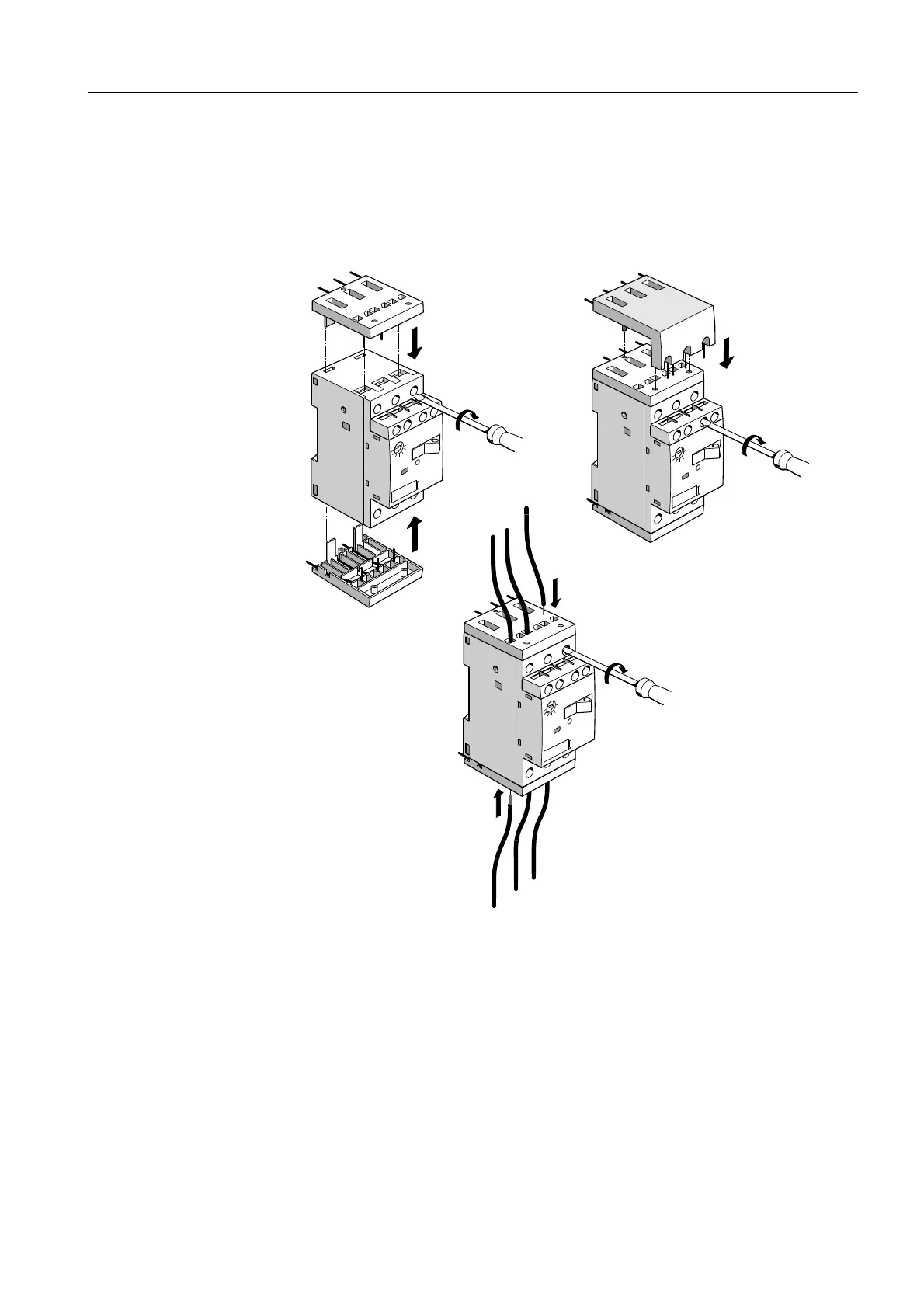

Figure 2-33: Circuit breaker, soldering pin connector (frame size S00)
1
1
1
1
2
4
3
2
