3RA1 fuseless load feeders
SIRIUS System Manual
5-4
GWA 4NEB 430 0999-02b
5.2.1 Mounting systems
The possible types of mounting are as follows:
• On a 35 mm rail in acc. with DIN EN 50 022
• Screw-on attachment by means of the attachment openings integrated in
the rail adapter
• On busbar systems with a busbar center-to-center clearance of 40 mm or
60 mm

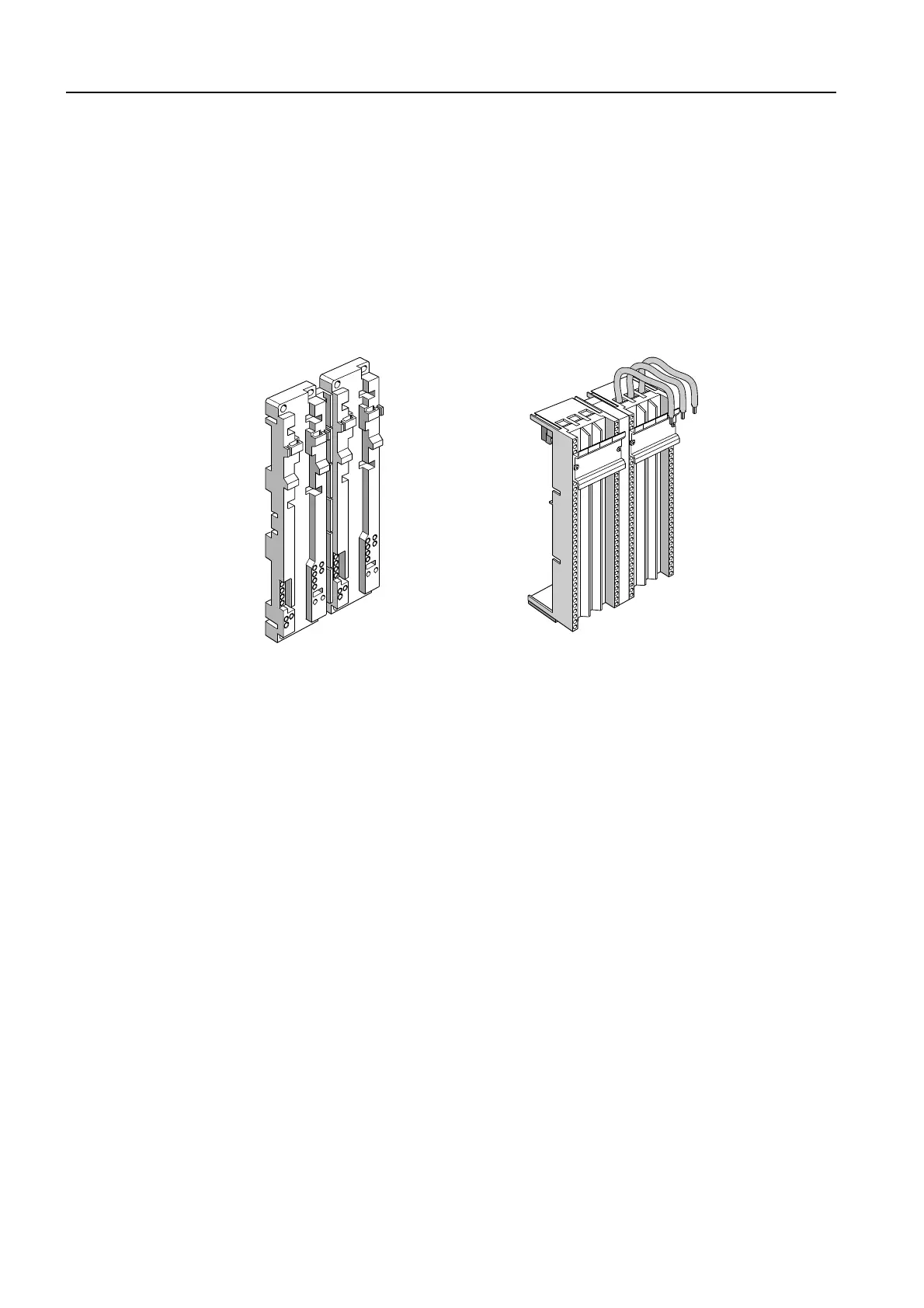

The following illustrations show the adapters for rail and busbar mounting:
Rail adapter Busbar adapter
Figure 5-1: Rail adapter/busbar adapter
